We now stock a new range of general-purpose project enclosures from Camdenboss, offering you a wide range of sizes and styles to fit your project.

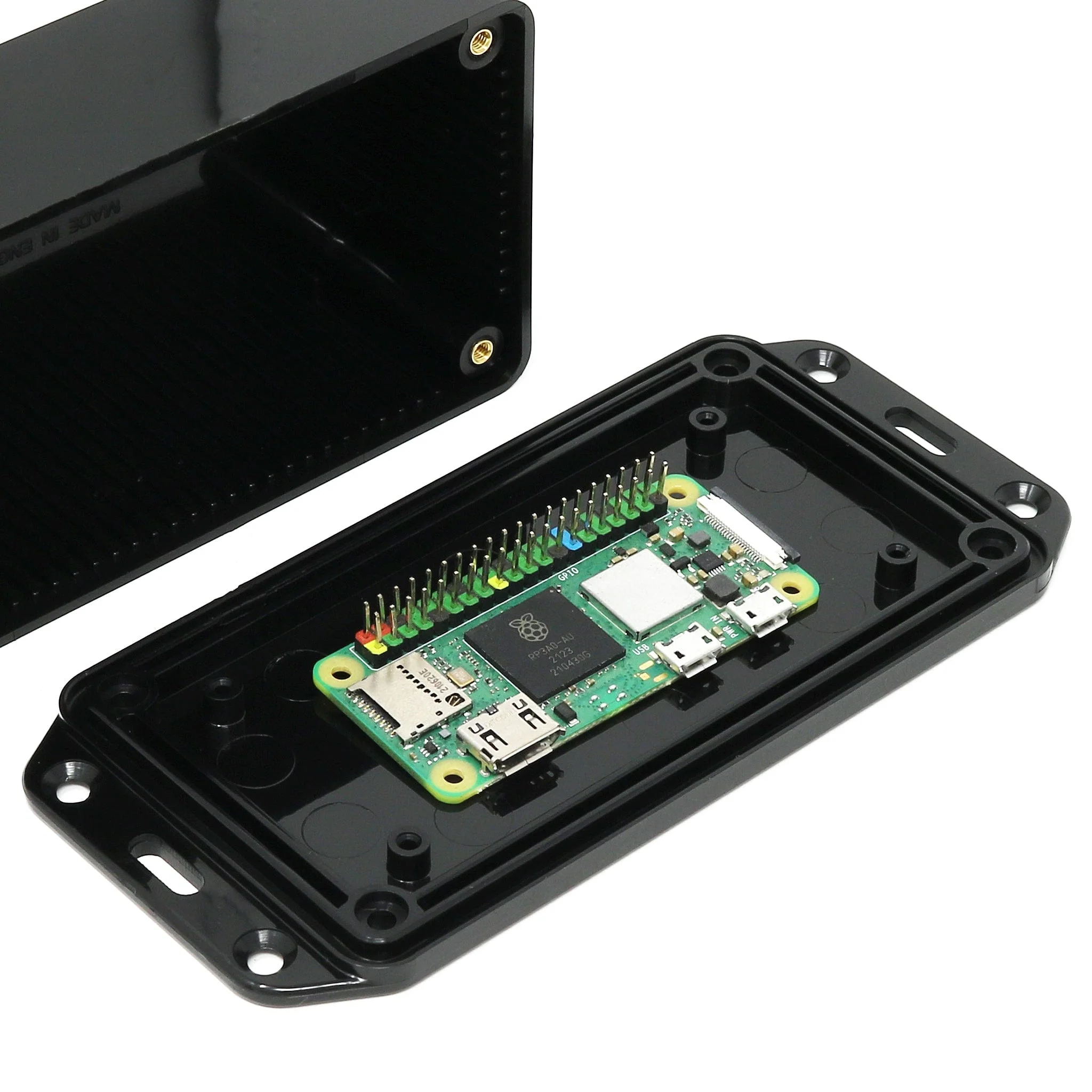

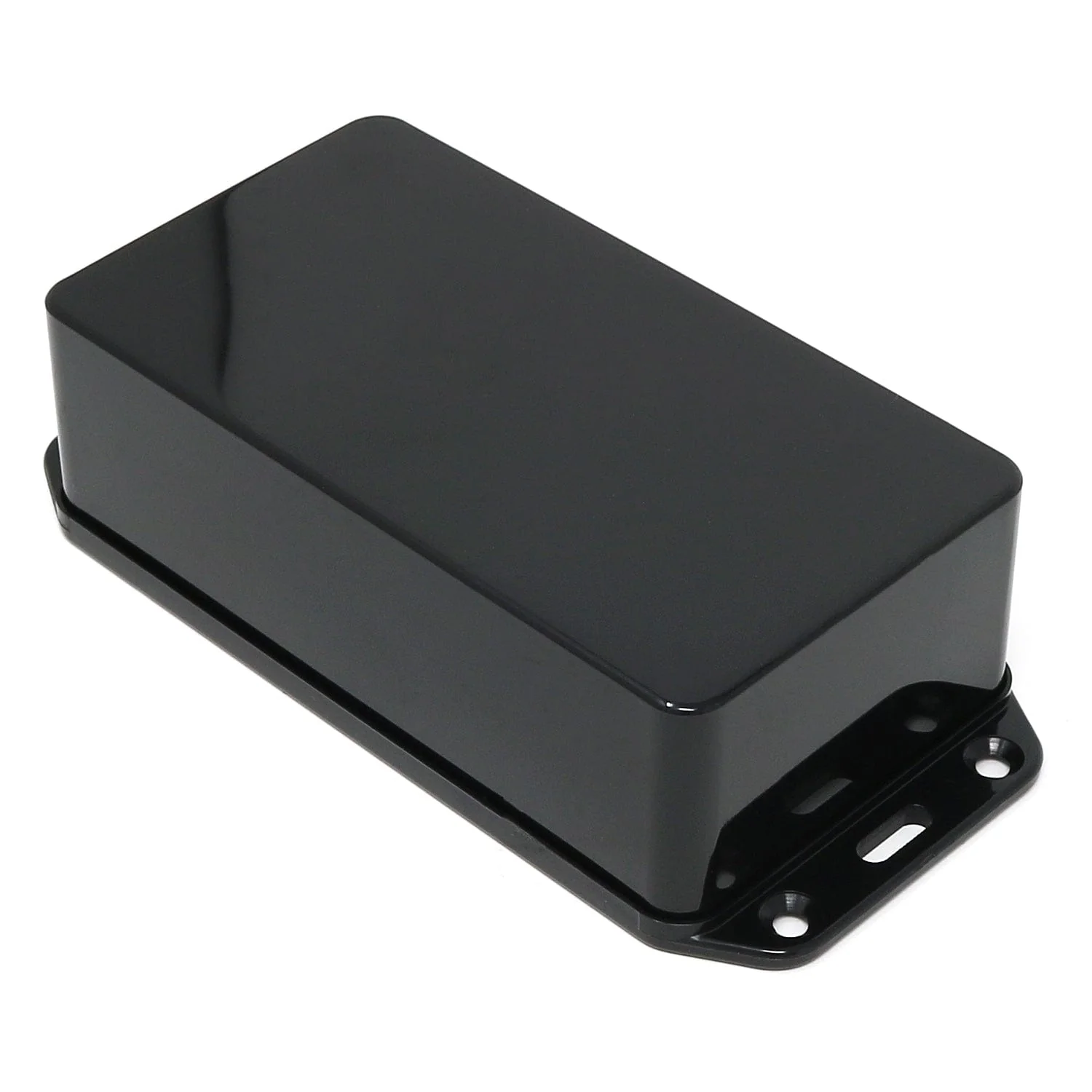

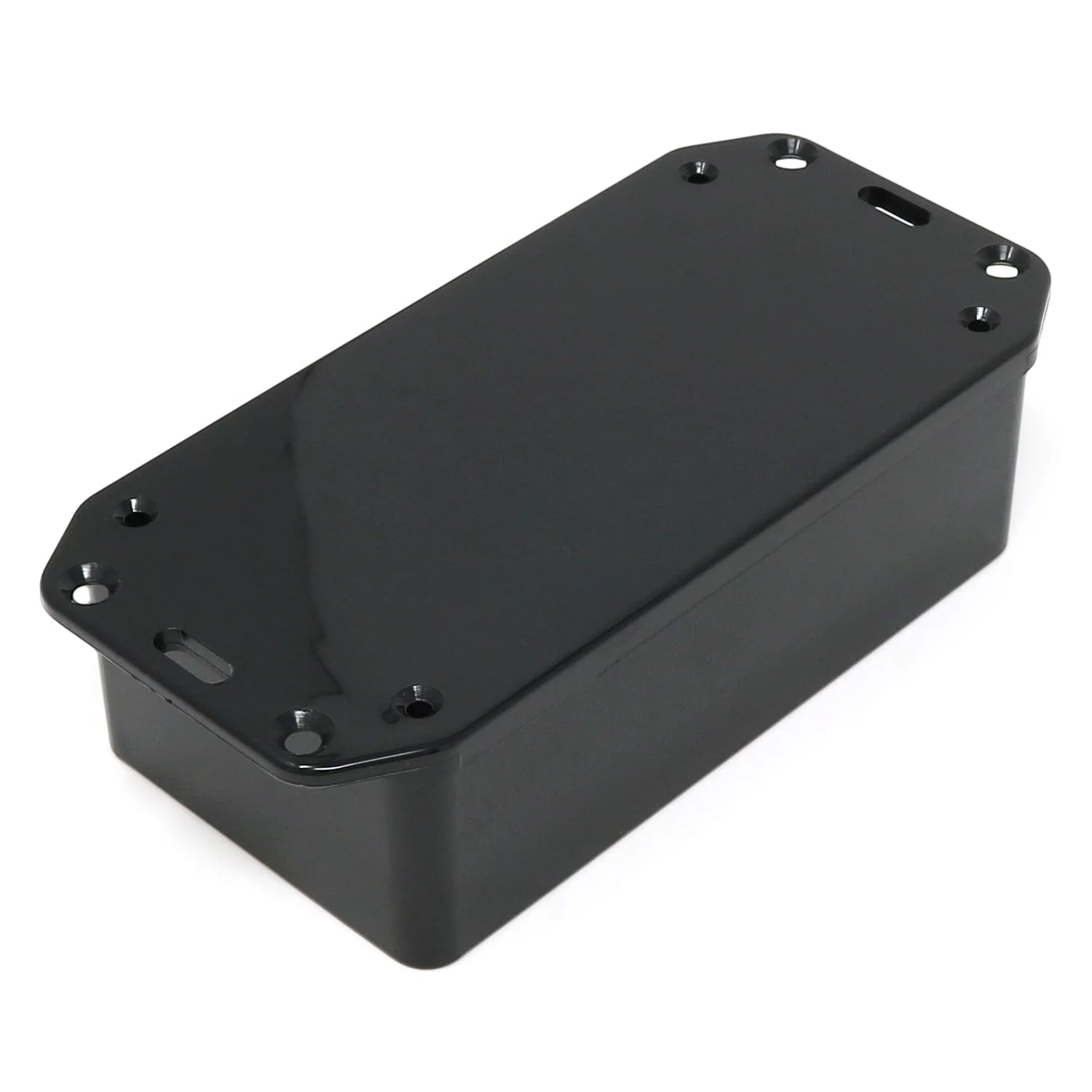

This enclosure is the Camdenboss BIM2004/IP which measures 143mm long, 67mm wide and 41mm high and comes with flanges. If you take a look at the product images, we've included a shot showing the Raspberry Pi Zero 2 to give you a 'real' idea of the size of this project box.

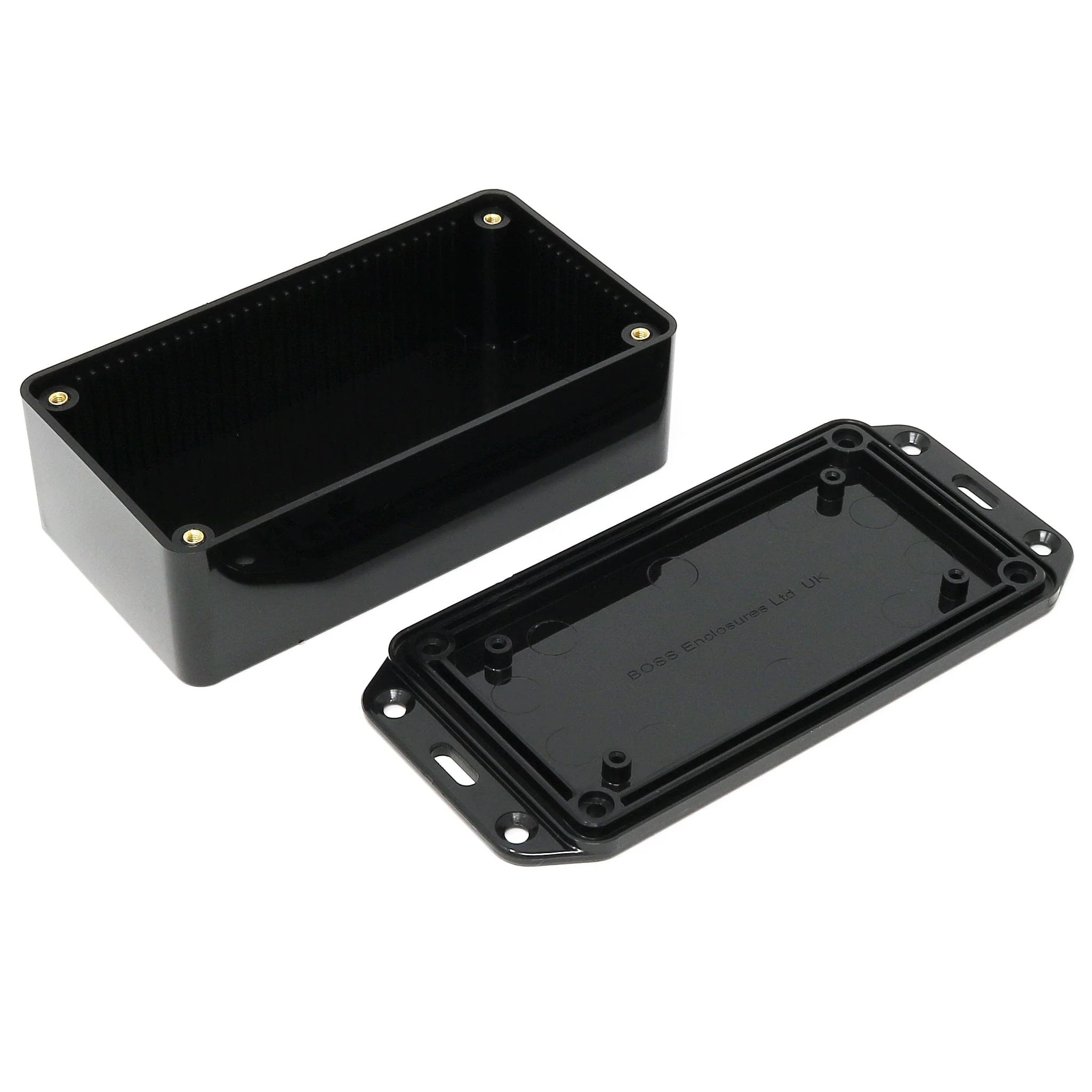

The enclosure is made from high-gloss, high-impact  ABS (UL94-HB) which is easy to cut, drill, machine and modify for your project. The enclosure is assembled using four included machine screws which drive into the brass inserts in the lid, and has been designed to meet the requirements of IP54.

The lid section also includes several integral mounting guides to accept 1.6mm PCBs and the base features PCB standoff mounts - great for those of you making your own PCBs.

We also stock a standard version of this enclosure.

Features

• General project enclosure with flanges
• Dimensions (LxWxH): 143x67x41mm
• UL94-HB ABS - high-impact, high-gloss
• Easy to cut, drill and machine
• Colour: Black
• Flanges: Yes
• Plastic standoffs in base for PCB mounting
• Integral mounting guides for 1.6mm PCBs
• Screws included for securing the lid
• Brass inserts in base for repetitive removal of the lid
• Designed to meet the requirements of IP54
• MPN: BIM2004/IP-BLK

Resources

• Camdenboss 2000-series datasheet
• Camdenboss BIM2004/IP Drawing (PDF)
• Camdenboss BIM2004/IP Drawing (DWG)

Package Contents

• 1x Camdenboss BIM2004/IP-BLK enclosure
• 4x Screws
