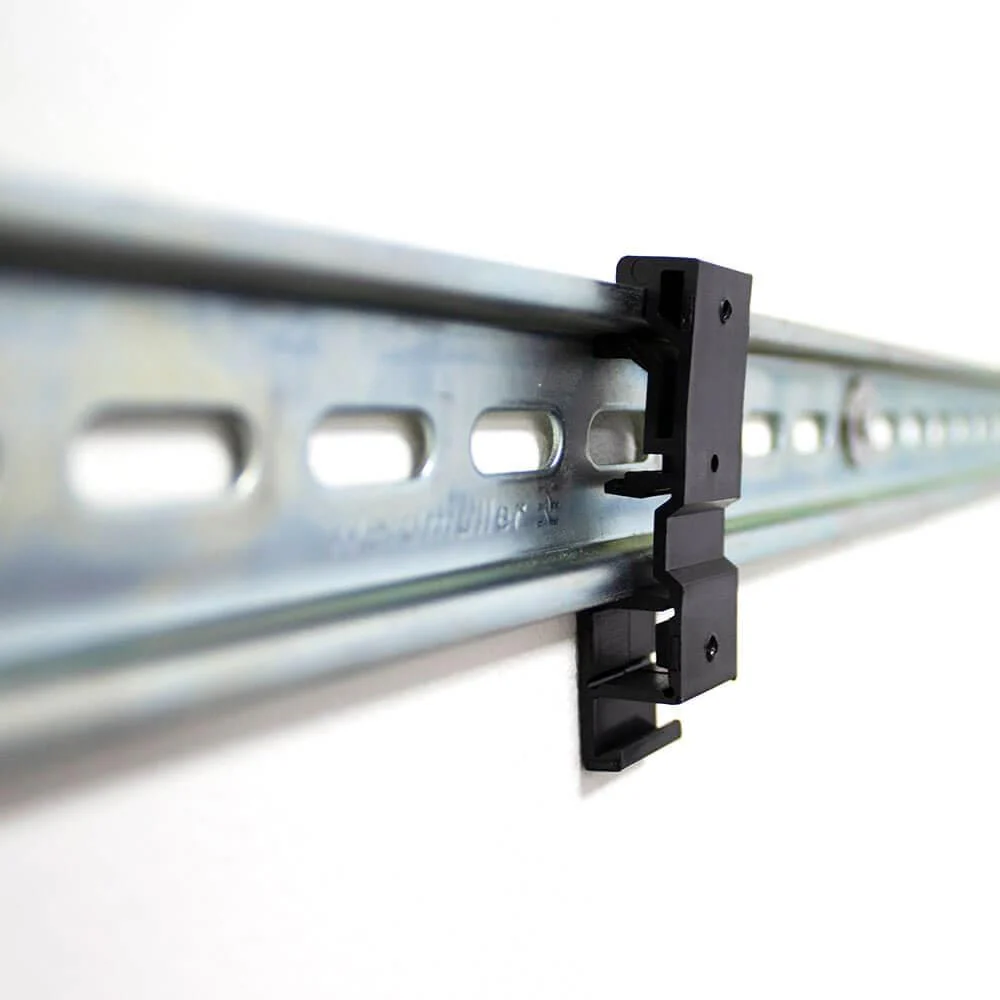

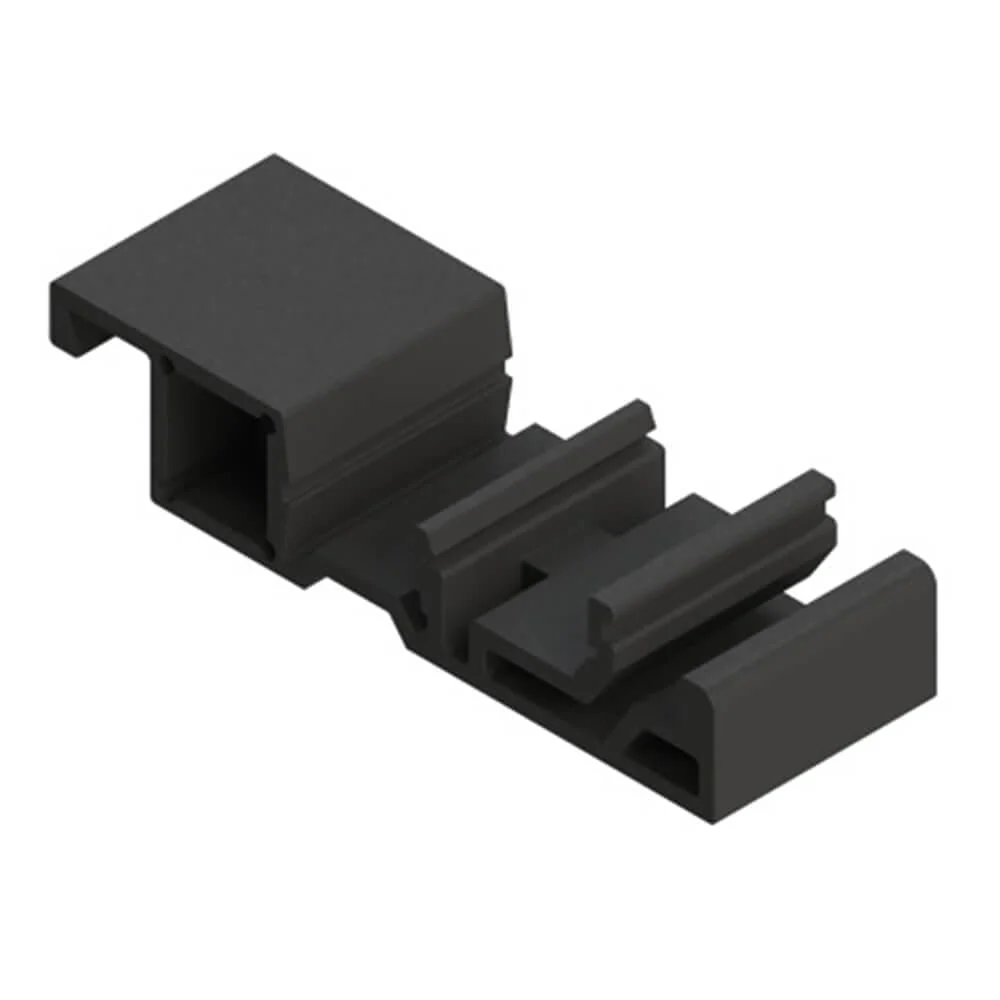

Intended for mounting plastic enclosures onto DIN rails, this DIN rail mounting bracket is an affordable way to mount 'things' to your DIN rail!

• For wide enclosures, it is recommended to use 2x Brackets
• The supplied screws allow the DIN Rail Mount Bracket to be fastened to the enclosure's surface
• Two clearance holes will need to be drilled into your enclosure
• The DIN Rail Mount bracket is designed for 35mm DIN Rail, 15mm Rail and 32mm Rail

Package Contents

• 1x DIN Rail Mounting Bracket
• 2x Screws

Specifications

External Length (mm)	59.65
External Width (mm)	17.5
External Height (mm)	12.75
Weight (G)	5.4
Base Material	Plastic
Material Type	Polyamide 66
Colour	Black
UL Rating	UL94-V0
IK Rating	N/A
IP Rating	IP00

Resources

• PDF Drawing
• DWG Drawing
