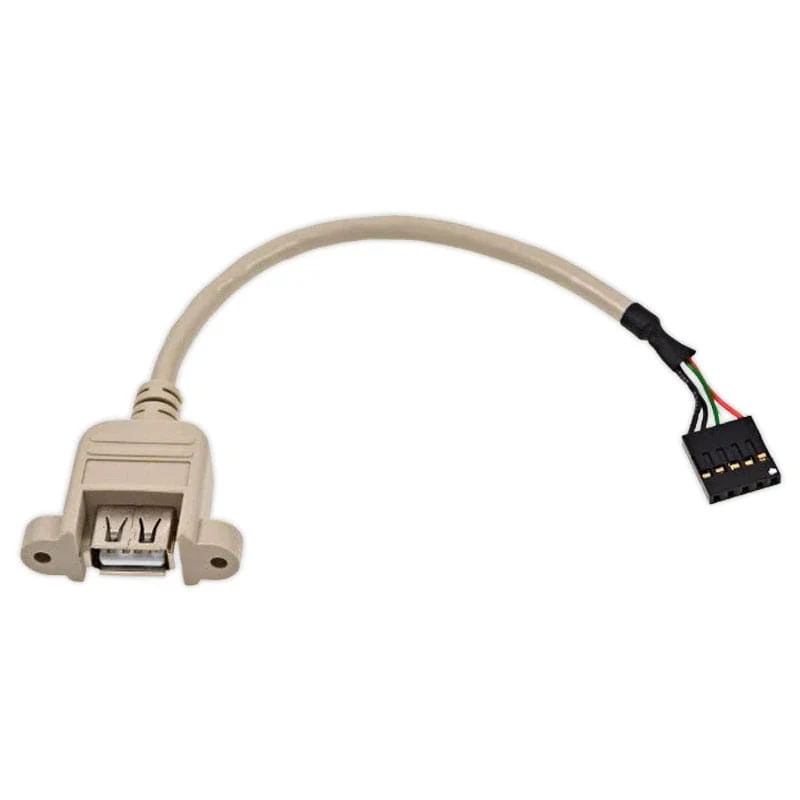

A short USB host cable for connecting USB devices or hubs to Teensy 3.6 or 4.1 via a 5-pin header.

---

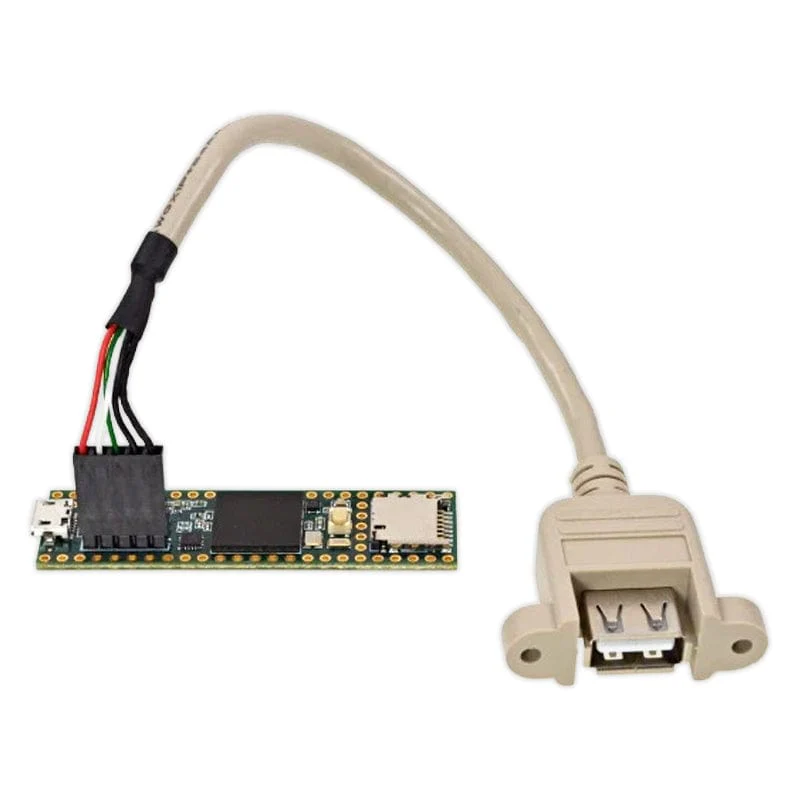

This short cable allows connecting a USB device or a USB hub to Teensy 3.6 or Teensy 4.1.

Teensy 3.5 & 3.2 are not supported. While Teensy 4.0 has USB host capability on bottom-side pads, this cable does not mate directly with Teensy 4.0. Only Teensy 3.6 and 4.1 have the pads for a 5-pin header to mate with this cable.

To use this cable, you will also need to solder pins to Teensy 3.6 or 4.1. The overall length is approximately 20cm. The portion that is a flexible cable is approximately 14cm.

Features

• Short USB host cable for connecting a USB device or hub to Teensy 3.6 or 4.1
• Not compatible with Teensy 3.2 or 3.5
  • Does not directly connect to Teensy 4.0 (pads not aligned)
• Requires soldering a 5-pin header to Teensy 3.6 or 4.1 for use
• Approx. 20cm total length

Package Contents

• 1x USB Host Cable for Teensy 4.1

Teensy board not included
