Turbo Metal Gear Worm Motor (6V 40RPM 10kg/cm)

Product image 1
Product image 2
Product image 3
Product image 4

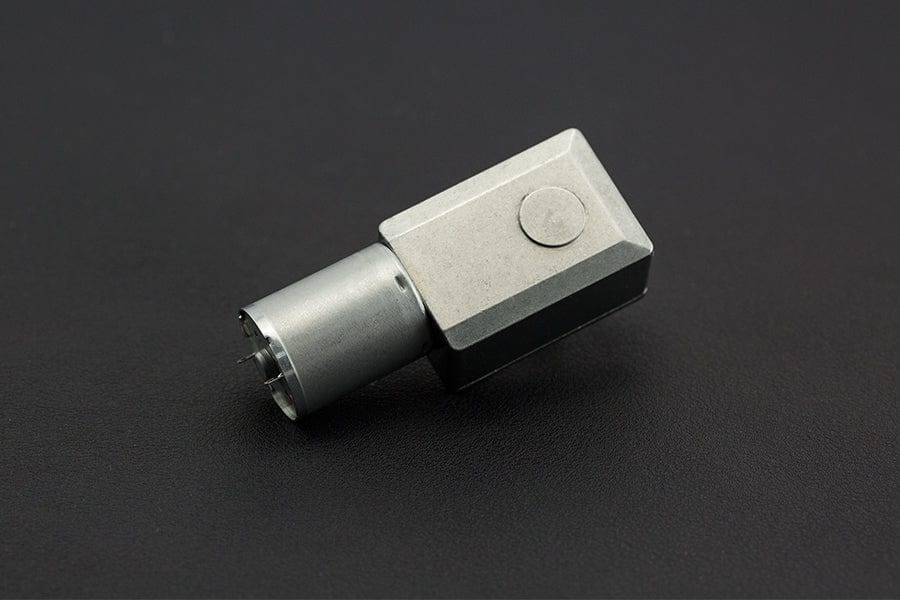

Turbo Metal Gear Worm Motor (6V 40RPM 10kg/cm)

Turbo Metal Gear Worm Motor (6V 40RPM 10kg/cm)

The turbo metal gear worm motor uses a metal gear box for durability and a high torque output. Due to the special mechanical structure of the worm drive the motor output shaft is self locking and can not be rotated.
Warning: Do not stall motor for extended periods of time to avoid damage to the gearbox.

Specification

  • Operating Voltage: 3 - 9 V
  • Rated Voltage: 6V
  • No-load Speed: 40 RPM
  • No-load Current: 40 mA
  • Rated Torque: 32 RPM
  • Rated Current: 250 mA
  • Rated Torque: 2.5 kg.cm
  • Rated Power: 1.3 W
  • Stall Torque: 10 kg/cm
  • Stall Current: 1.7 A
  • Reduction Ratio: 1:150
  • Weight: 160 g

Shipping List

  • Metal Turbo Worm Gear Motor (6V 40RPM 10kg.cm) x1
$7.43

Original: $24.78

-70%
Turbo Metal Gear Worm Motor (6V 40RPM 10kg/cm)ā€”

$24.78

$7.43

Product Information

Shipping & Returns

Description

The turbo metal gear worm motor uses a metal gear box for durability and a high torque output. Due to the special mechanical structure of the worm drive the motor output shaft is self locking and can not be rotated.
Warning: Do not stall motor for extended periods of time to avoid damage to the gearbox.

Specification

  • Operating Voltage: 3 - 9 V
  • Rated Voltage: 6V
  • No-load Speed: 40 RPM
  • No-load Current: 40 mA
  • Rated Torque: 32 RPM
  • Rated Current: 250 mA
  • Rated Torque: 2.5 kg.cm
  • Rated Power: 1.3 W
  • Stall Torque: 10 kg/cm
  • Stall Current: 1.7 A
  • Reduction Ratio: 1:150
  • Weight: 160 g

Shipping List

  • Metal Turbo Worm Gear Motor (6V 40RPM 10kg.cm) x1
