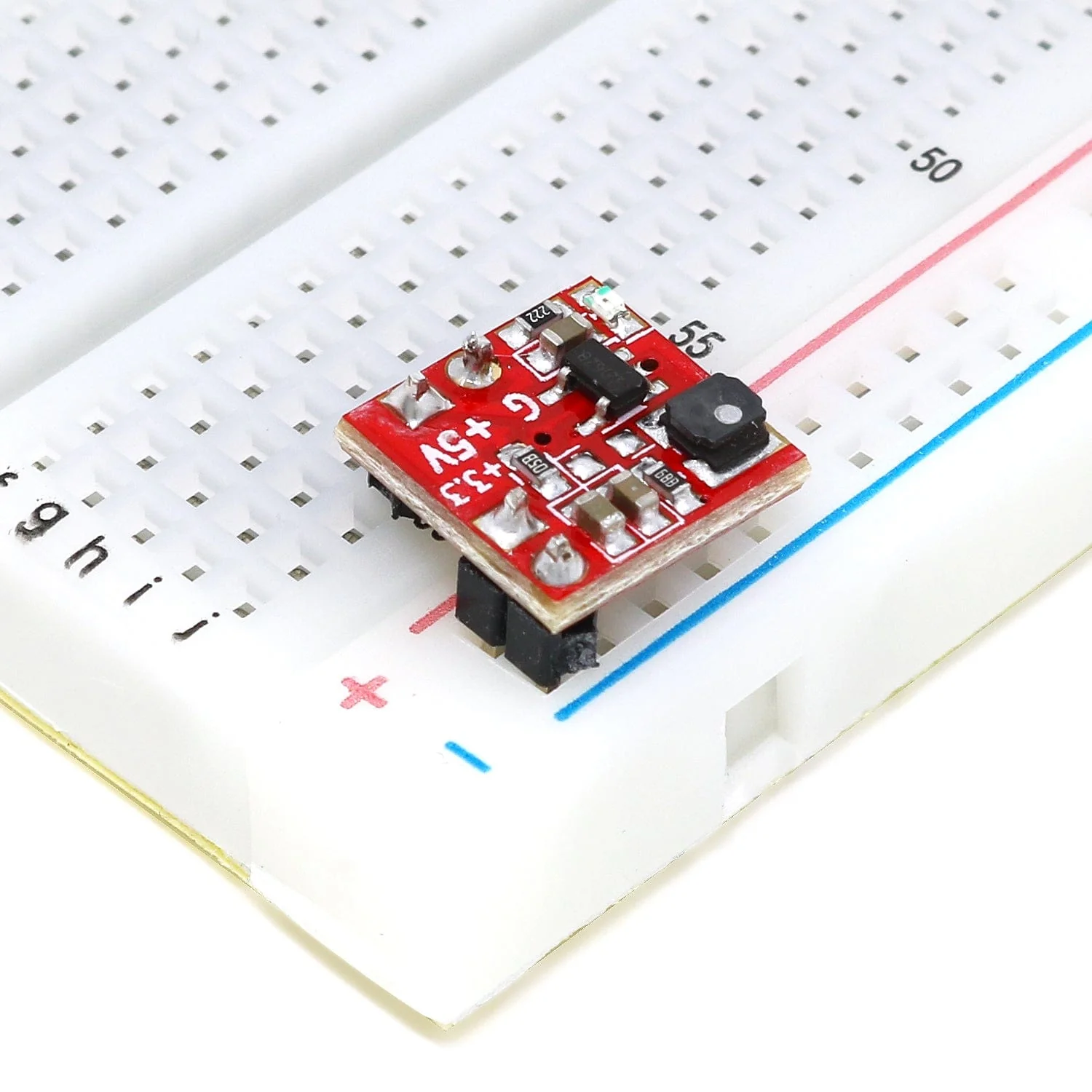

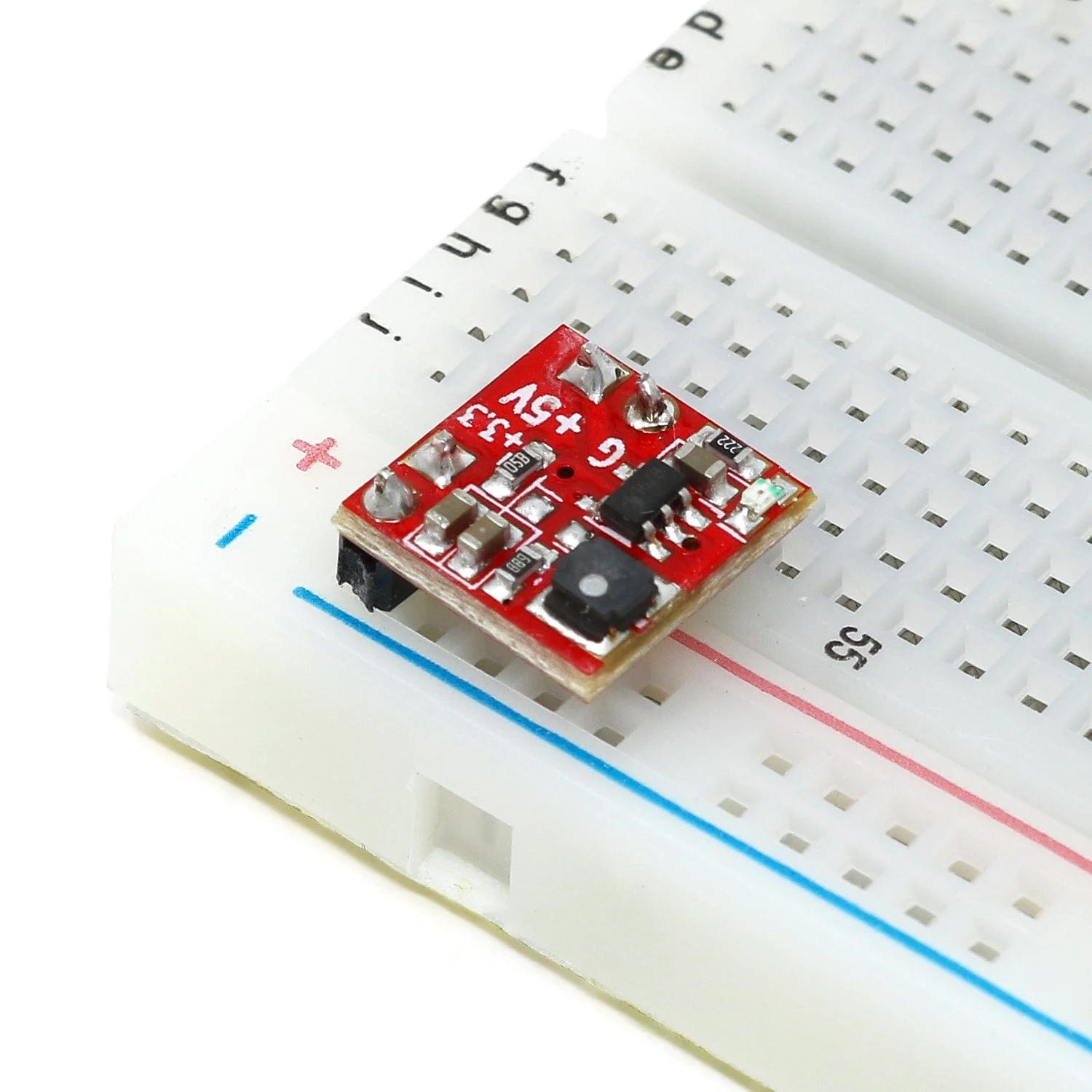

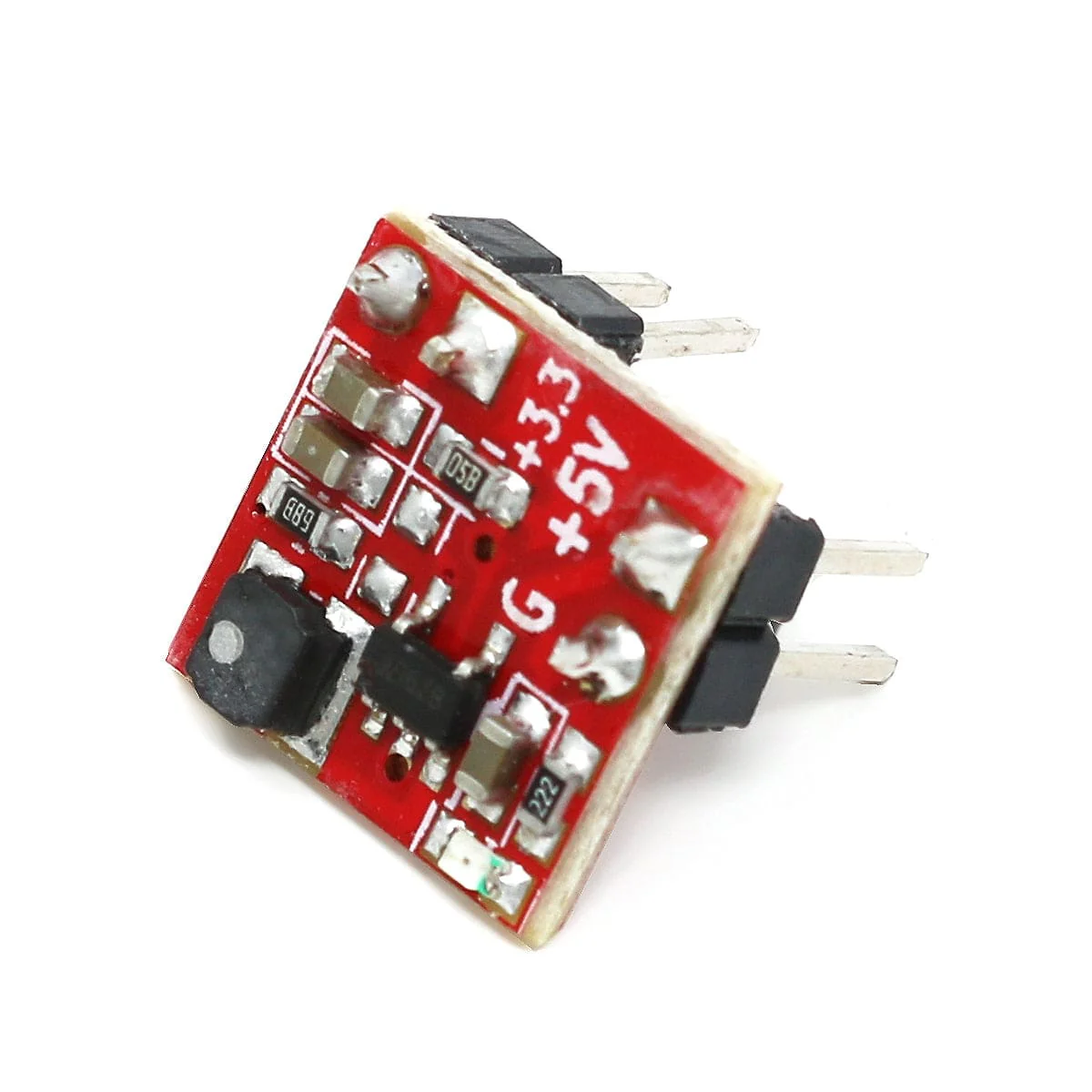

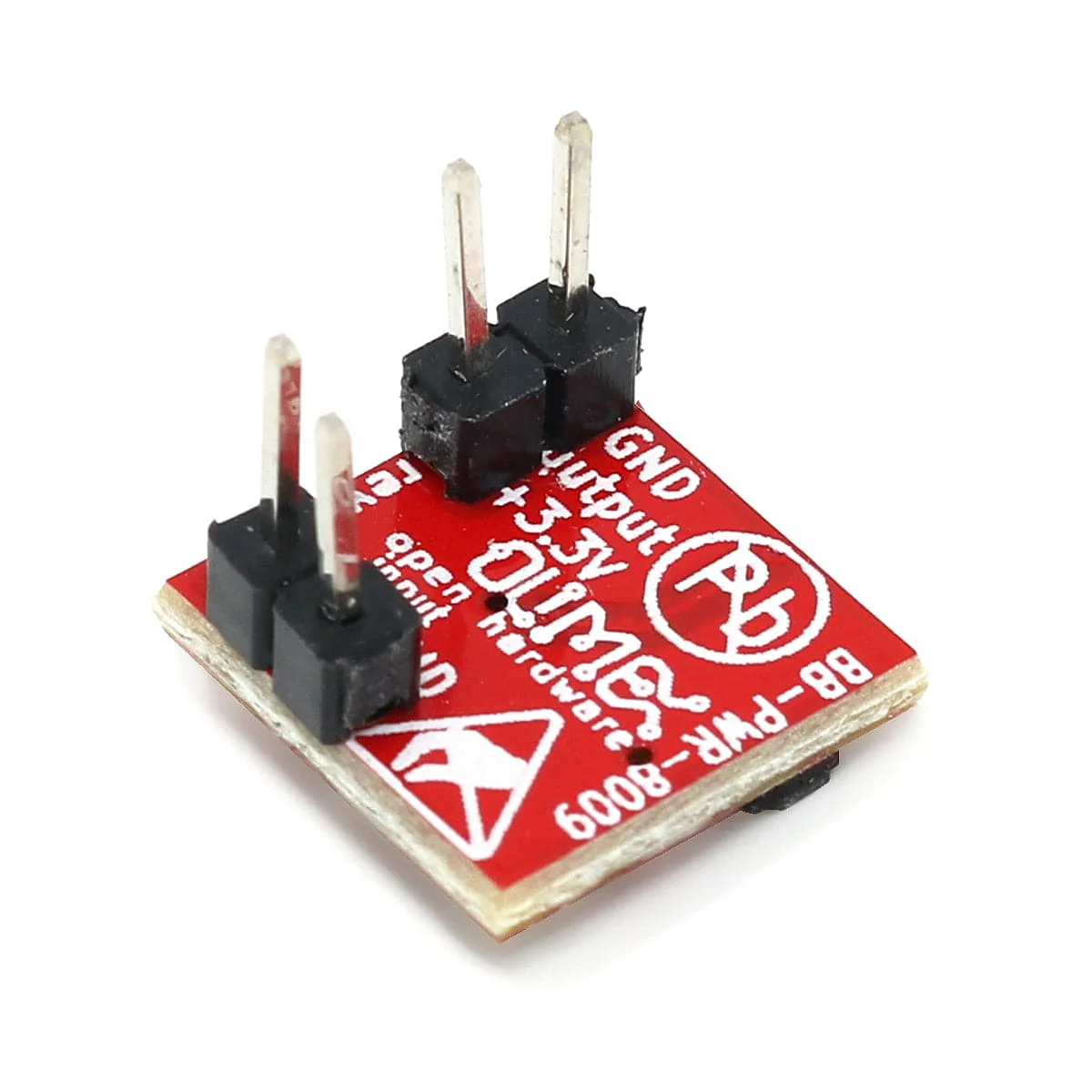

Olimex BB-PWR-8009 Breadboard Regulator (3.3V 1.5A)
Serious power for yourĀ breadboard! ThisĀ breadboard rail-compatible regulator moduleĀ canĀ input 3-5.5VĀ andĀ output 3.3V up to 1.5A.
The Olimex BB-PWR-8009 is a high-efficiency DC-DC regulator operating with a 3-5.5V input and has an efficiency of more than 90%.
The output voltage is fixed at 3.3V (up to 1.5A), perfect for powering many 3.3V microcontrollers!
Notes
- Depending on the style and brand of breadboard, the regulator can sit a little wonky (it still works just fine)
- Breadboard not included
Features
- Snaps to a Breadboard
- Input 3-5.5V
- Output 3.3V up to 1.5A
- Quiescent Current 80uA (If STATUS LED removed)
- Power efficiency >90%
- Operating temperature -40+85C
Resources
- Datasheet
- GitHub
- Schematic
- SY8009A datasheet
- EU Declaration of Conformity
- UKCA Declaration of Conformity
Package Contents
- 1x Olimex BB-PWR-8009 Module
Breadboard not included
