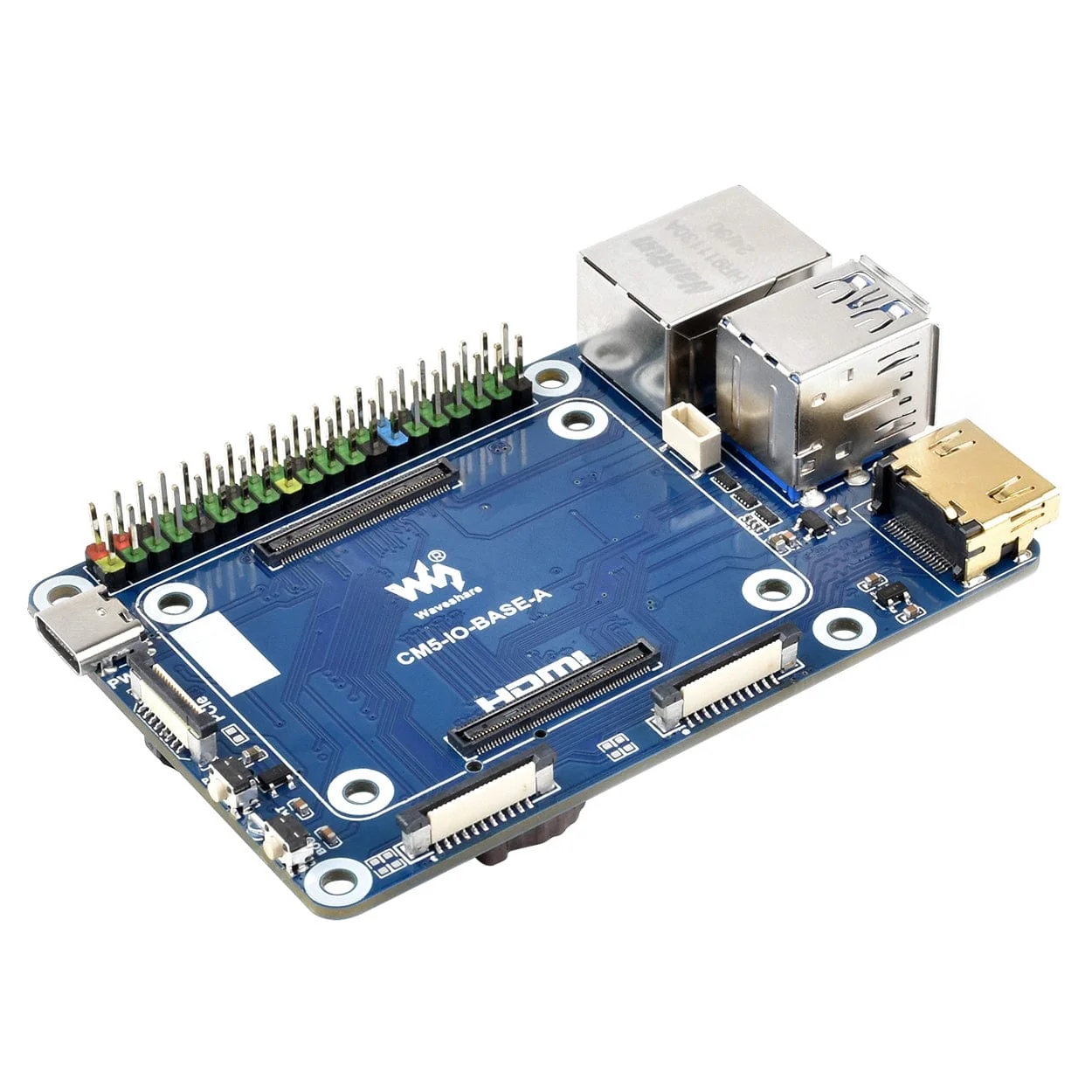

Product image 1

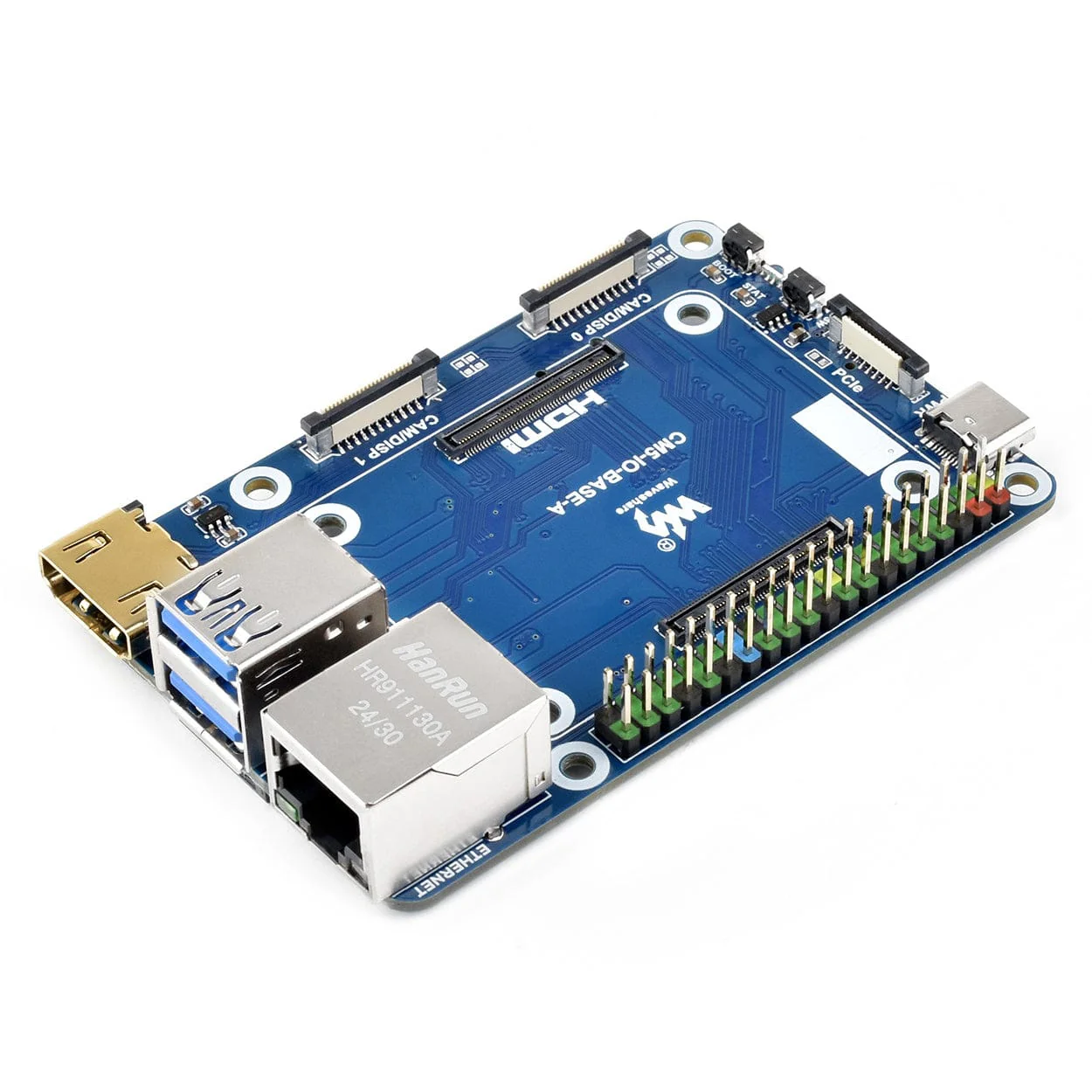

Product image 2

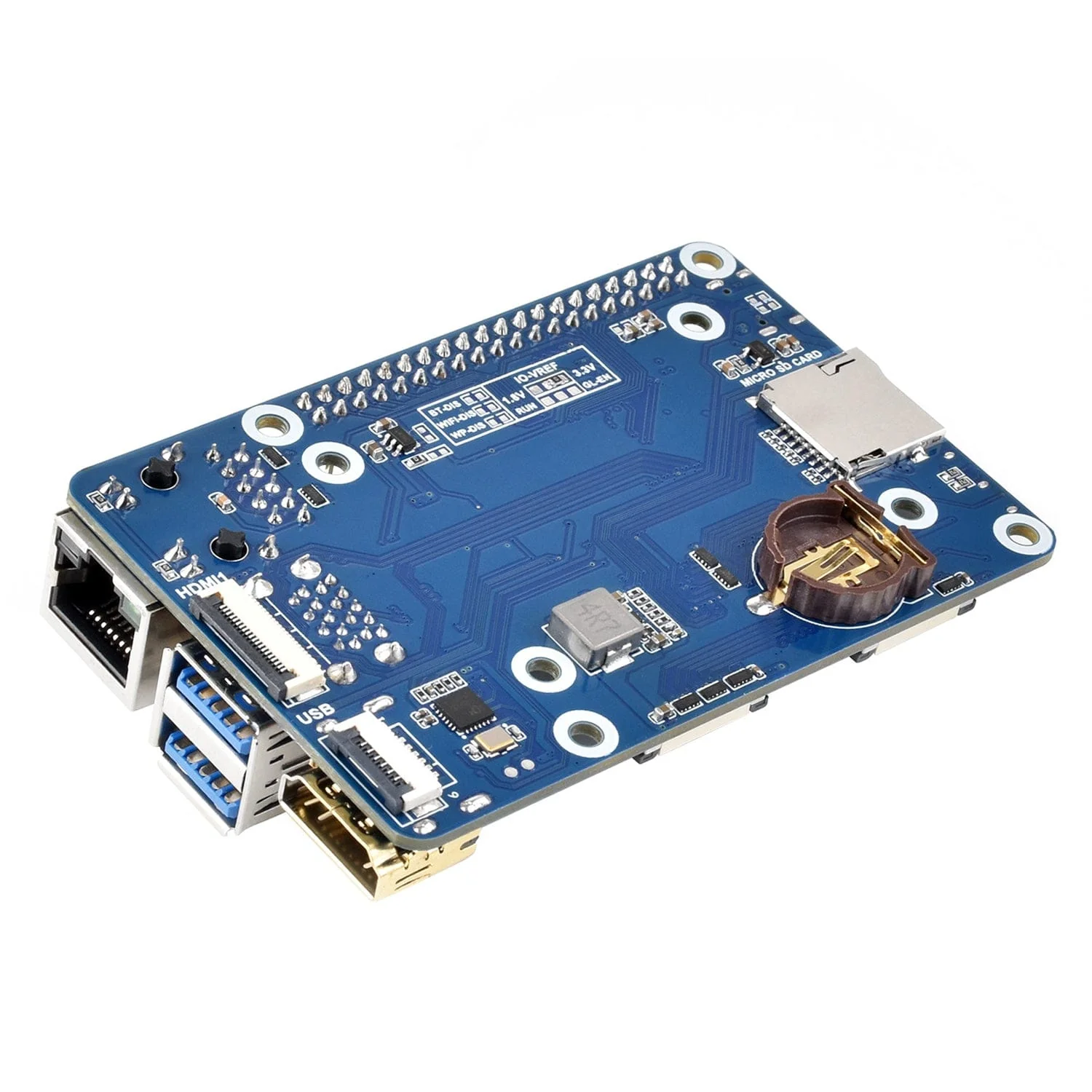

Product image 3
Product image 4
Product image 5

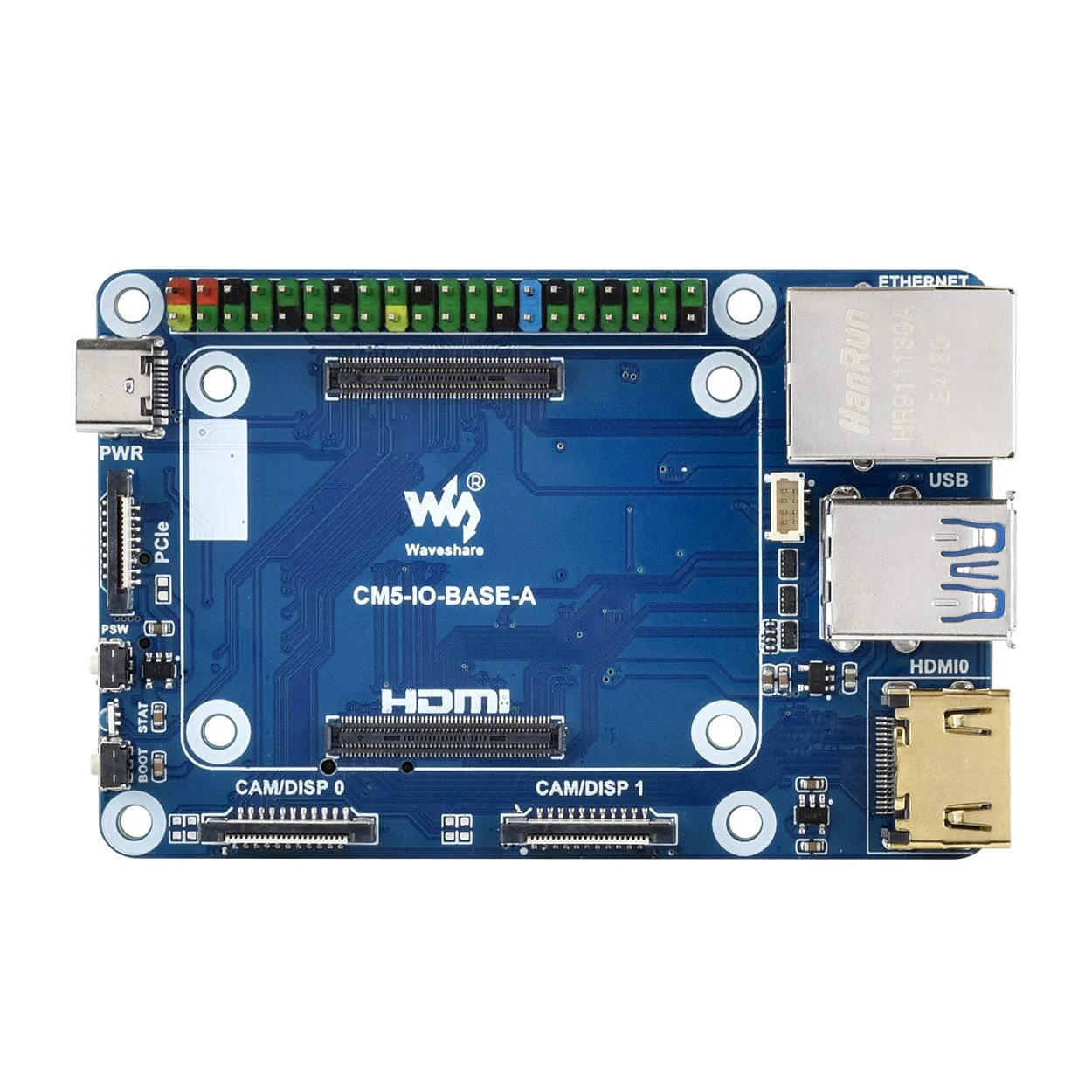

Product image 6

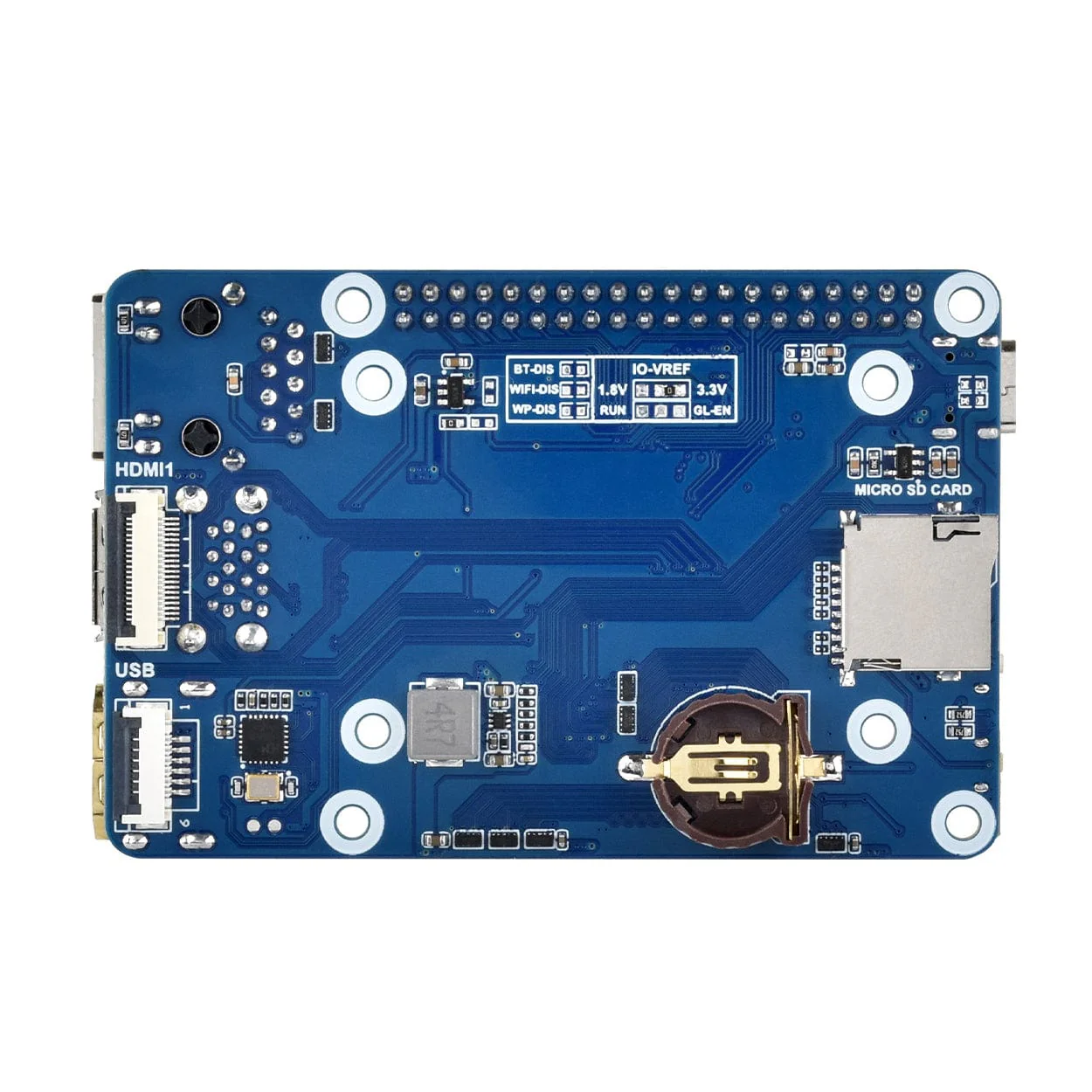

Product image 7
Product image 8

Mini Base Board (A) for Raspberry Pi CM5

Mini Base Board (A) for Raspberry Pi CM5

The Waveshare Mini Base Board (A) is an expansion board for the Raspberry Pi Compute Module 5 (CM5) that offers a range of features packed onto a compact carrier, allowing extensive prototyping or general breakout usage of your CM5.

Key features include 2x USB 3.2 Gen1 ports, a full-size HDMI port, a second HDMI port via FFC, Gigabit Ethernet, RTC battery holder and PCI-e interface. MIPI DSI and CSI connectors enable display and camera integration, while the MicroSD card slot provides flexible storage/boot options.

Power is supplied via USB-C (we recommend the Raspberry Pi 27W PSU), with a fan header for cooling and mounting holes for installation.

Compute Module 5 not included.

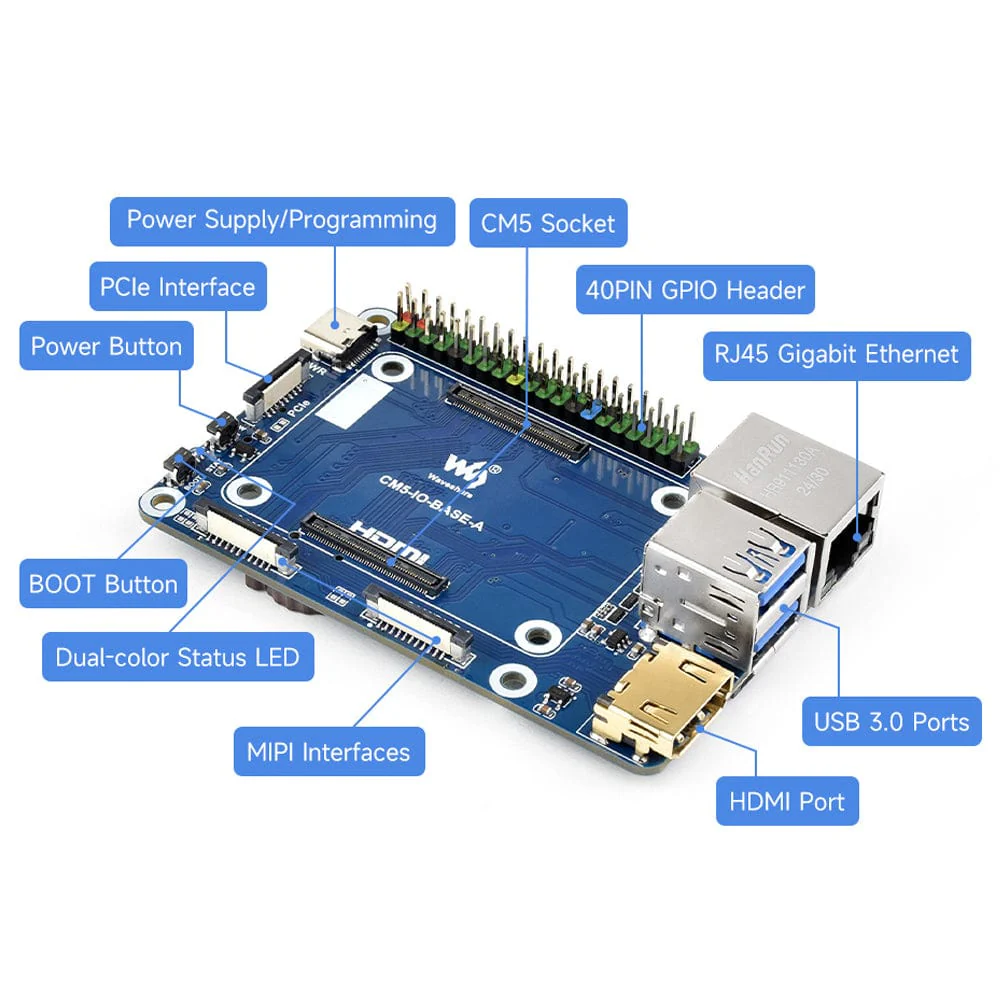

What's Onboard?

  1. CM5 socket: Suitable for all variants of Compute Module 5
  2. 40-pin GPIO header: For connecting various HAT / HAT+ modules
  3. Power input/Programming: requires a 5V / 5A USB-C power supply (or used for eMMC burning)
  4. PCIe interface: For connecting various PCIe expansion boards
  5. PSW Power button: Long press to force power off, short press to soft power off or on
  6. STAT LED: Dual-colour status LED
  7. BOOT button: Press before powering on and release after powering on to enter the burning mode
  8. Dual MIPI interfaces: For connecting DSI displays and CSI cameras
  9. HDMI0 connector: HDMI0 port, supports 4K output
  10. USB 3.2 Gen1 ports: 2x USB 3.2 Gen1 high-speed ports, supports 5Gbps synchronous operation
  11. RJ45 Gigabit Ethernet port: Supports 10M / 100M / 1000M network access
  12. 4-Pin JST-SH PWM Fan header: For connecting a cooling fan, 5V power supply
  13. TF card slot: For connecting a MicroSD card with pre-burnt image (Lite variant ONLY)
  14. IO-VREF selection: CM5 IO logic level: 3.3V (default) or 1.8V
  15. Other function pins: WIFI / BT hardware disable or write protection

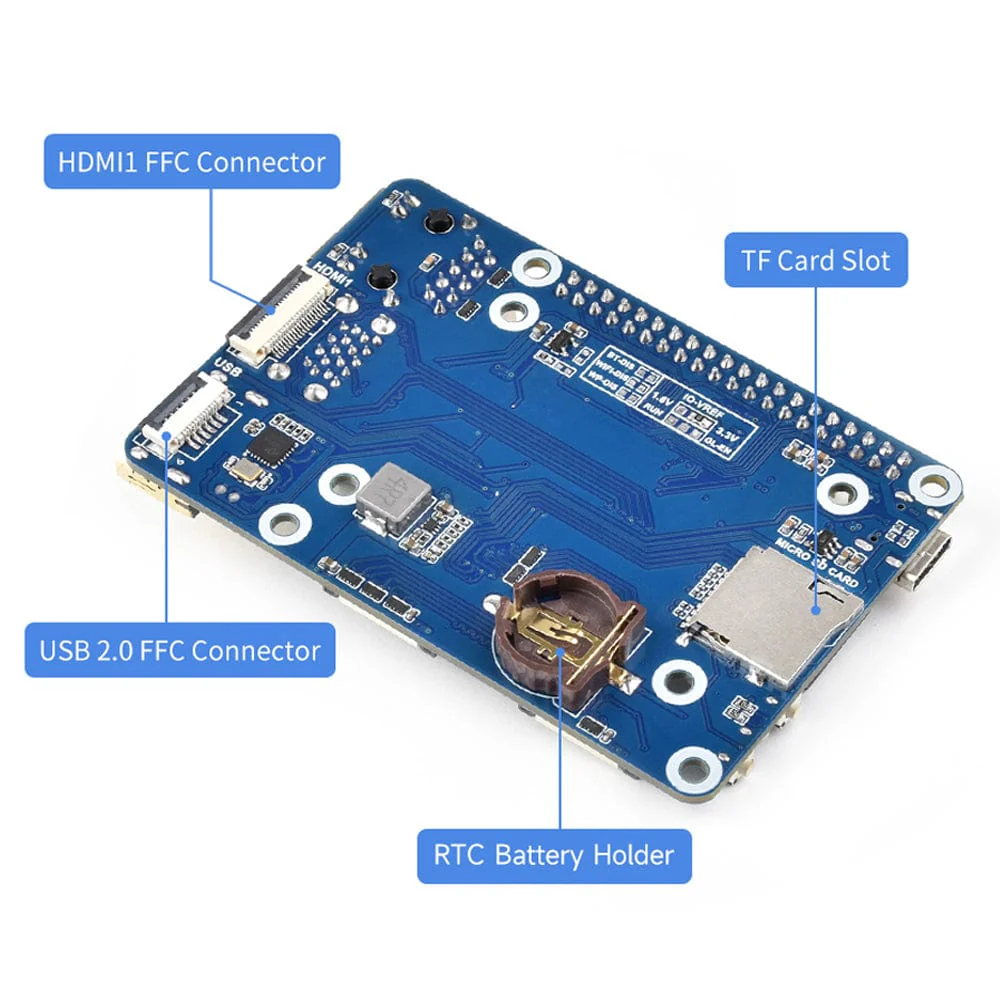

  16. HDMI1 FFC connector: HDMI1 port, supports 4K output, can be connected through an adapter
  17. USB 2.0 FFC connector: Can be connected through an adapter
  18. RTC battery holder: Supports rechargeable ML1220 button cell

Resources

  • Product Wiki

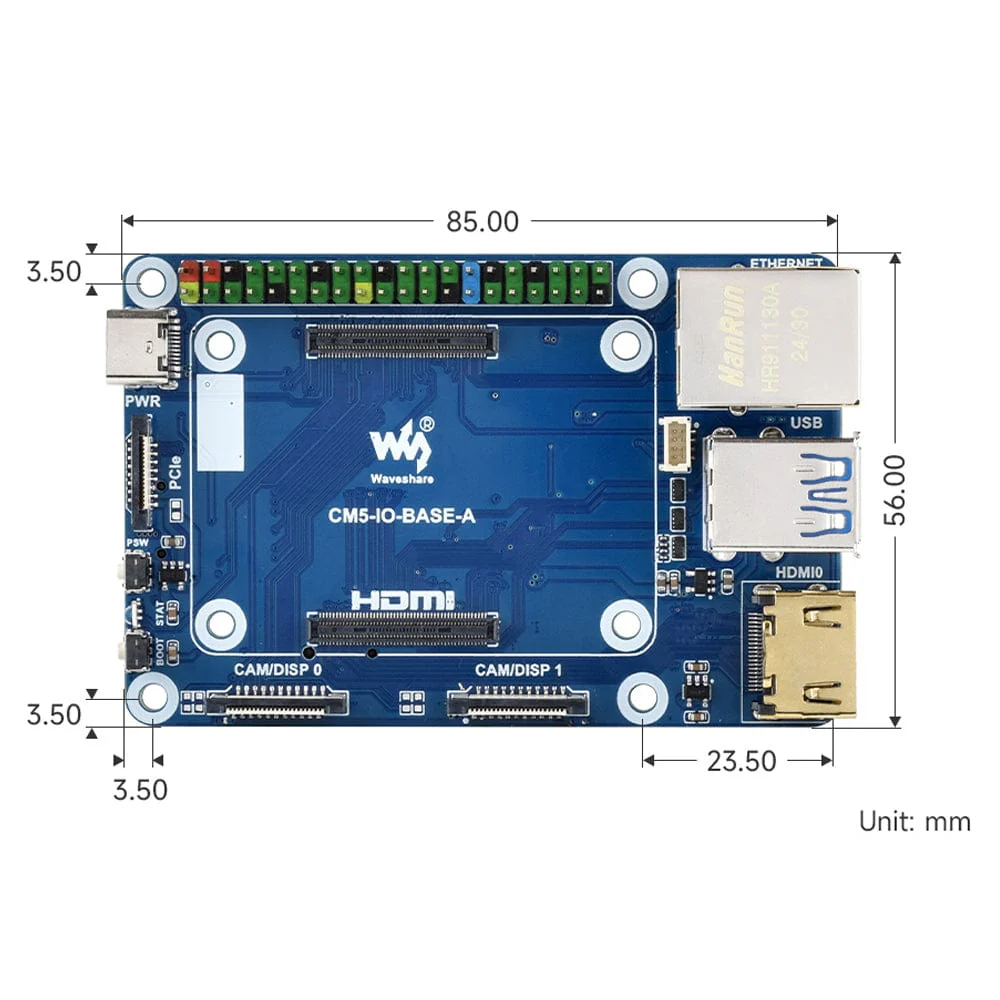

  • Dimensions
  • Schematic
  • 3D Model

Package Contents

  • 1x Mini Base Board (A) for CM5
  • 4x Standoffs
  • 4x Screws

Compute Module 5 not included
