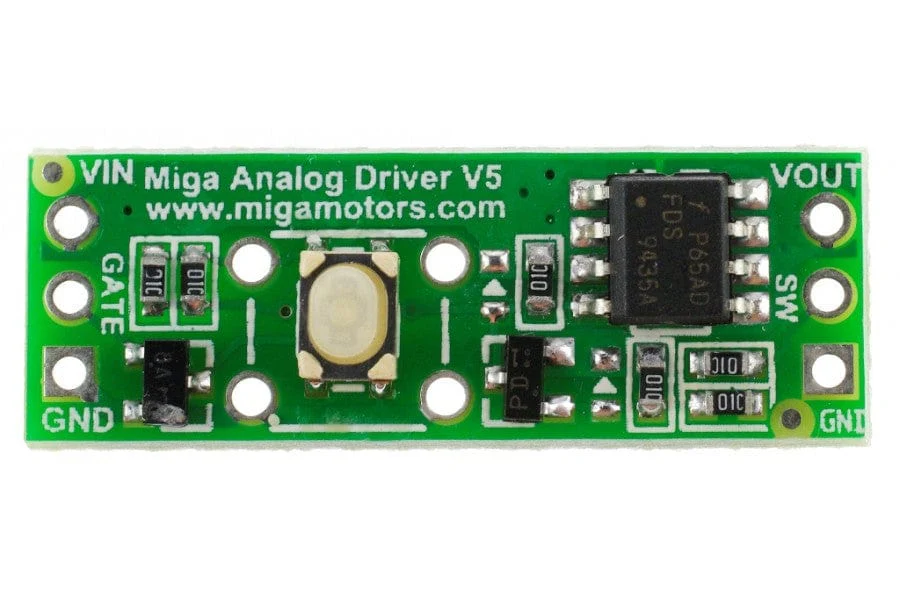

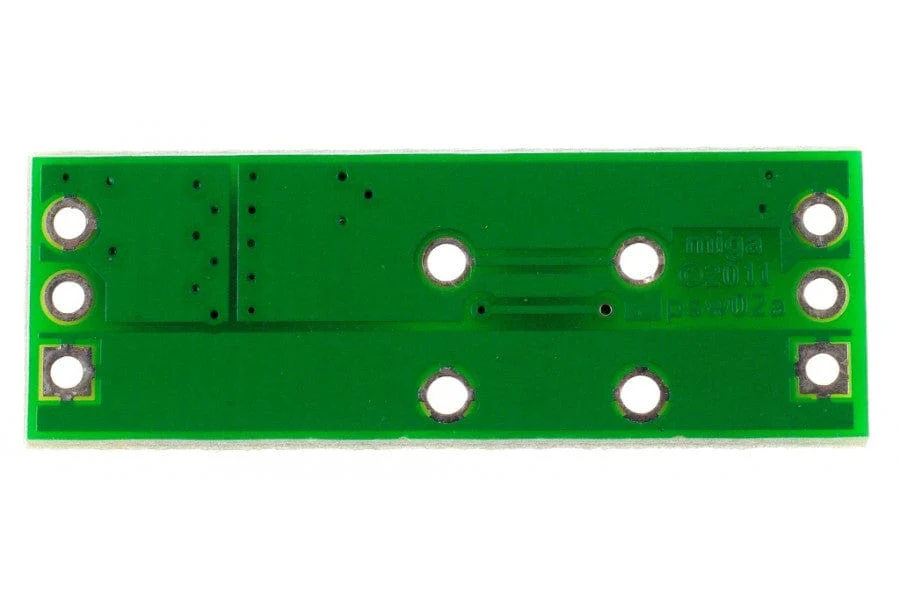

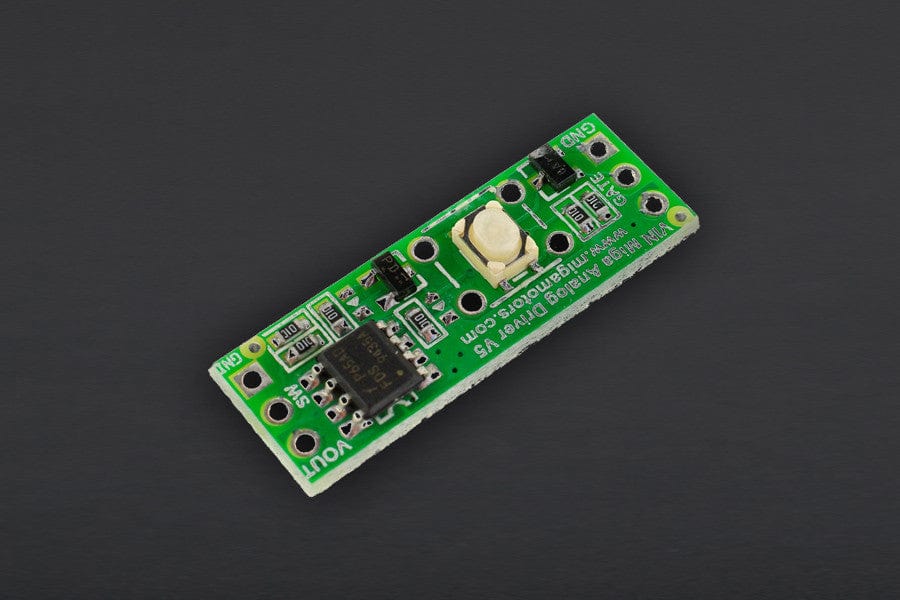

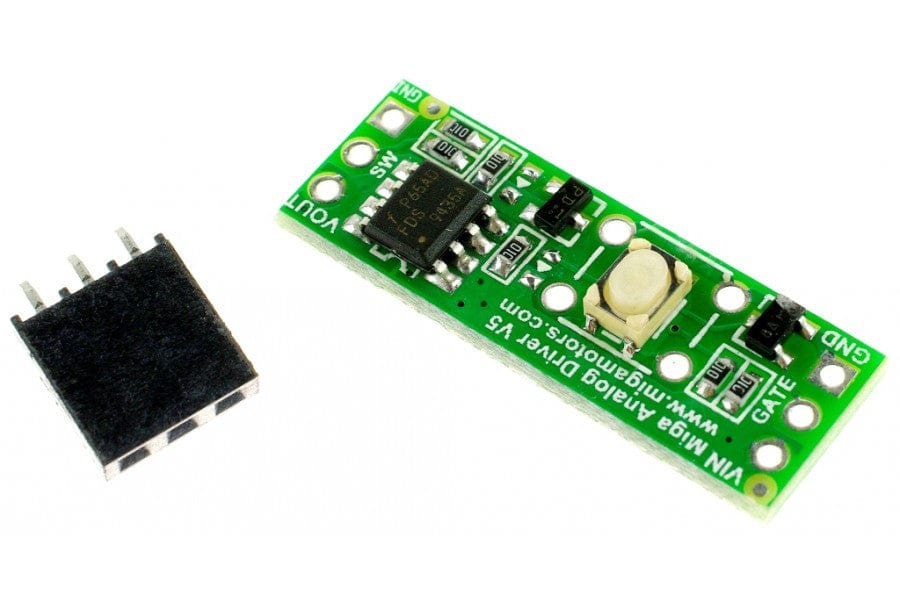

Miga Analog Driver V5 - MOSFET Switch [Discontinued]
INTRODUCTION
Specification
- Working voltage: 5~30v
- Hardware interface: 3p pin header x2
- Vin: +5 to 30v
- GND: Power & Actuator Ground
- GATE: 3v to 30v PWM, Digital CTRL
- Vout: MOSFET-switched Vin
- SW: Actuator End Switch Detection
- safely power the MigaOne, Dash4, MOBI, NM706-Super, and NM70R-6P shape memory alloy actuators
- Size:30x10mm (1.18x0.39")
Documents
- Miga Analog Driver V5 (MAD-V5) TechNote
