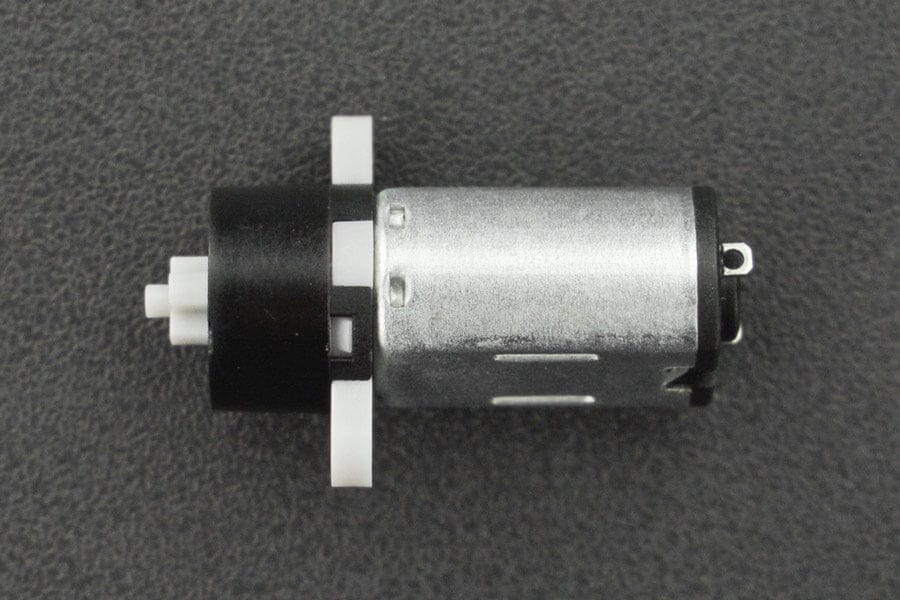

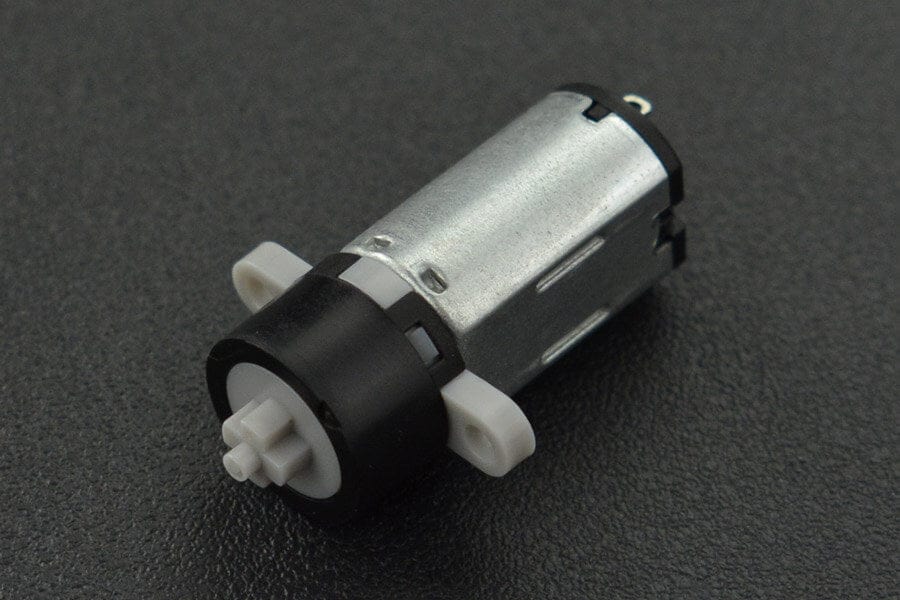

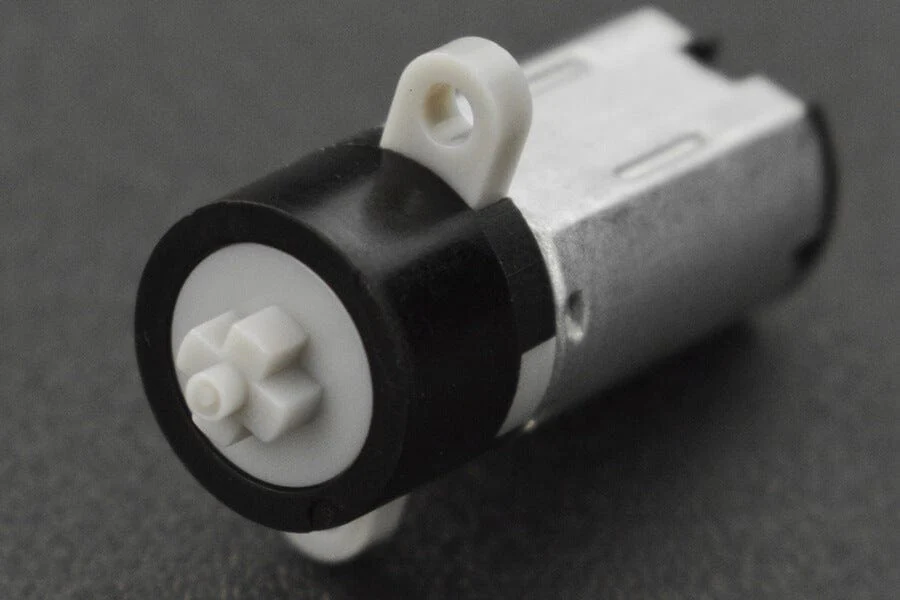

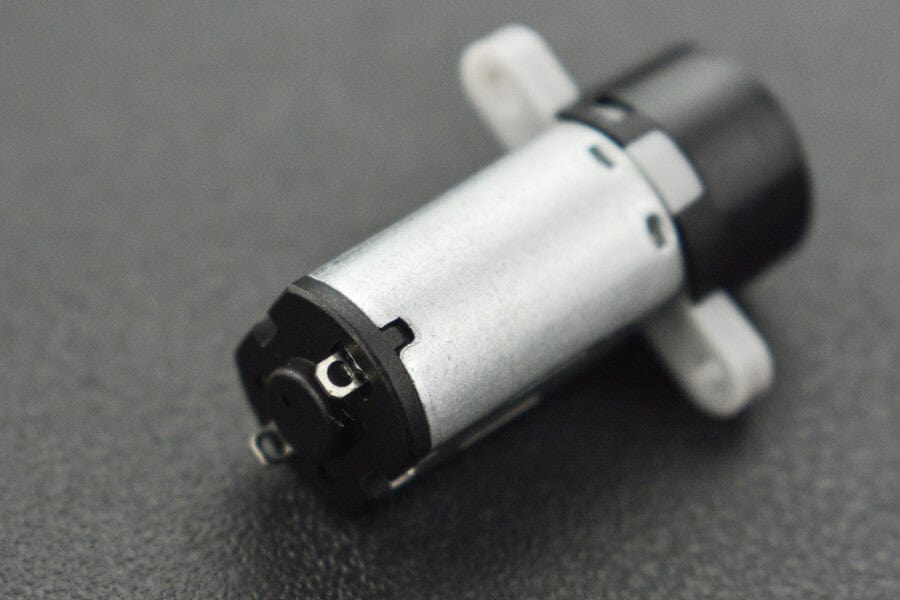

Micro DC Geared Motor 6V 112RPM
This is a new micro DC geared motor, using a planetary gear mechanism, applicable to the various types of DIY project. Especially a project which has certain requirements for size.
Specification
Shipping List
Specification
- Rated voltage: 6V
- Gear ratio: 1∶171
- No-load current: ≤ 45mA
- Starting torque: 550g·cm（MIN）
- Output shaft length: 3±0.5mm
- Insulation resistance: 100V/DC/ 1.0MΩ
- No-load speed: 110±11RPM
- Waveform: Sinusoidal waveform
- Noise：＜60db（Ambient noise 30db）
- Direction：CW
Shipping List
- Micro DC Geared Motor x1
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Micro DC Geared Motor 6V 112RPM
Micro DC Geared Motor 6V 112RPM
This is a new micro DC geared motor, using a planetary gear mechanism, applicable to the various types of DIY project. Especially a project which has certain requirements for size.
Specification
Shipping List
Specification
- Rated voltage: 6V
- Gear ratio: 1∶171
- No-load current: ≤ 45mA
- Starting torque: 550g·cm（MIN）
- Output shaft length: 3±0.5mm
- Insulation resistance: 100V/DC/ 1.0MΩ
- No-load speed: 110±11RPM
- Waveform: Sinusoidal waveform
- Noise：＜60db（Ambient noise 30db）
- Direction：CW
Shipping List
- Micro DC Geared Motor x1
$1.96
Original: $6.54
-70%Micro DC Geared Motor 6V 112RPM—
$6.54
$1.96Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This is a new micro DC geared motor, using a planetary gear mechanism, applicable to the various types of DIY project. Especially a project which has certain requirements for size.
Specification
Shipping List
Specification
- Rated voltage: 6V
- Gear ratio: 1∶171
- No-load current: ≤ 45mA
- Starting torque: 550g·cm（MIN）
- Output shaft length: 3±0.5mm
- Insulation resistance: 100V/DC/ 1.0MΩ
- No-load speed: 110±11RPM
- Waveform: Sinusoidal waveform
- Noise：＜60db（Ambient noise 30db）
- Direction：CW
Shipping List
- Micro DC Geared Motor x1
