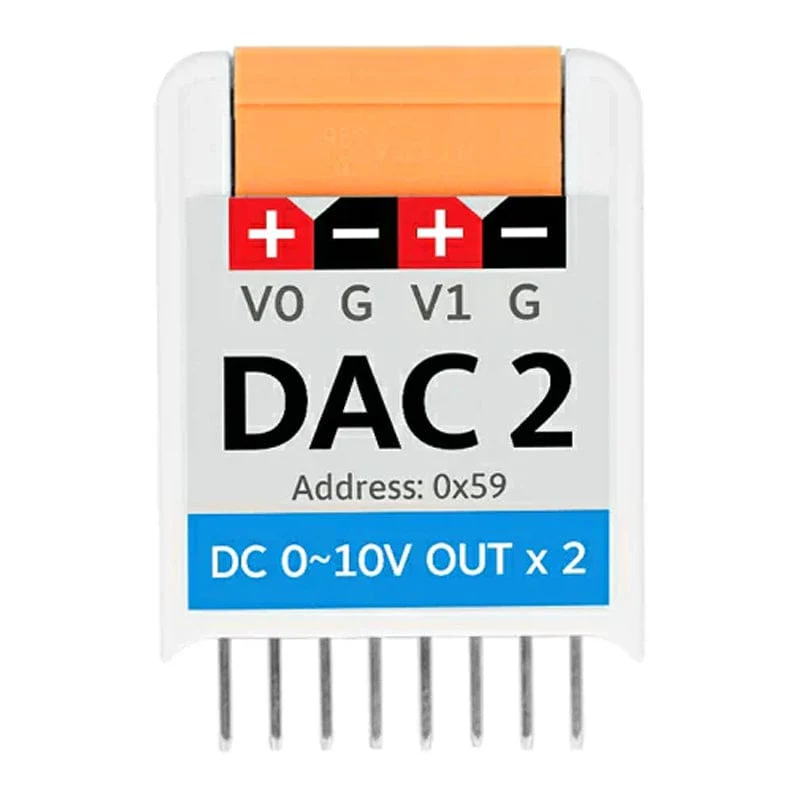

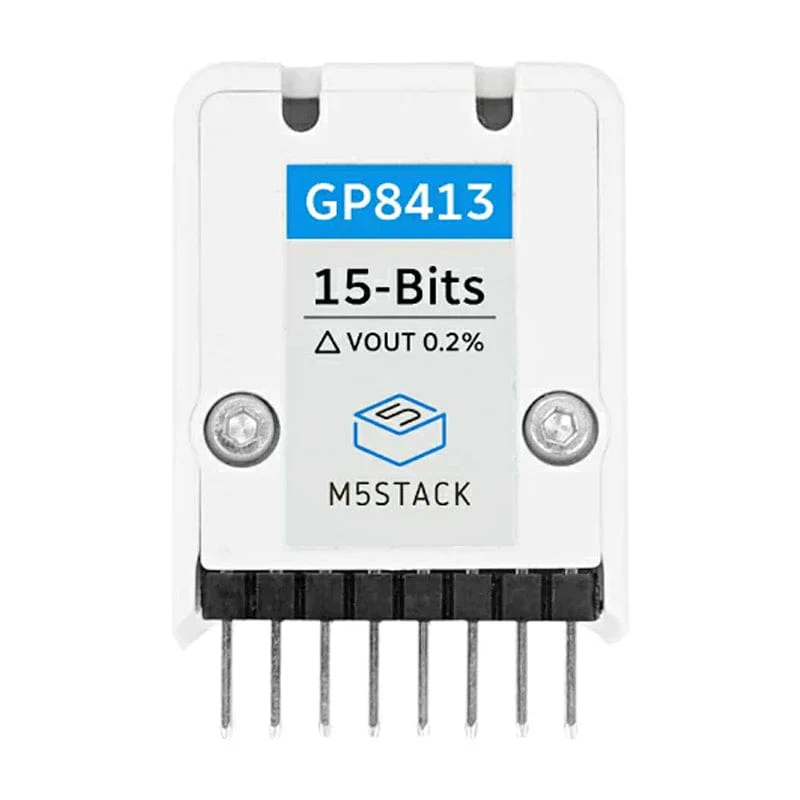

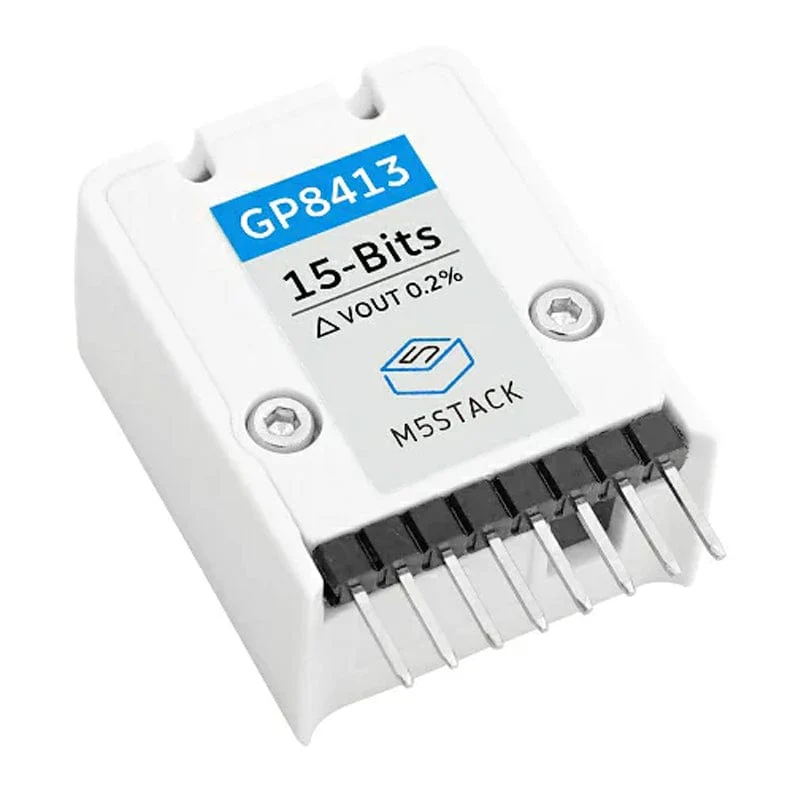

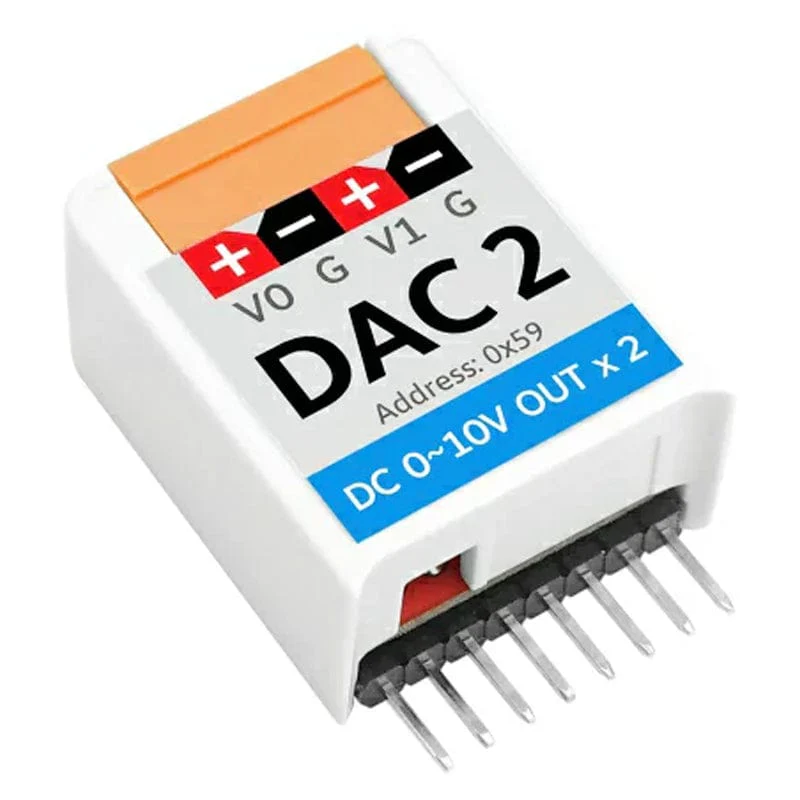

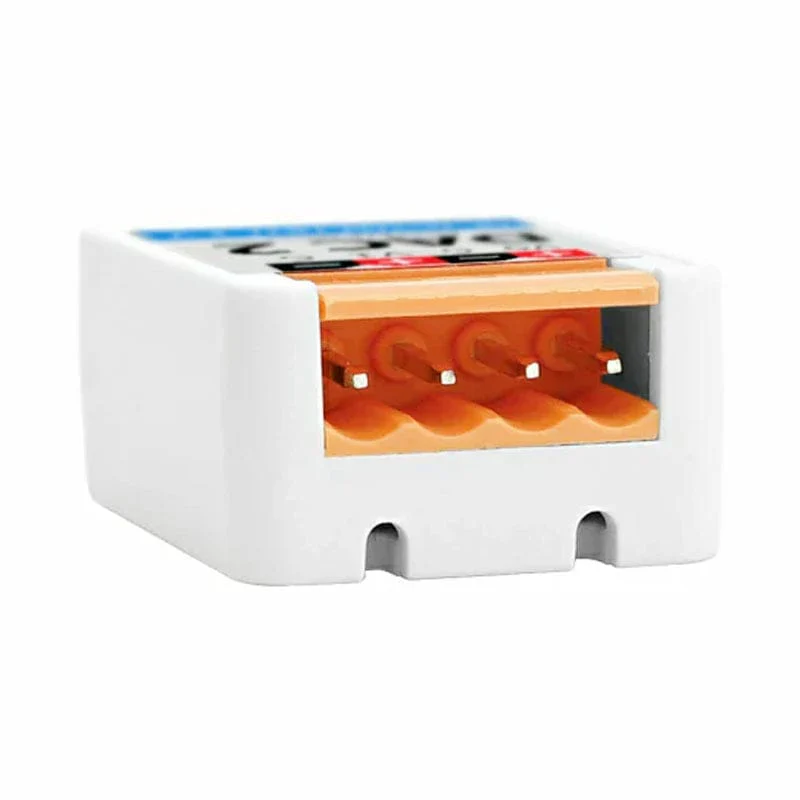

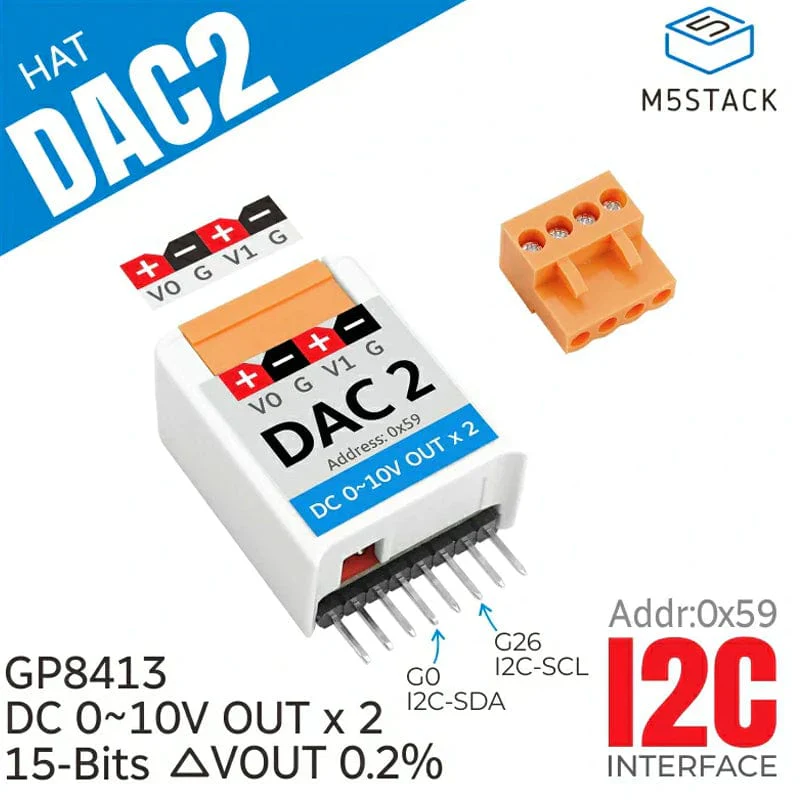

The DAC2 HAT is a digital-to-analogue conversion unit utilising an I2C interface, specifically designed for compatibility with the StickC series controllers. It features the GP8413 solution for high precision and accuracy, capable of linearly converting a 15-bit digital value into two independent analogue voltages of 0-5V or 0-10V. The unit achieves an output voltage error of only 0.2% and a linearity of up to 0.01%.

To enhance scalability, the unit's circuit design includes a 3-bit hardware address that allows the connection and simultaneous operation of up to eight devices. The hat also has safety features such as output short-circuit protection, which automatically activates a protective mode and shuts down the output in the event of a short circuit between the output pins and the ground, thereby preventing damage.

Features

• Adapted StickC/StickC PLUS/StickC PLUS2
• I2C communication (default address 0x59)
• Supports multiple parallel connections
• Short-circuit protection
• High precision, small error

Specifications

DAC Chip	GP8413
Resolution Ratio	15Bit
I2C Serial Communication	0x59 (default)
Maximum Output Voltage	10V
Output Voltage Error	<0.2%
Output Voltage Linearity error	0.0001
Operating Temperature	0-40°C

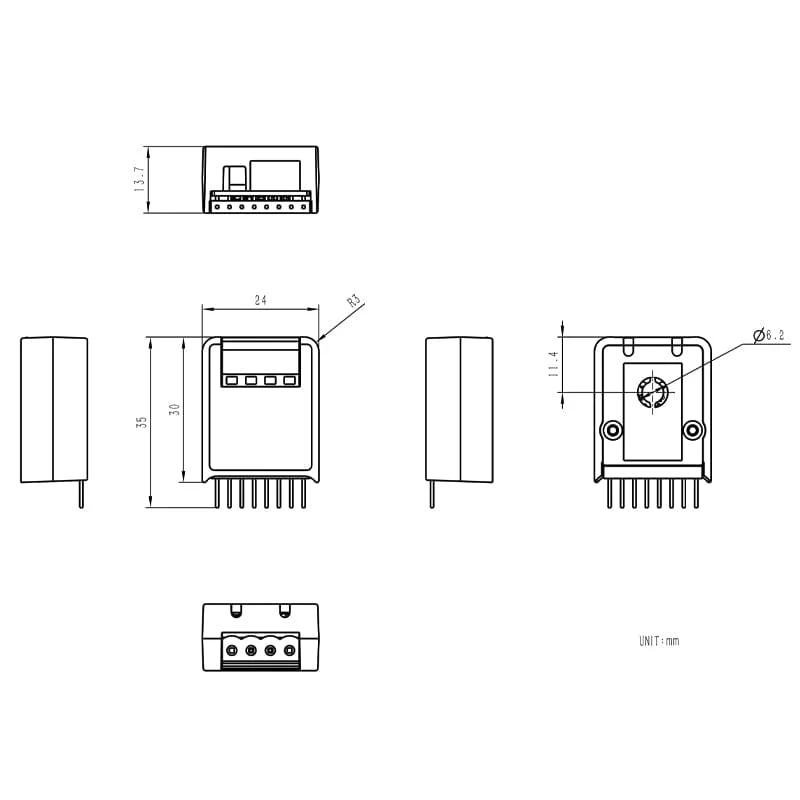

Product Size	35 x 24 x 13.7mm
Package Size	136 x 92 x 13.7mm
Product Weight	6.7g
Package Weight	15g

Resources

• Product Wiki
• GP8413 Datasheet

Package Contents

• 1x DAC2 Hat
• 1x VH3.96-4P
• 1x Sticker
