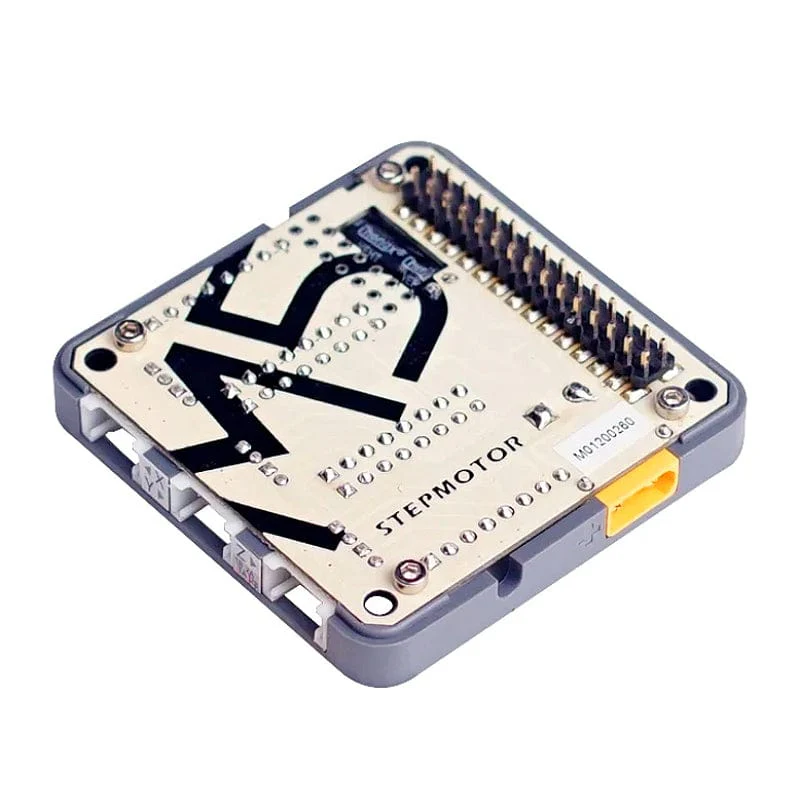

This Stepmotor Module from M5Stack is used for stepper motor control. It is perfect for any motion project as it can drive up to 3 Stepper motors with GRBL control.

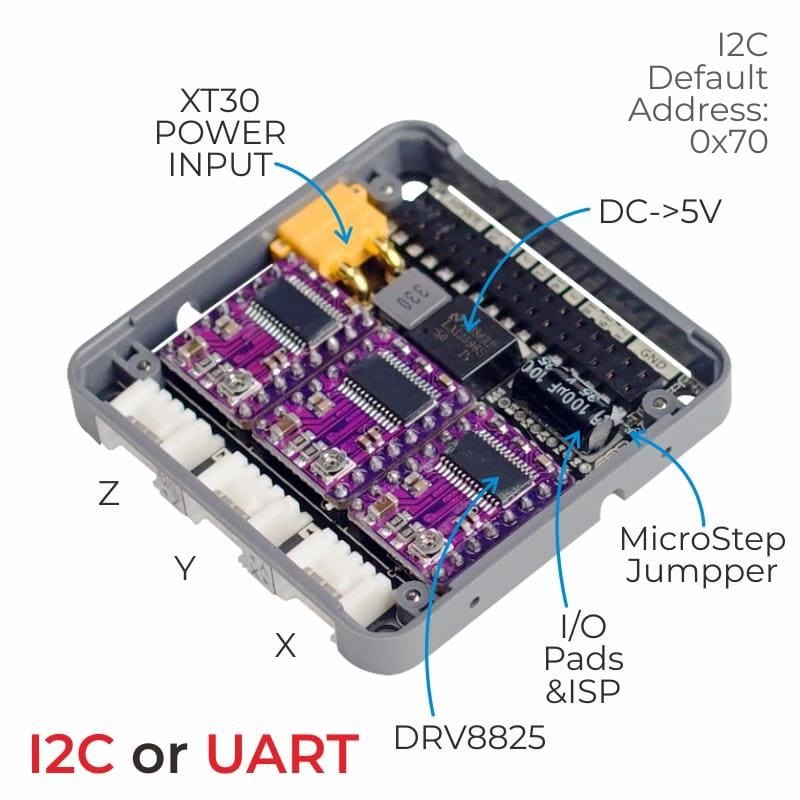

It is built with a MEGA328P and has been flashed GRBL firmware. The module communicates with M5Core via I2C (0x70).

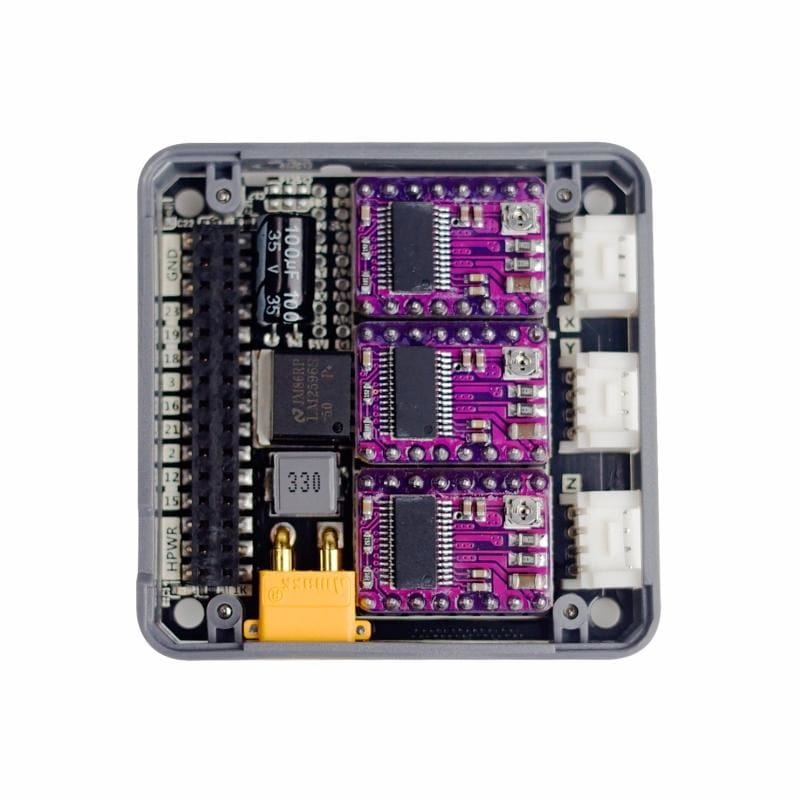

Integrated 3 DRV8825, a simple but very powerful board that can control one bipolar stepper motor at a time and allows micro-stepping up to 1/32 of a step.

A matching M5Stack UK power supply with XT30 connector is also available.

Product Features

• 9-24V Power Input
• 3-way stepper motors (X, Y, Z)

Include

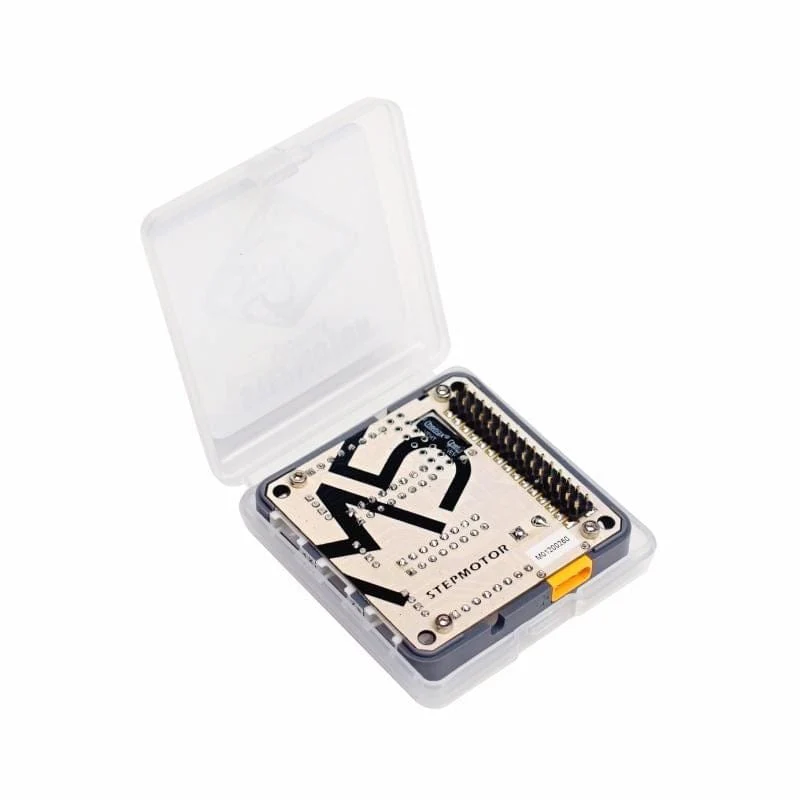

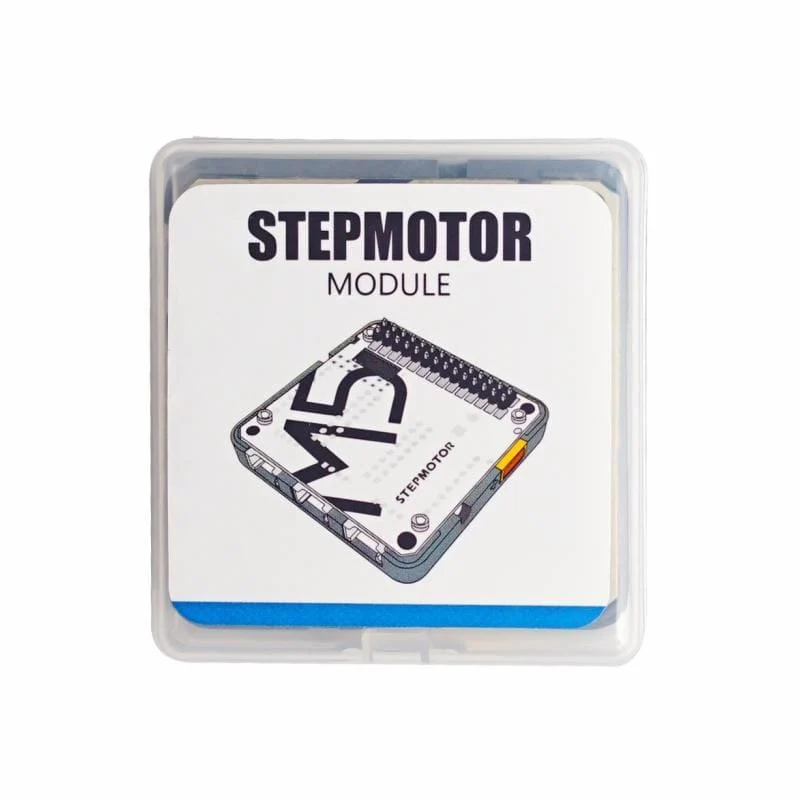

• 1x Step Motor Module

Power supply not included

Applications

• DIY 3D Printer
• Simple Robot Arm

Specification

Resources	Parameter
DC Interface	XT30
Motor Interface	HY2.0-4P
Net weight	24g
Gross weight	34g
Product Size	54.2*54.2*12.8mm
Package Size	60*57*17mm

Documentation & Resources

• Documentation
