IDC Breakout Helper - 2x16 (32 pin)
This 2x16 (32 pin - 0.1 spaced) IDC Breadboard Helper is great in conjunction with any 32-pin IDC cables.

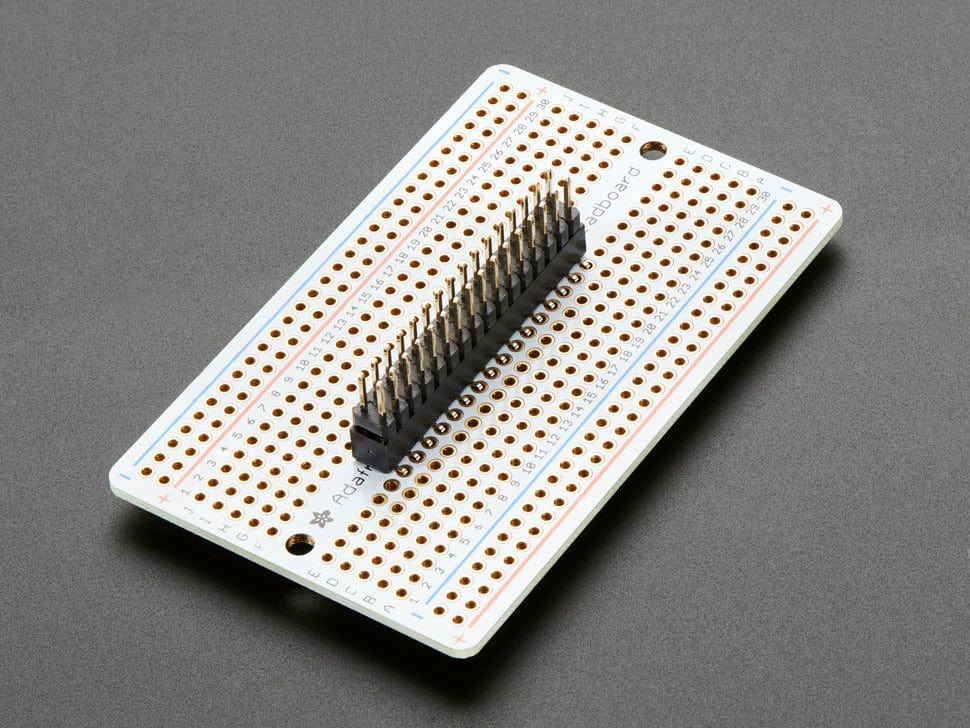

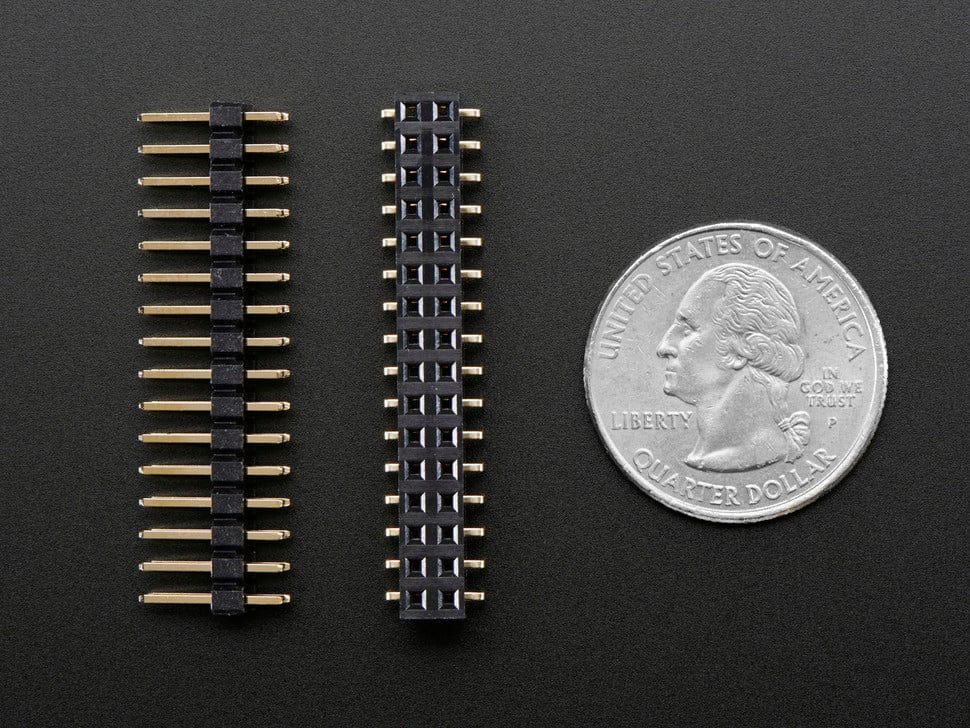

It comes in two parts, a 'pin-through' socket and a male header. The socket straddles the centre of aĀ Perma-ProtoĀ and then the header plugs into the top of the socket.
Works best when soldered in place (they don't always stay put in a breadboard).
Each order comes with one socket and one header.Ā Perma Proto and IDC cable not included!
Technical details
- Dimensions (assembled): 41mm x 8mm x 17mm
- Dimensions (header): 40mm x 5mm x 12mm
- Dimensions (socket): 41mm x 8mm x 8mm
- Weight (assembled): 4gĀ
