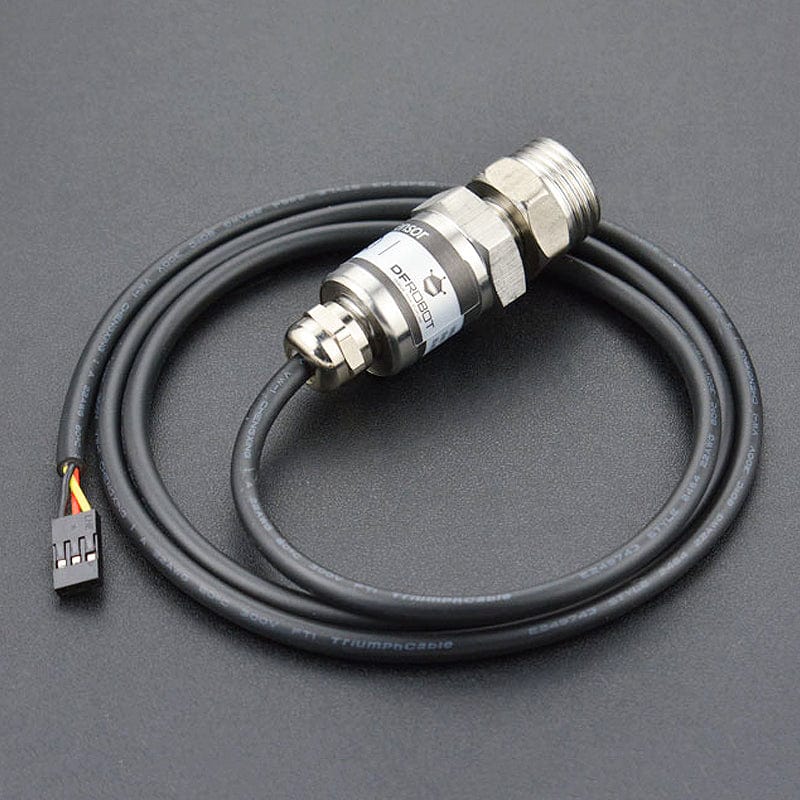

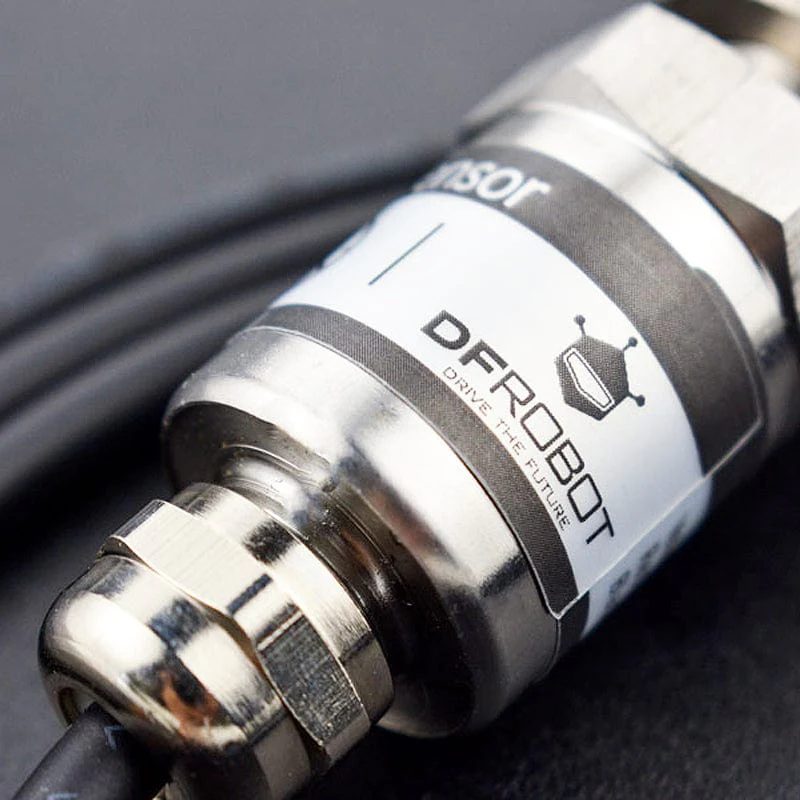

This is a water pressure sensor that adopts the DFRobot Gravity 3-pin interface. It supports standard 5V voltage input and 0.5~4.5V linear voltage output. It is compatible with multiple Arduino controllers. Coordinate with a DFRobot Gravity IO Expansion Shield, the water pressure sensor can be plugged into an Arduino board, wiring-free. Put it with Solenoid Valve, Water Turbine Generator and other sensors, you can build a smart water control system.

Briefly speaking, this water pressure sensor is a stethoscope to a water pipe. It will help you to diagnose whether there is water, how strong the water pressure is. It can be widely applied to smart home control systems (SCS), Internet of Things (IoT) and device detections.

Support water pressure detection of living environmental water systems, such as houses, gardens and farms

Support water pressure detection of the outdoor environment, such as rivers, lakes and sea

Support water pressure detection of tanks

Support liquid level detection in special situation detection in specified liquid

Medium: liquid/gas without corrosion

Wiring: Gravity-3Pin (Signal-VCC-GND)

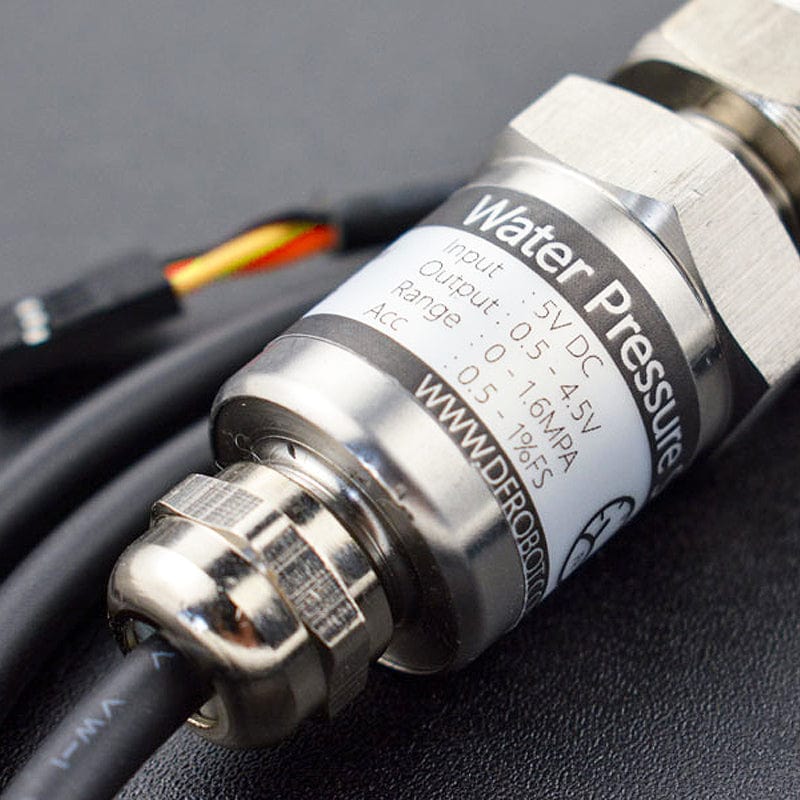

Pressure Measurement Range: 0~1.6 Mpa

Input Voltage: +5 VDC

Output Voltage: 0.5~4.5 V

Measurement Accuracy: 0.5%~1%FS (0.5%, 0~55°C)

Threadably: G1/4

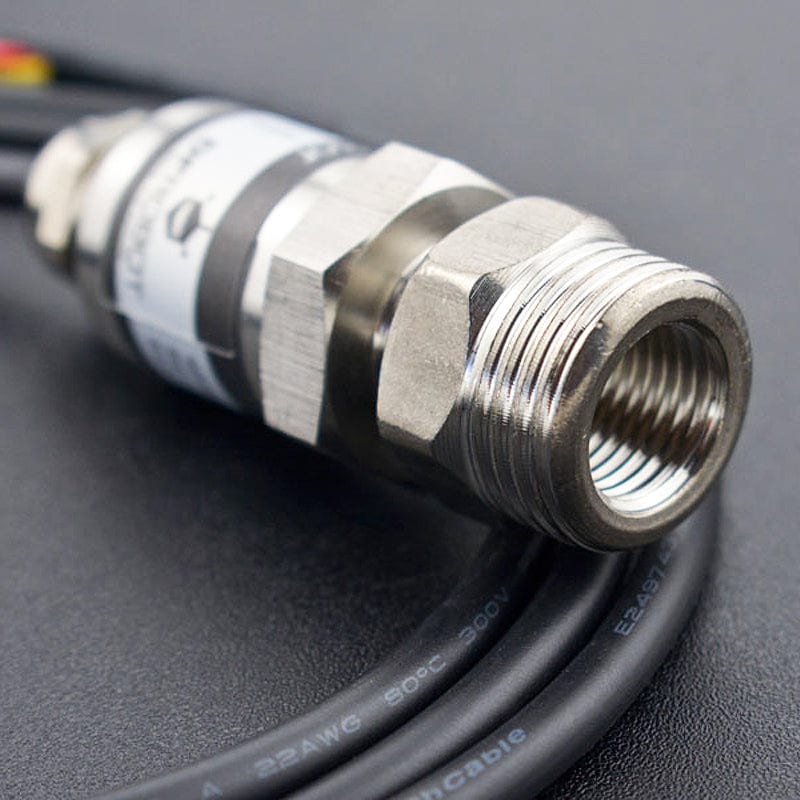

Adapter: G1/2 to G1/4

Waterproof level: IP68

Operating Temperature: -20~85°C

Response Time: <2.0 ms

Quiescent Current: 2.8 mA

Normal Operating Pressure: ≤2.0 Mpa

Damaged Pressure: ≥3.0Mpa

Service Life: 10’000’000 times

• Product wiki

1x Gravity: Analog Water Pressure Sensor

1x G1/2 to G1/4 Connector (mounted)
