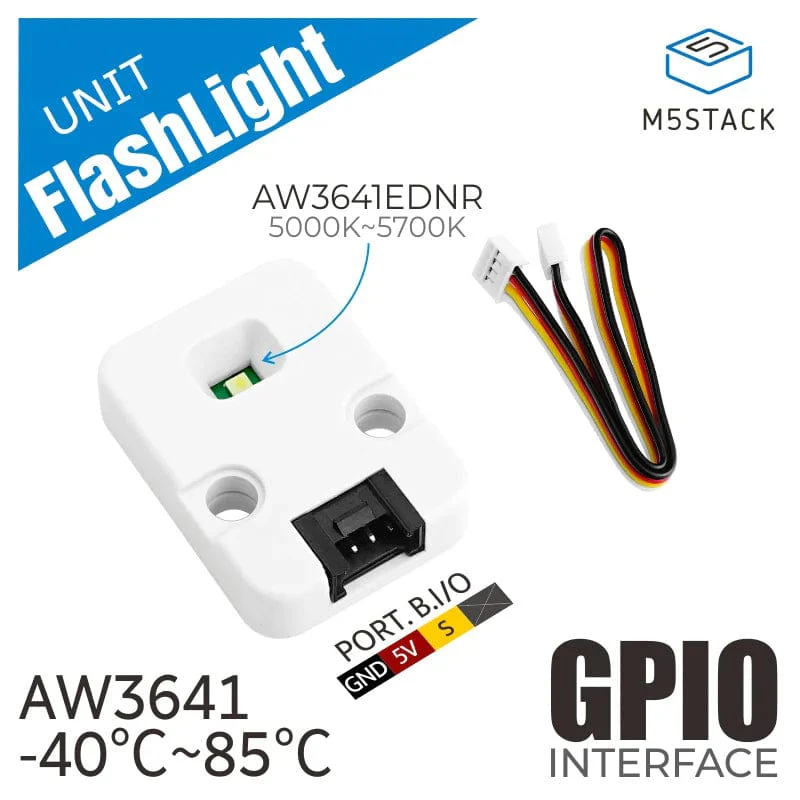

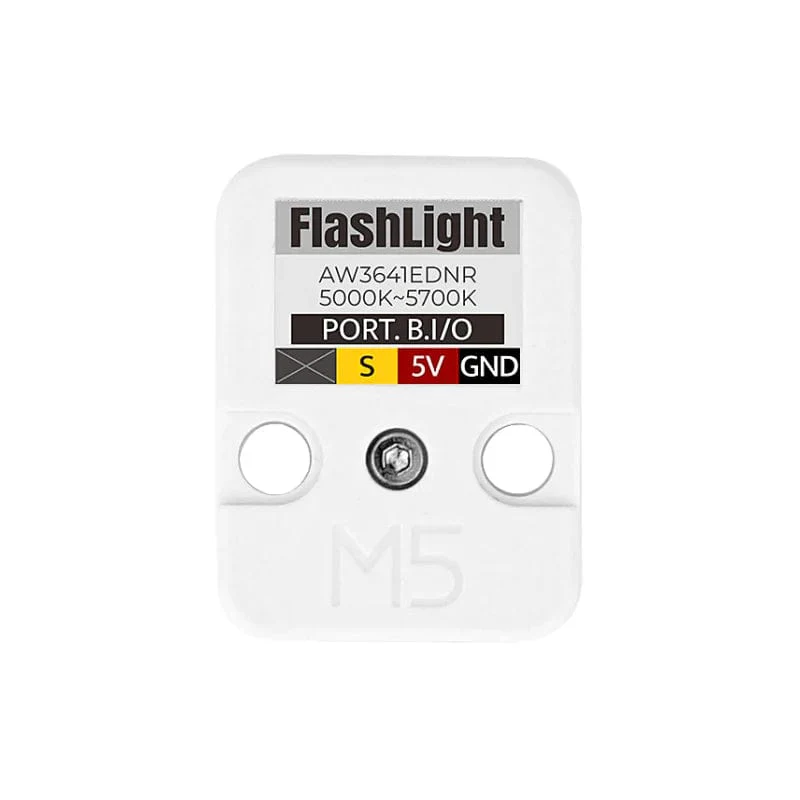

Flashlight Unit
The FlashLight Unit is an I/O Unit with built-in flash, including an AW3641 driver, and a white LED, with a colour temperature of 5000-5700K. There is a mode selection switch on the board, which can set the flash mode and the constant lighting mode. The communication interface is GPIO. This Unit can be used as a flash or lighting application.
Features
- PWM Brightness Adjustment Method
- Over-Temperature Protection
- Over-Voltage and Short-Circuit Protection
Package Contents
- 1x FlashLight Unit
- 1x HY2.0 - 4-pin Cable
Specifications
| Resources | Parameters |
| Driver chip | AW3641EDNR |
| Adjustment Mode | PWM |
| AW3641EDNR Operation Temperature Range | -40ā to +85ā |
| Unit Operation Temperature | 0ā to +40ā |
| Color Temperature | 5000K~5700Kļ¼Kevinļ¼ |

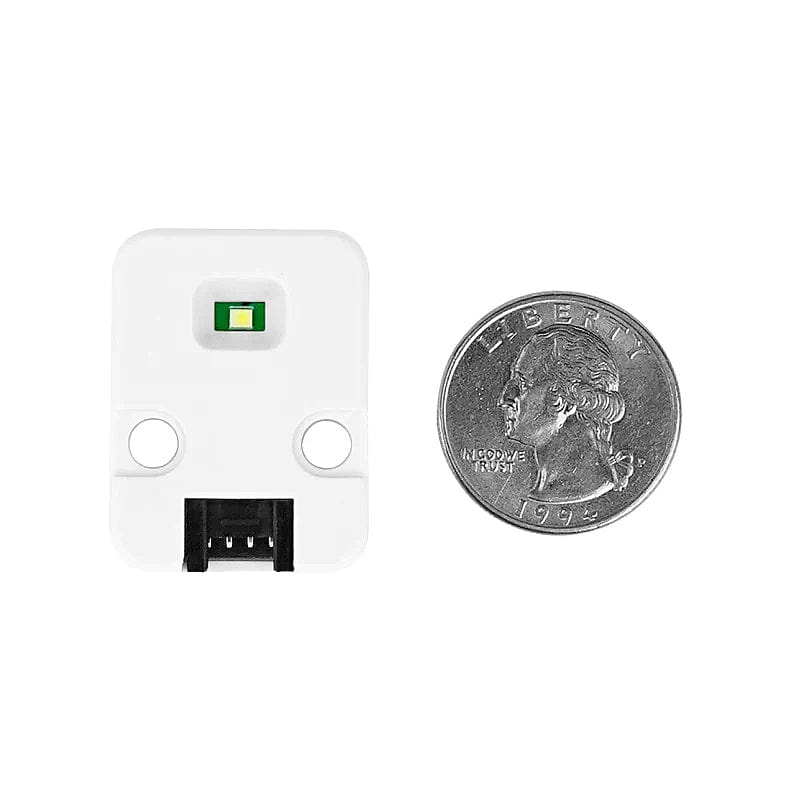

| Product Size | 32mm Ć 24mm Ć 8mm |
| Package Size | 67mm Ć 53mm Ć 12mm |
| Product Weight | 4.7g |
| Package Weight | 9.8g |
Resources
