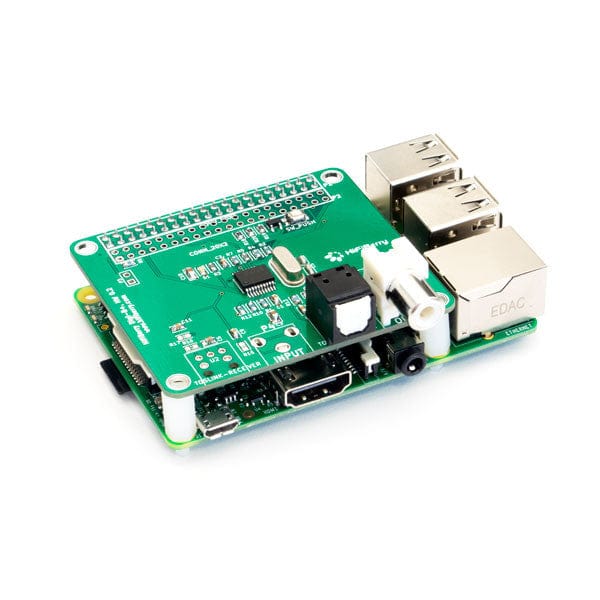

The HiFiBerry Digi+ transformer version is a high-quality S/PDIF output board for the Raspberry Pi (newer models with 40 pin GPIO connector). Additionally to the standard version, it features a fully galvanic isolation of the electrical output.

Facts

• Dedicated S/PDIF interface chip supports up to 192kHz/24bit resolution
• Optical (Toslink) and electrical outputs
• Full galvanic isolation between the Raspberry Pi and your DAC on the electrical output
• Bit-perfect output, audio data stream will not be modified in any way
• Connects directly to the Raspberry Pi, no additional cables needed
• No soldering, comes as a pre-fabricated kit. You just plug it onto the Raspberry Pi, it is conform to
• the Raspberry Pi hardware-attached-on-top (HAT) specification.
• Compatible with Raspberry Pi models A+,B+, 2B and 3B
• Directly powered from the Raspberry Pi, no additional power supply
• Comes with all components required to mount it. We include 4 M2.5x12mm spacers to fix the board
• onto the Raspberry Pi
