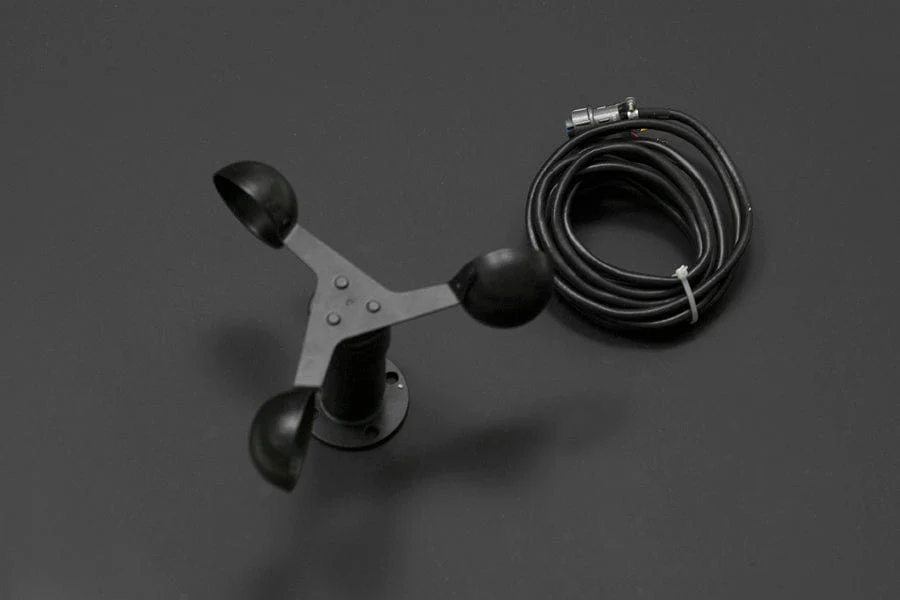

Anemometer Kit (0-5V)
Specification
- Model:JL-FS2
- Type:three cups
- Output signal range:0-5V (Voltage signal)
- Supply voltage: DC12-24V
- Power consumption:Voltage MAX≤0.3W
- Start wind speed:0.4-0.8m/s
- Resolution:0.1m/s
- Effective measurement range:0-30m/s
- System error:±3%
- Transmission distance: No more than 8 meters
- Transmission medium: Cable transmission
- Connection mode:Three wires
- Working temperature:-40℃~80℃
- Wiring map:VCC (Red), GND (Black),Voltage (Yellow), Current (Blue)
- Weight:1Kg
Documents
- Wiki Doc

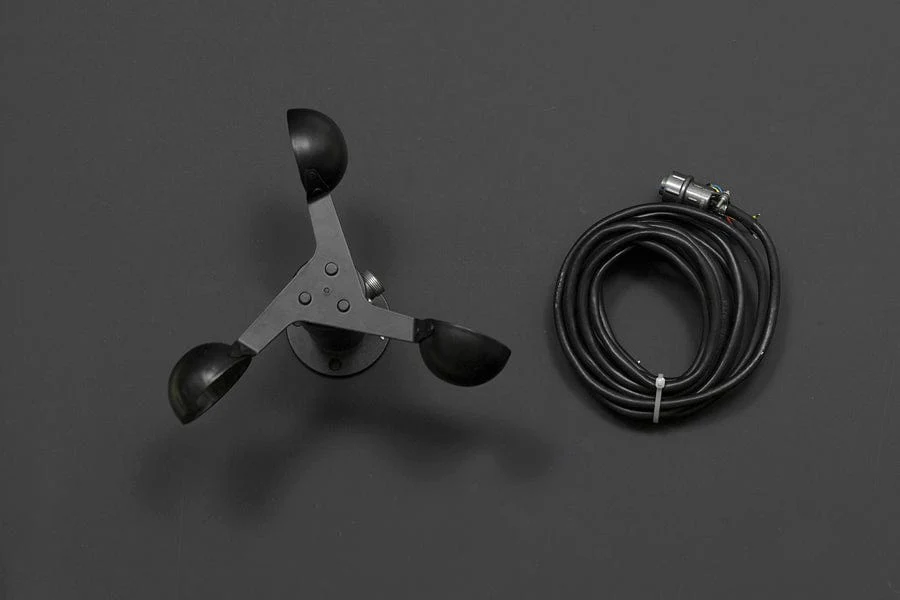

Shipping List
- Anemometer x1
- Waterproof connector and 3m standard cable x1
- Screw Kit x1
Product Information
Product Information
Shipping & Returns
Shipping & Returns


Anemometer Kit (0-5V)
Anemometer Kit (0-5V)
Specification
- Model:JL-FS2
- Type:three cups
- Output signal range:0-5V (Voltage signal)
- Supply voltage: DC12-24V
- Power consumption:Voltage MAX≤0.3W
- Start wind speed:0.4-0.8m/s
- Resolution:0.1m/s
- Effective measurement range:0-30m/s
- System error:±3%
- Transmission distance: No more than 8 meters
- Transmission medium: Cable transmission
- Connection mode:Three wires
- Working temperature:-40℃~80℃
- Wiring map:VCC (Red), GND (Black),Voltage (Yellow), Current (Blue)
- Weight:1Kg
Documents
- Wiki Doc
Shipping List
- Anemometer x1
- Waterproof connector and 3m standard cable x1
- Screw Kit x1
Original: $65.36
-70%$65.36
$19.61Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Specification
- Model:JL-FS2
- Type:three cups
- Output signal range:0-5V (Voltage signal)
- Supply voltage: DC12-24V
- Power consumption:Voltage MAX≤0.3W
- Start wind speed:0.4-0.8m/s
- Resolution:0.1m/s
- Effective measurement range:0-30m/s
- System error:±3%
- Transmission distance: No more than 8 meters
- Transmission medium: Cable transmission
- Connection mode:Three wires
- Working temperature:-40℃~80℃
- Wiring map:VCC (Red), GND (Black),Voltage (Yellow), Current (Blue)
- Weight:1Kg
Documents
- Wiki Doc
Shipping List
- Anemometer x1
- Waterproof connector and 3m standard cable x1
- Screw Kit x1
