Adafruit SEN6x Breakout for Sensirion SEN66
Now you can quickly integrate theĀ Sensirion SEN6x environmental sensor nodeĀ into your microcontroller or microcomputer project, with no soldering or fiddly breadboarding - thanks to this hereĀ Adafruit SEN6x Adapter Breakout(for SEN66 and friends). We covered the awesomeĀ Sensirion SEN66 environmental sensor nodes on EYE ON NPIĀ a while ago; it's an awesome all-in-one air quality sensor, but it has the annoyance that it requires 3V power/logic, and it has a special cable connection.

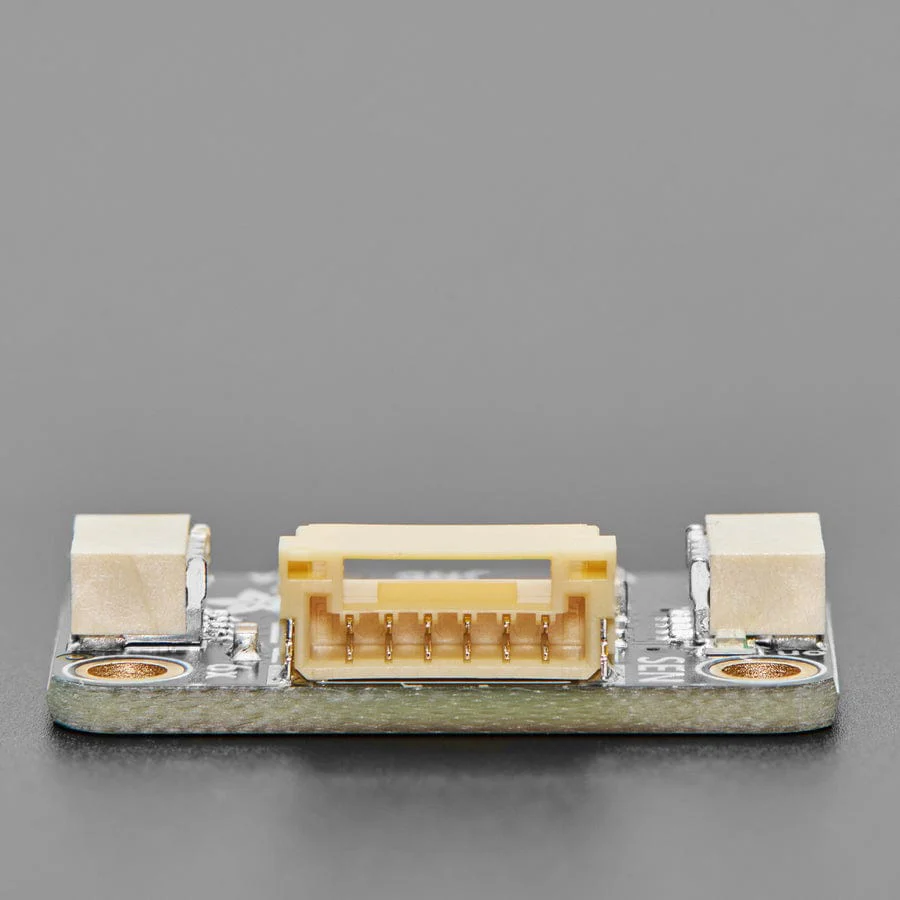

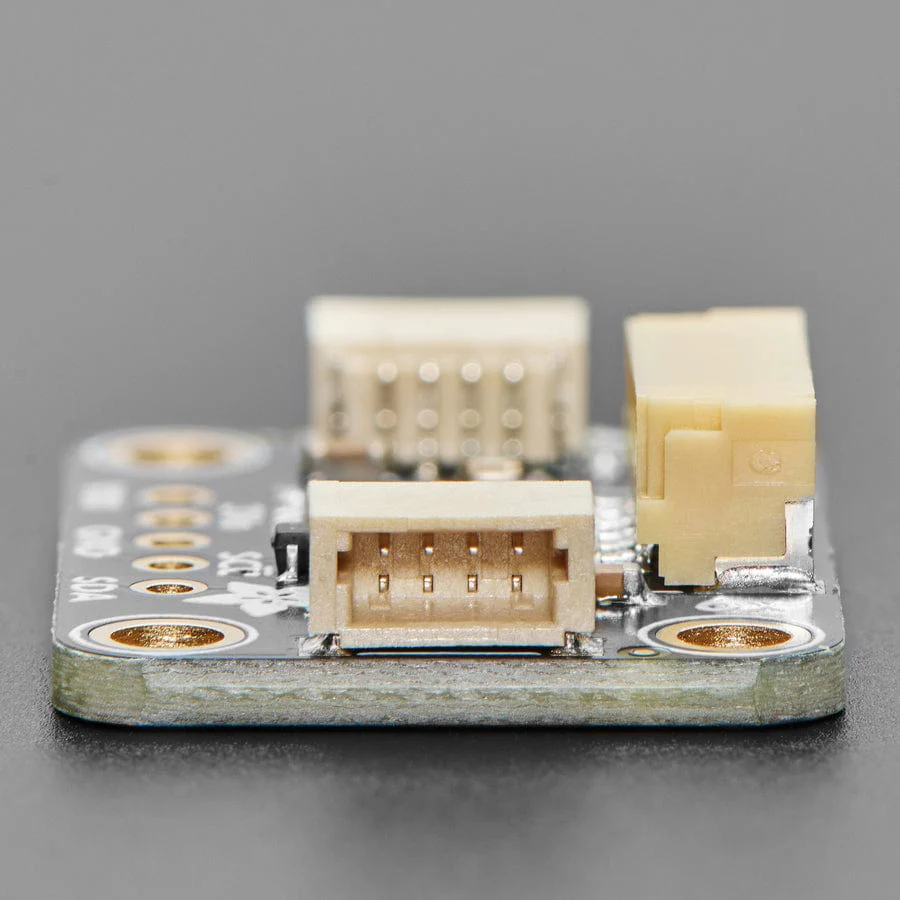

This adapter breakout will make an instant friendship with all SEN6x boards, thanks toĀ a JST GH-compatible connector in the middle so that you can plug aĀ 6-pin GH cableĀ directly between your SEN6xĀ and this adapter. In the middle is a clean 3.3V regulator and level shifter, so you can use this moduleĀ whether you're using 3.3V or 5V power and logic.Ā Then you can use any ol' STEMMA QT cableĀ to plug into your Metro, Feather, QT Py, Raspberry Pi,Ā etc, etc. I2C port.

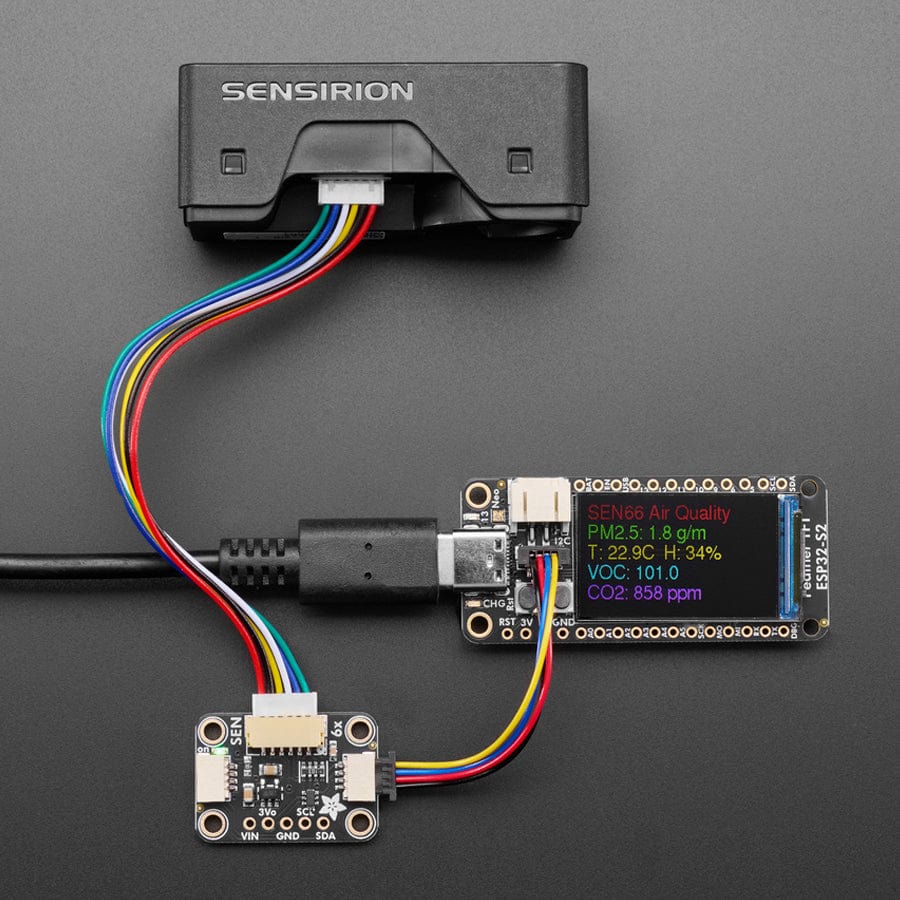

Once you've got it plugged together, you can run Sensirion'sĀ Arduino libraryĀ orĀ Raspberry Pi Python libraryĀ to read temperature, humidity, VOC, Particulate Matter PM1 / PM2.5 / PM4, and PM10. (NOx reading is also available on the SEN55)
Note: SEN66 sensor and JST-GH cable not included
Specifications
- Product Dimensions: 25.6mm x 17.8mm x 5.9mm
- Product Weight: 2.0g
Resources
- Primary Guide: Adafruit SEN6x Breakout
Package Contents
- 1x Adafruit SEN6x Breakout for Sensirion SEN66
SEN66 sensor and JST-GH cable not included
