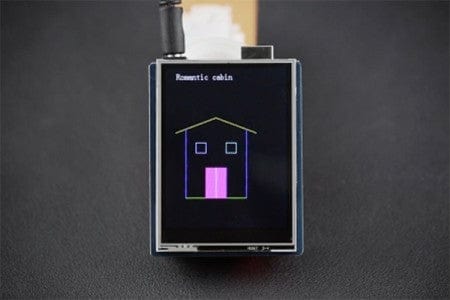

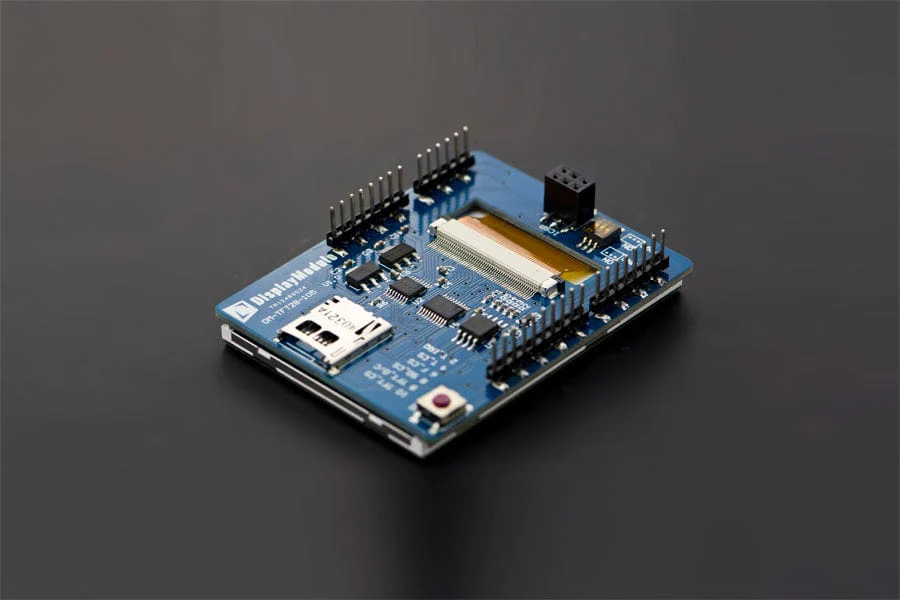

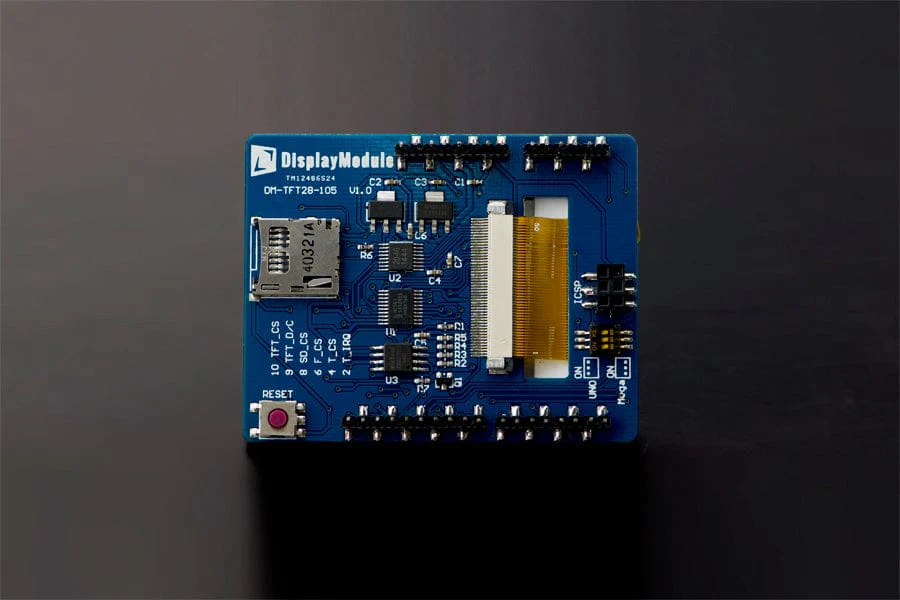

Add some flavour to your Arduino / mbed project with this large colourful touch screen. This TFT Touch screen is a fantastic shield with big (2.8" diagonal) and 240x320 pixels with individual pixel control which could apply to Arduino and mbed. It also comes with micro SD slot and 4MB flash so you could add it easily to your projects with this 2.8" TFT Touch screen.

Specification

• Model: DM-TFT28-105
• Display size: 2.8"
• Operating voltage: 3.3V or 5V
• Resolution ratio: 240x320
• Communication Interface: SPI
• Flash memory: 4MB
• Operating temperature: -10~70℃

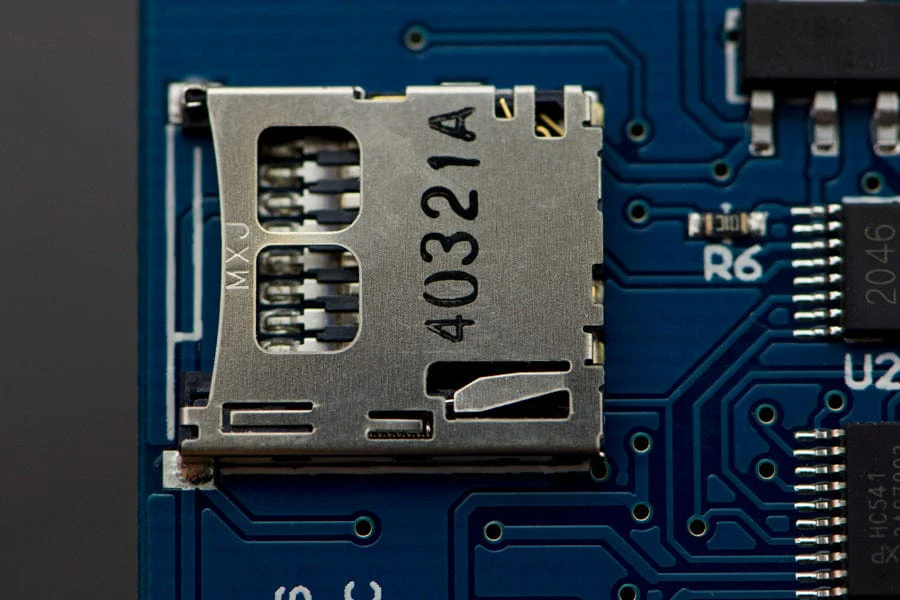

• Support micro-SD card
• Support both arduino and mbed
• Size: 55*70 (W*H)mm (2.17*2.76")
• Viewing area：43.2*57.6 (W*H)mm (1.70*2.27")
• Weight: 40g

• WIKI (2.8" TFT Touch Shield with 4MB Flash for Arduino)
• Arduino library
• Schematic
• DM-TFT28-105 Dimension
• Chip Datasheets
• 2D Models

• 2.8" TFT Touch Shield with 4MB Flash for Arduino and mbed x1
