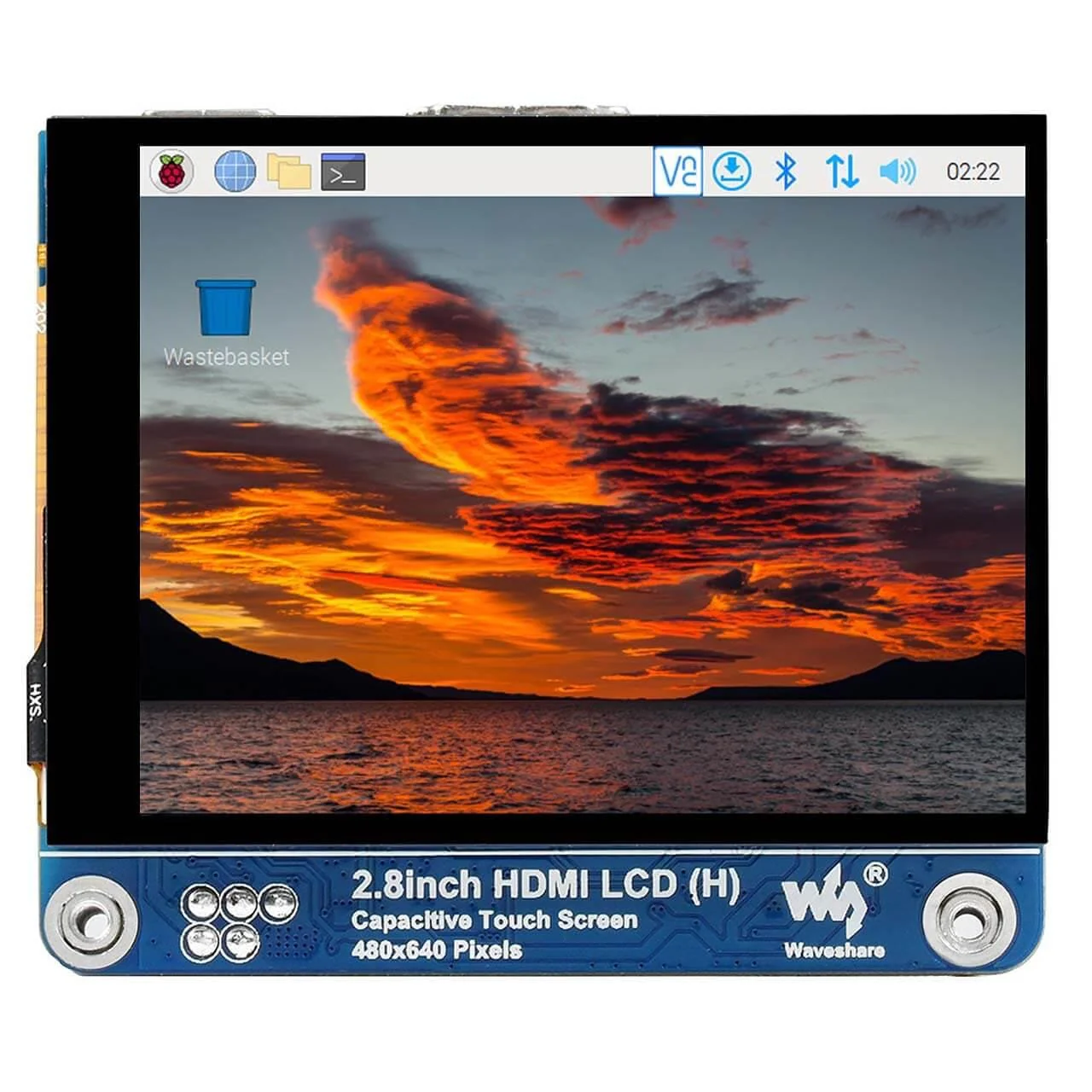

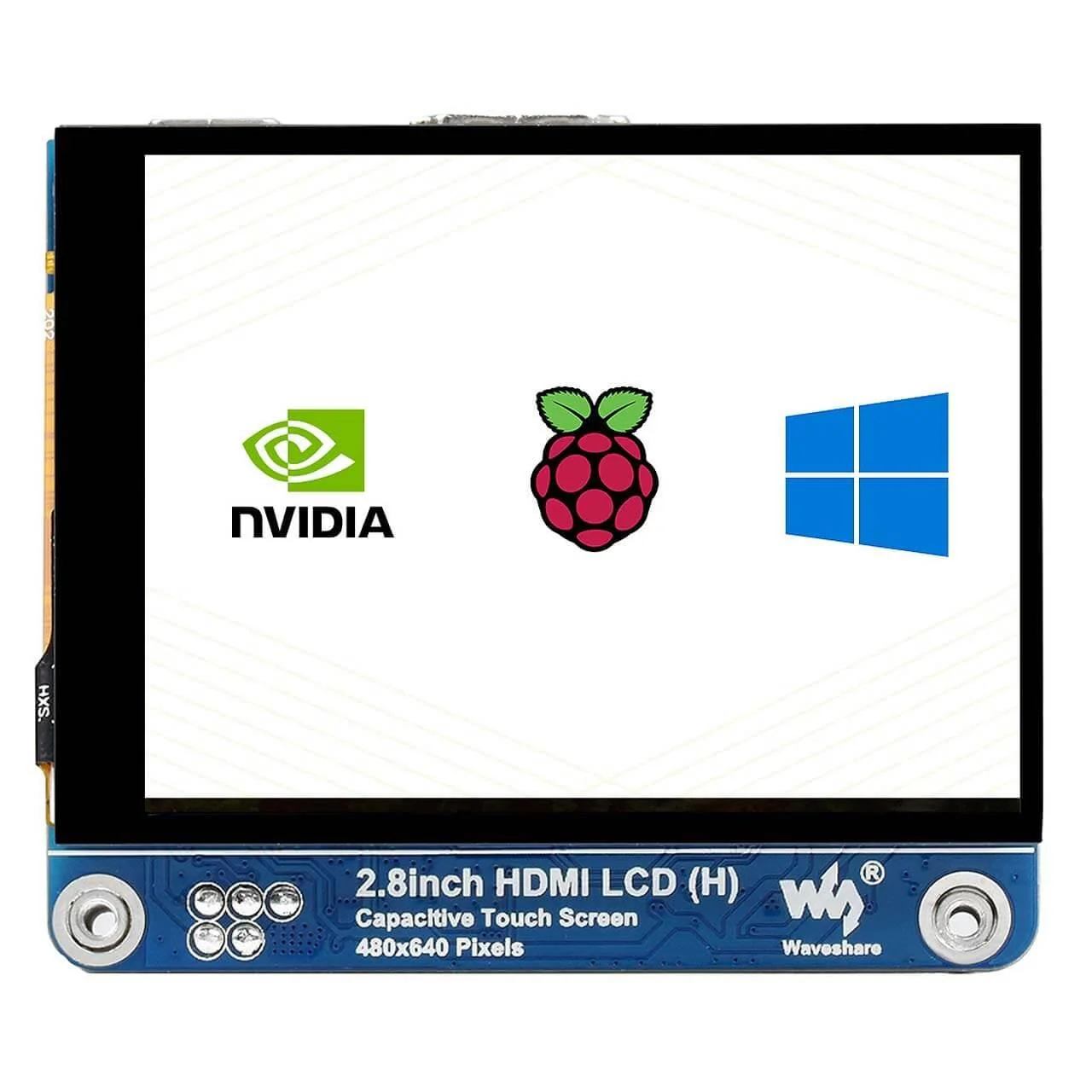

This little display packs lots of convenient features making this a superb mini display for any Raspberry Pi project. In fact, thanks to the HDMI connection and USB-C touch interface, you can even use it with your Jetson Nano or Windows PC.

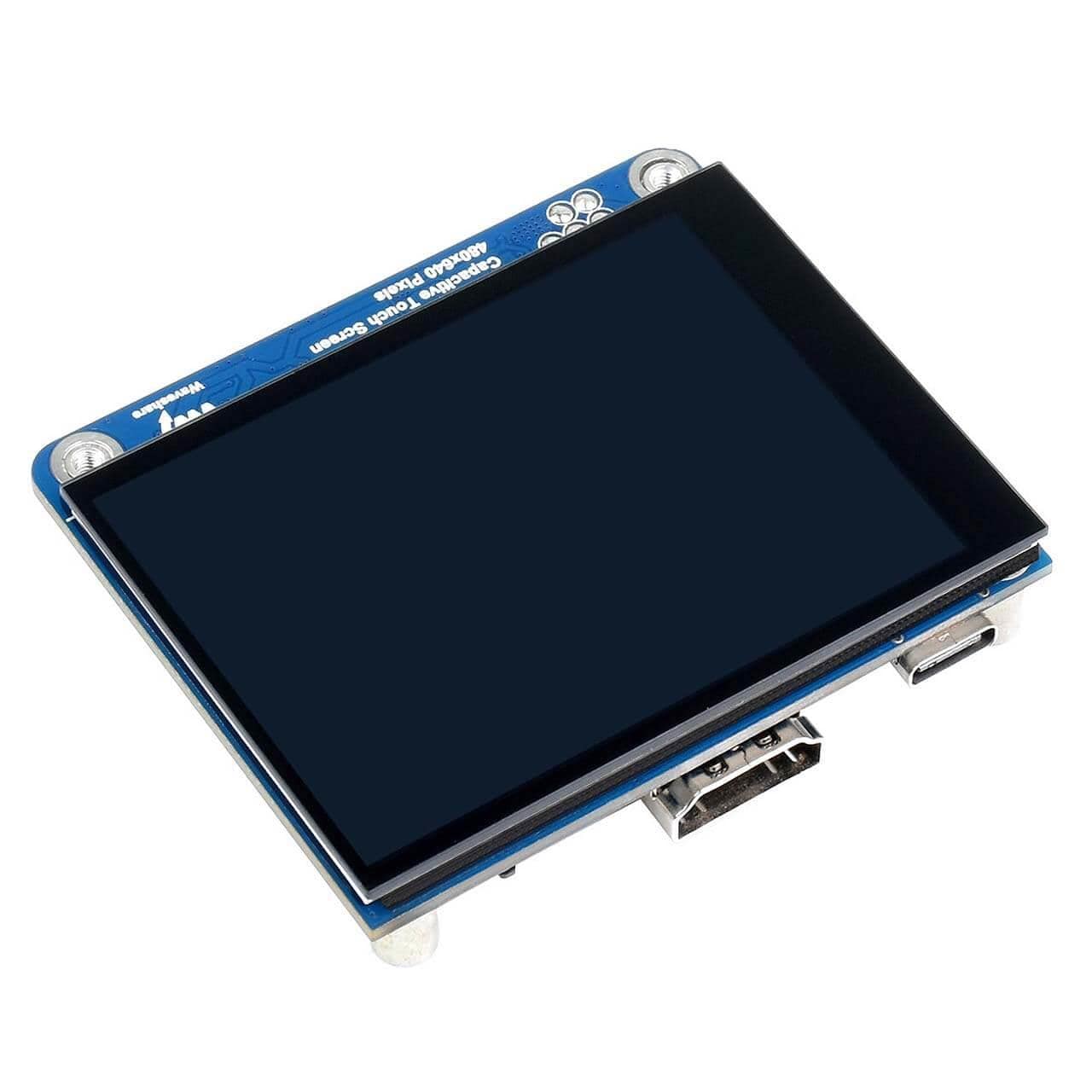

The display is a 2.8" IPS panel and holds a respectable 640x480 resolution with 160° viewing angles. The backlight is also adjustable via buttons on the side, allowing you to turn it up, down or off completely.

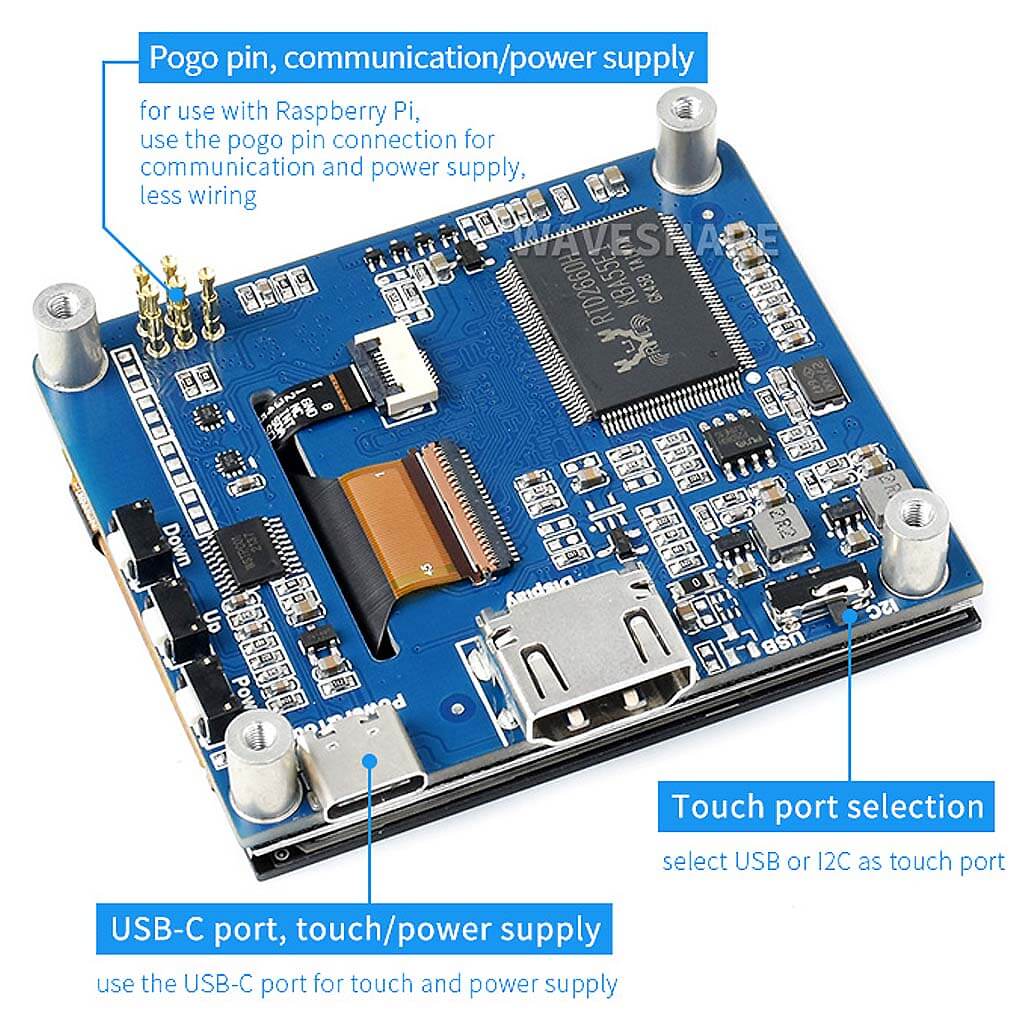

It's not only great to look at - it's also good to touch! The display has 5-point (device/OS dependant) capacitive touch which can be controlled via Pogo Pins when attached to a Raspberry Pi, removing the clutter of a USB cable. All other devices can use the USB-C port for the touch interface (USB-C cable included). Touch port selection (Pogo/USB) is also possible via the onboard slide switch.

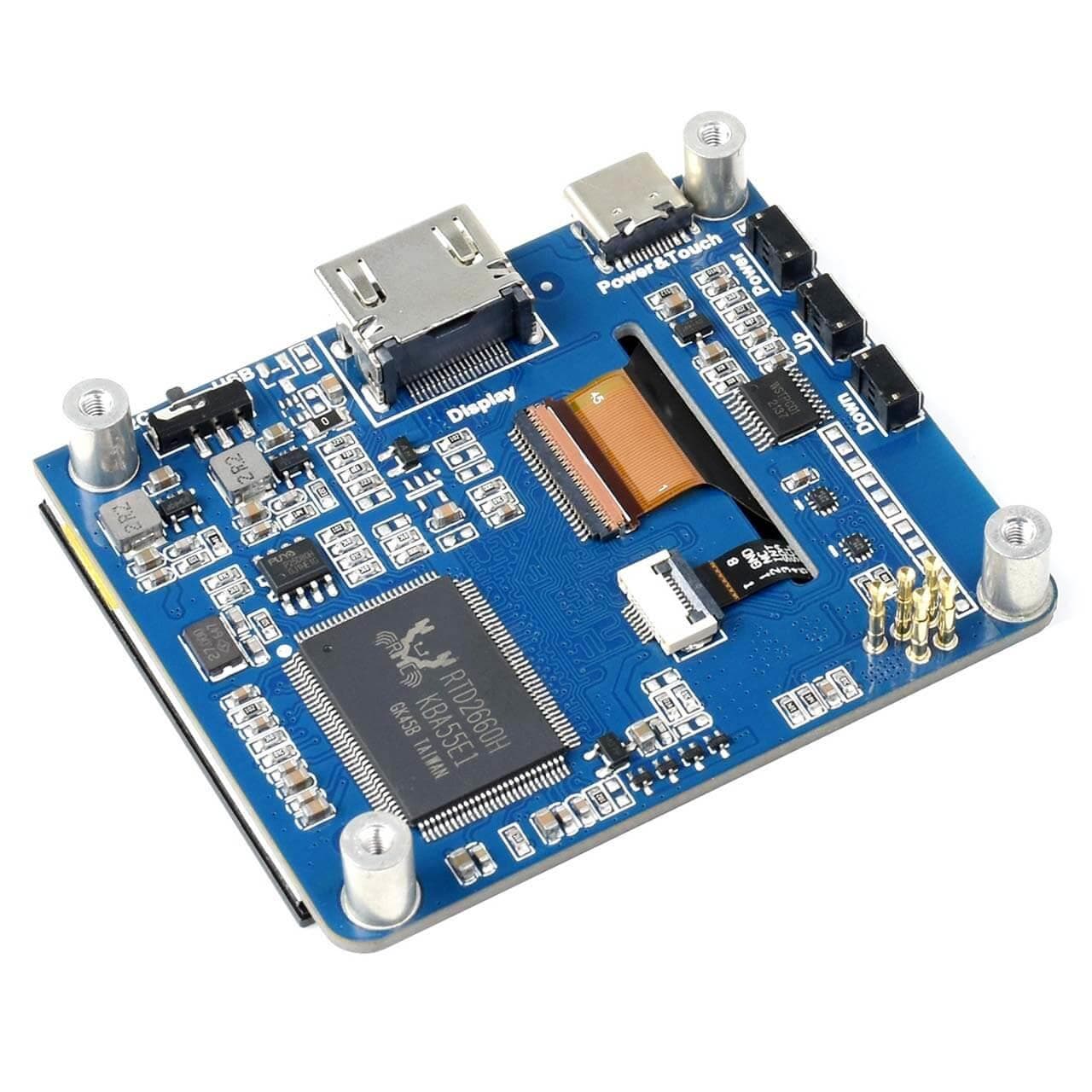

Similarly, the display is fed via a full-size HDMI port on the side of the board. Compact HDMI adapters are included for the Raspberry Pi 4 and 3, whilst all other devices can use the included HDMI cable.

Features

• 2.8" IPS HDMI display
• Compatible with Raspberry Pi 4/3
• 5-point capacitive touch
• 640x480 resolution
• 160° viewing angles
• USB-C touch interface
• Pogo pin touch interface for Raspberry Pi
• Backlight control via onboard buttons
• Touch port selector switch
• Toughened glass
• Cables, adapters and fixings included
• Online development resources
• Dimensions: 65.7mm x 56mm

Package Contents

• 1x 2.8" HDMI LCD (H)

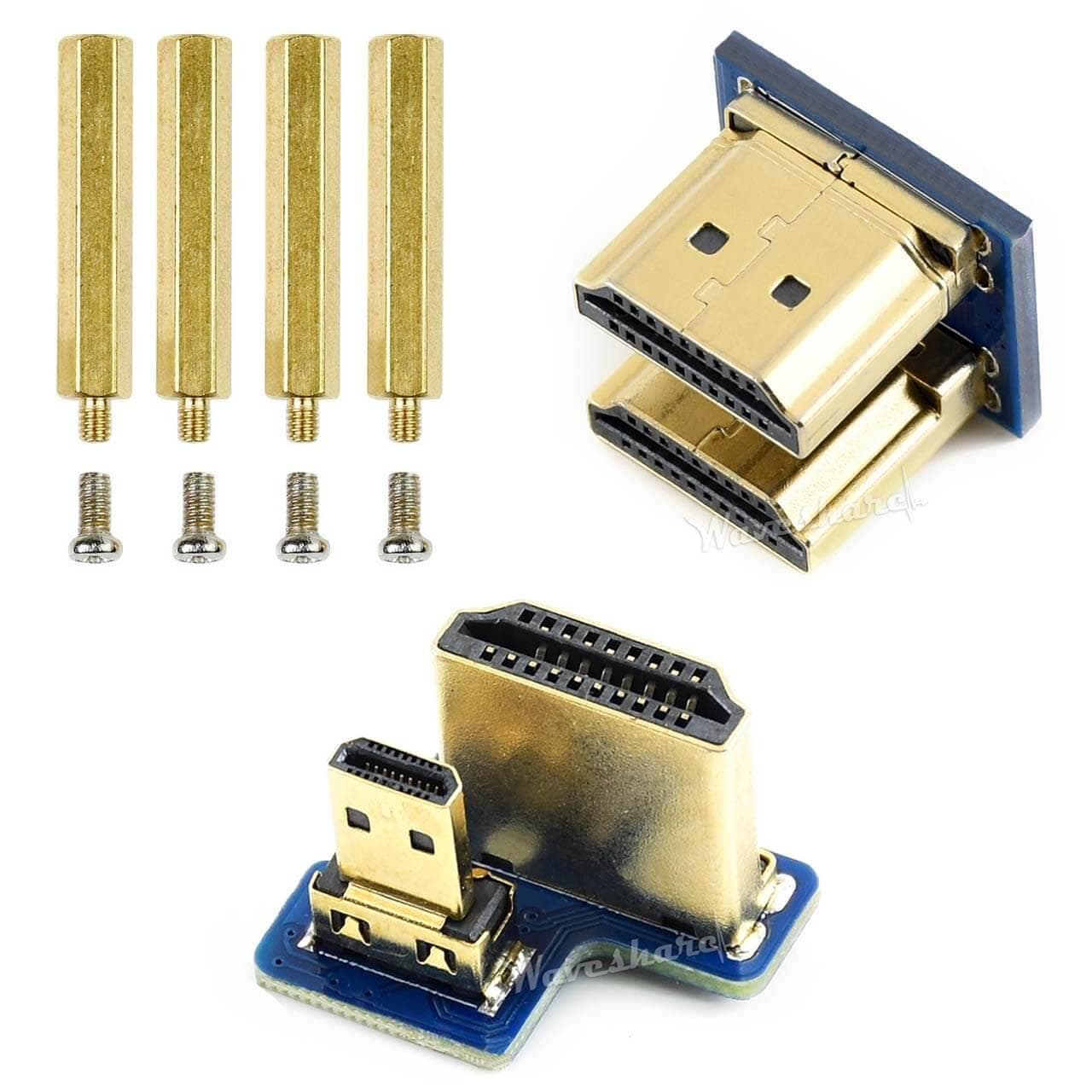

• 1x HDMI Adapter (C)
• 1x HDMI Adapter (B)
• 1x HDMI cable
• 1x USB-A to USB-C cable
• 1x Screws/Standoffs pack

Raspberry Pi not included

Resources

• Product Wiki
