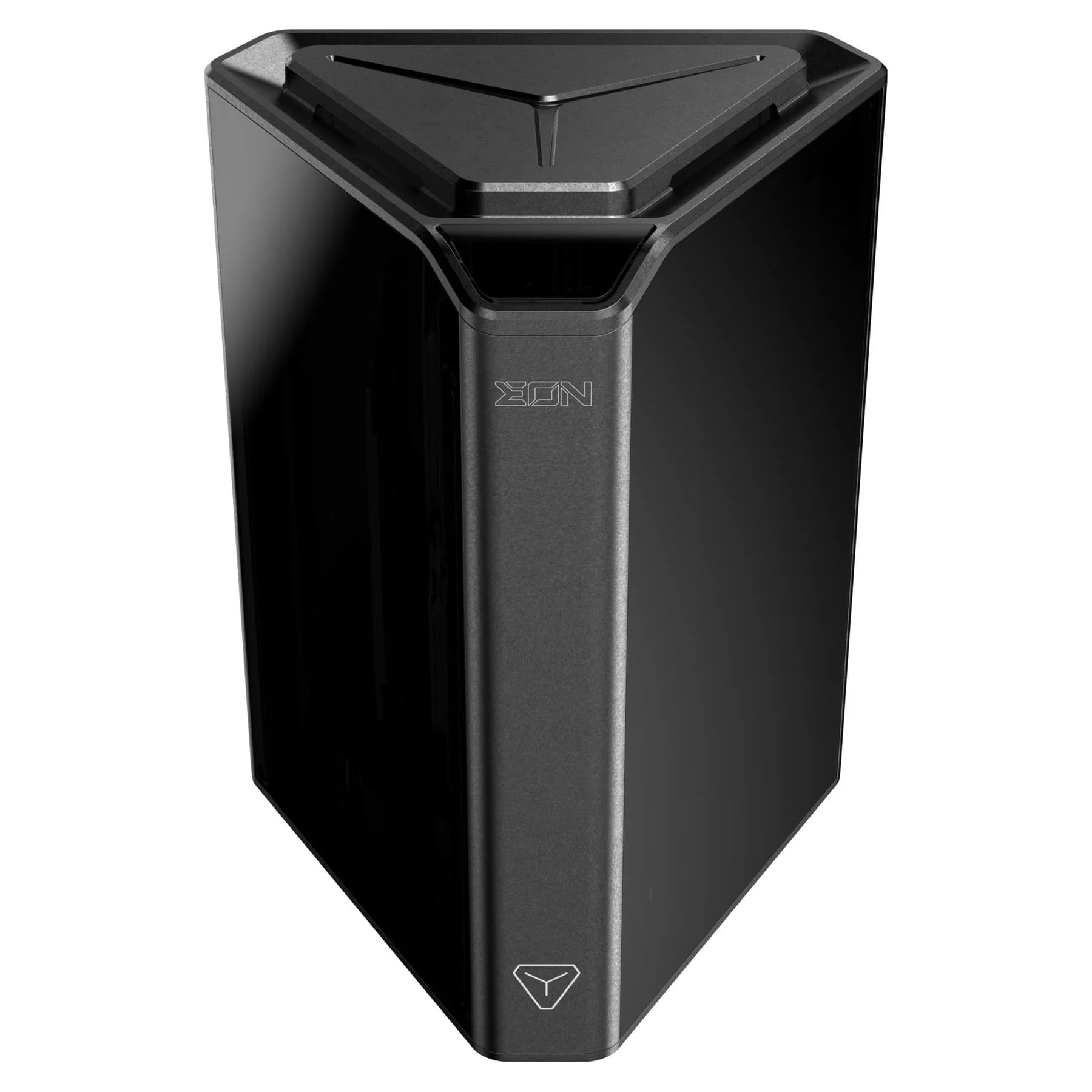

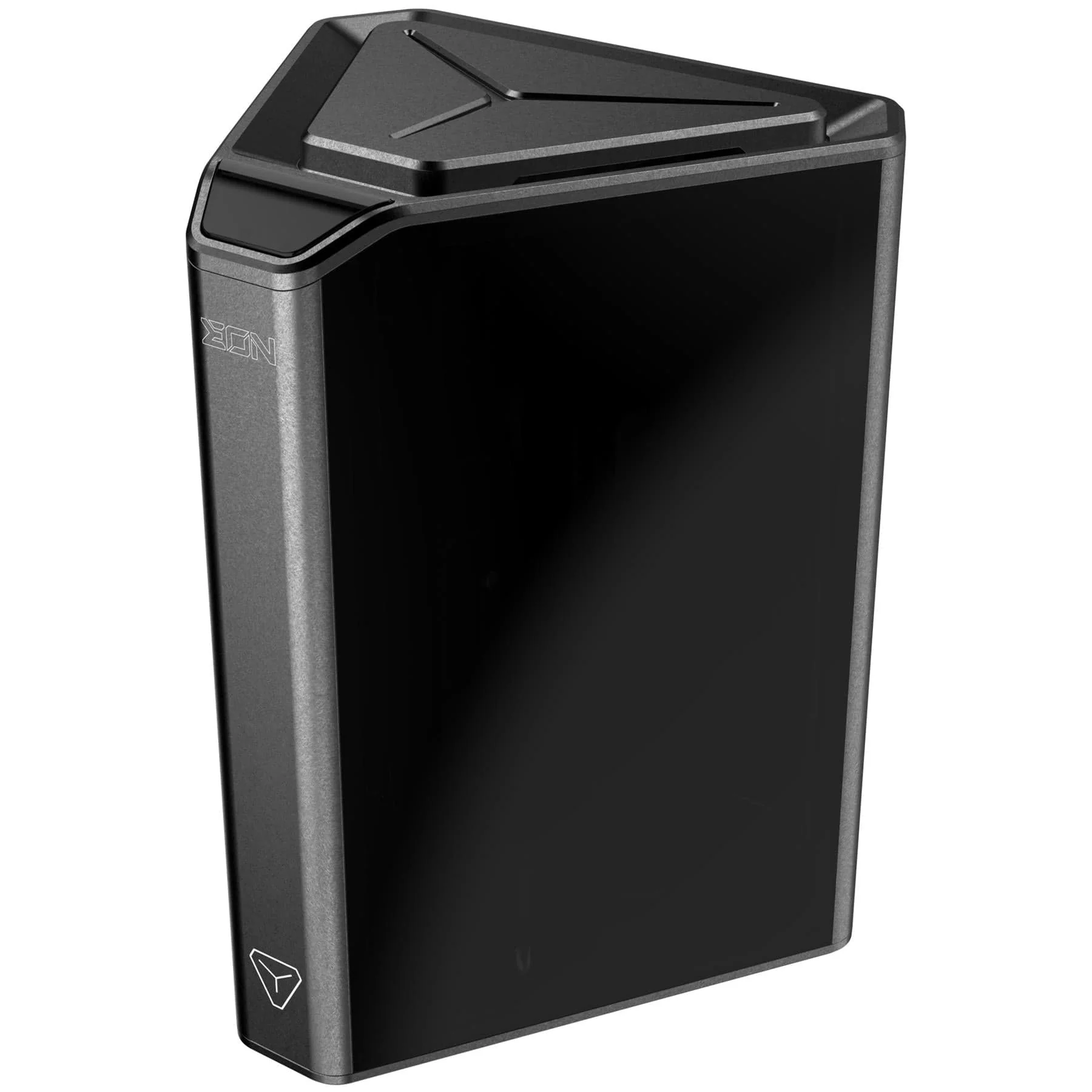

The Argon EON case for the Raspberry Pi 4 (not included) allows you to build your very own 4-bay Raspberry Pi NAS!

Described as a BYO-NAS (Build Your Own Network Attached Storage), at the heart of the Argon EON are its 4-Bay SATA Hard Drive ports that will allow you to fit two 3.5” SATA HDDs and two 2.5” SATA HDD/SSDs at the same time (or 4x 2.5" SSDs). The maximum rated capacity of each HDD bay is 10TB** for a total of 40TB capacity! You can use existing drives with data already on them if the format/partition is readable by Linux/Raspberry Pi OS.

The design of the Argon EON makes use of space-grade aluminium allowing ultra-modern angular forms without compromising the rigidity and structural stability of the enclosure. The aluminium body naturally conducts and dissipates heat which is backed up by a built-in controllable 60mm fan to cool both the Raspberry Pi and hard disks even at heavy loads.

A programmable OLED Display is neatly situated under the multi-function power button to allow for seamless integration with the case. The OLED can display your IP address, CPU status and other functions required for the operation of your NAS. A real-time clock (RTC) is also built into the case allowing you to maintain accurate time and schedule tasks.

The Argon EON has all ports systematically situated at the back of the unit to hide unsightly cables, including easy access to the MicroSD card and GPIO pins via a removable cover. The Raspberry Pi's dual Micro-HDMI are also converted to full-size HDMI.

A UK 3-pin 12V 5A power supply is included in the package. This powers the entire unit including your Raspberry Pi - no other power supply is required.

Raspberry Pi and SSD/HDD are not included.

Features

4- BAY SATA Board:
- Compatible with 2.5” HDD or SSD (max 4 units);
- 3.5” HDD (max 2 units);
- Single Drive capacity 18TB**
Multi-function power button and OLED display
Active cooling via built-in 60mm system fan
Passive cooling via aluminium body
2 full-size HDMI Out
Rear access to 40-PIN GPIO
Rear access to SD Card slot
Built-in Real Time Clock
Internal USB-Hub Access for NVMe Expansion Drive
Internal access for custom add-on Display

** Whilst Argon have rated the enclosure at 10TB per slot, 18TB drives have been used and tested by the Argon team - however we assume the more reserved 10TB per slot limit is to allow headroom to account for the vast range of different disks with different power consumption ratings in existence. Your mileage may vary over the 10TB specified limit!

Resources

Package Contents

1x Argon EON case
1x 12V 5A UK power supply
1x Screwdriver

Raspberry Pi and SSD/HDD are not included.

Specifications

Power requirement: 12V 5A, 60 Watts (UK Power Supply Included)
Input 110-240V AC
Material: Cast aluminium and Extruded aluminium
Packing Weight: 2Kg
Dimensions: 145mm x 164.5mm x 210mm
Compliant with EU 2002/95/EC RoHS directive
CE Certification

Specification Table

Operating System
Open Source	All Raspberry Pi 4 Compatible OS including: - Raspberry Pi OS - Open Media Vault - Twister OS - Ubuntu for Raspberry Pi
Storage
Drive Bays	4
Compatible Drive Type	2.5" SATA HDD (Max 4 drives) 2.5" SATA SSD (Max 4 drives) 3.5" SATA HDD (Max 2 drives)
Max Single Volume Size	18 TB
External Ports
Via Raspberry Pi 4 (not included)	RJ-45 1GbE LAN Port x1
	USB 3.0 x2
	USB 2.0 x2
	Raspberry Pi 40- pin GPIO header
	HDMI ports - up to 4kp60 supported x2
	4-pole stereo audio and composite video port x1
	Micro-SD card slot x1
Other Specifications
OLED System Display	Multi-mode (software controlled)
System Fan	60mm x 60mm Brushless Motor
Fan Speed Mode	Multi-mode (upon installation of script)
Safe Shutdown Power Button	Multi-mode (upon installation of script)
Scheduled ON/OFF	Via built-in RTC (upon installation of script)
Power Supply Unit	12V 5A UK 3-pin plug, 60 Watts
AC Input Power Voltage	100V to 240V AC

Argon40 Products

Price

Collections

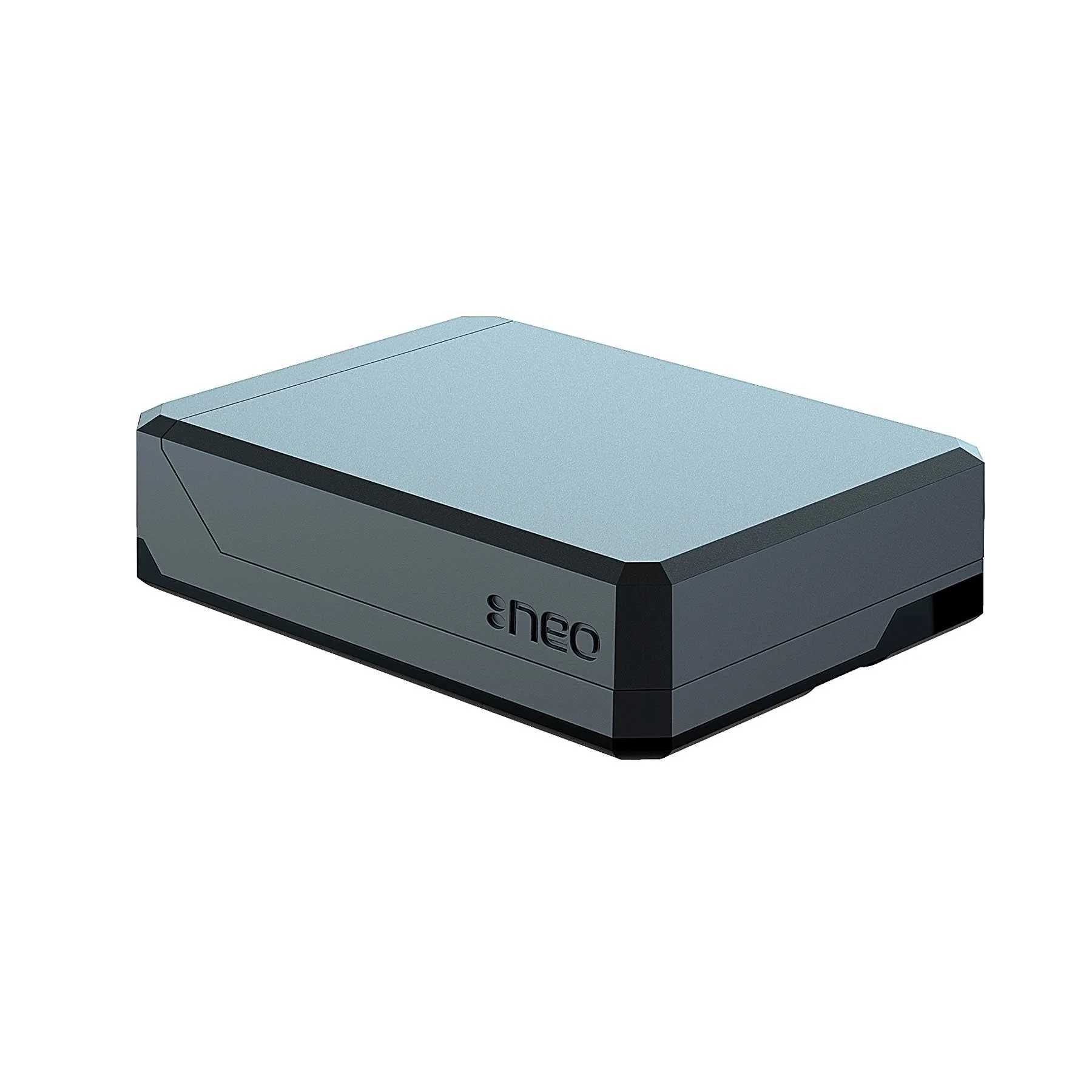

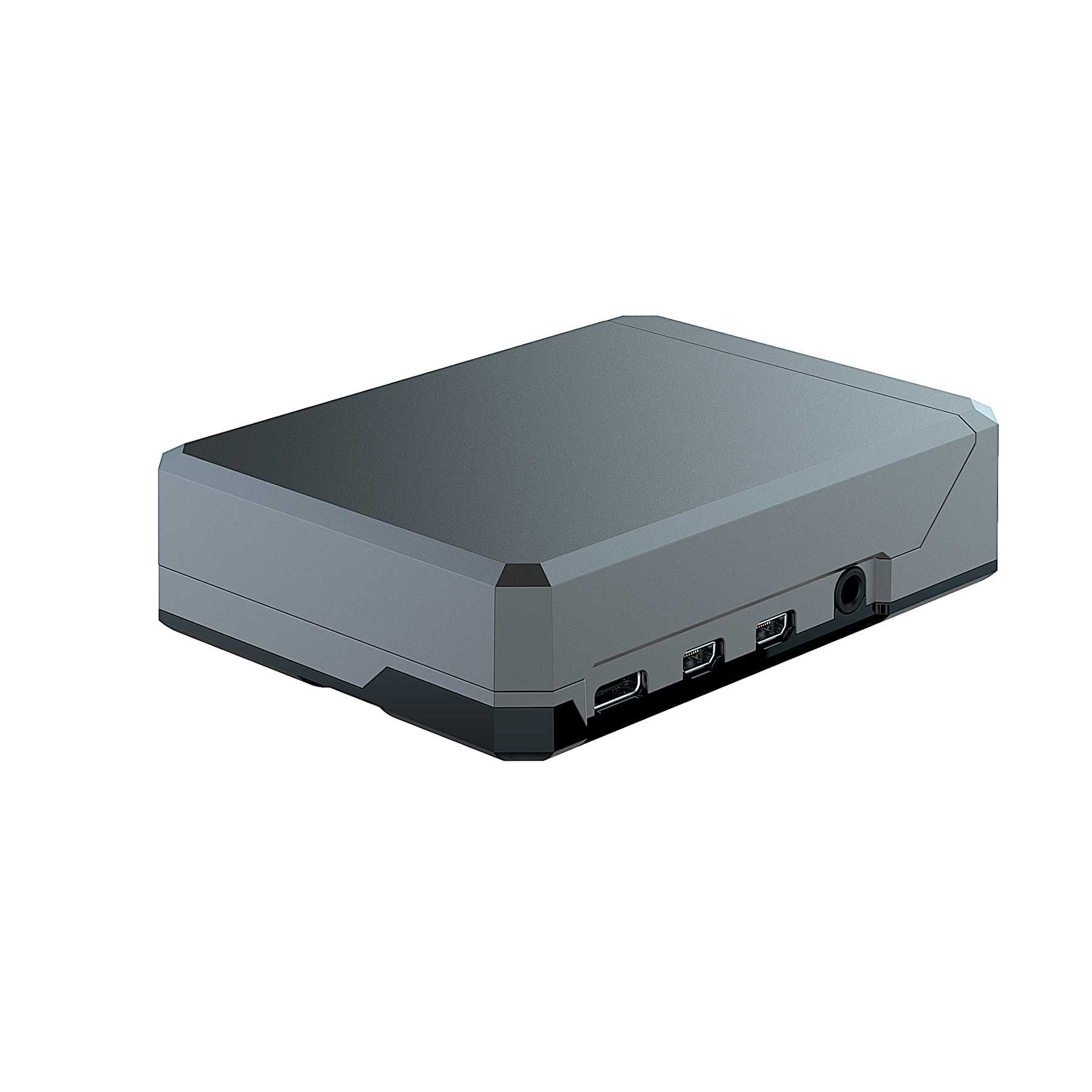

Argon NEO Raspberry Pi 4 Case

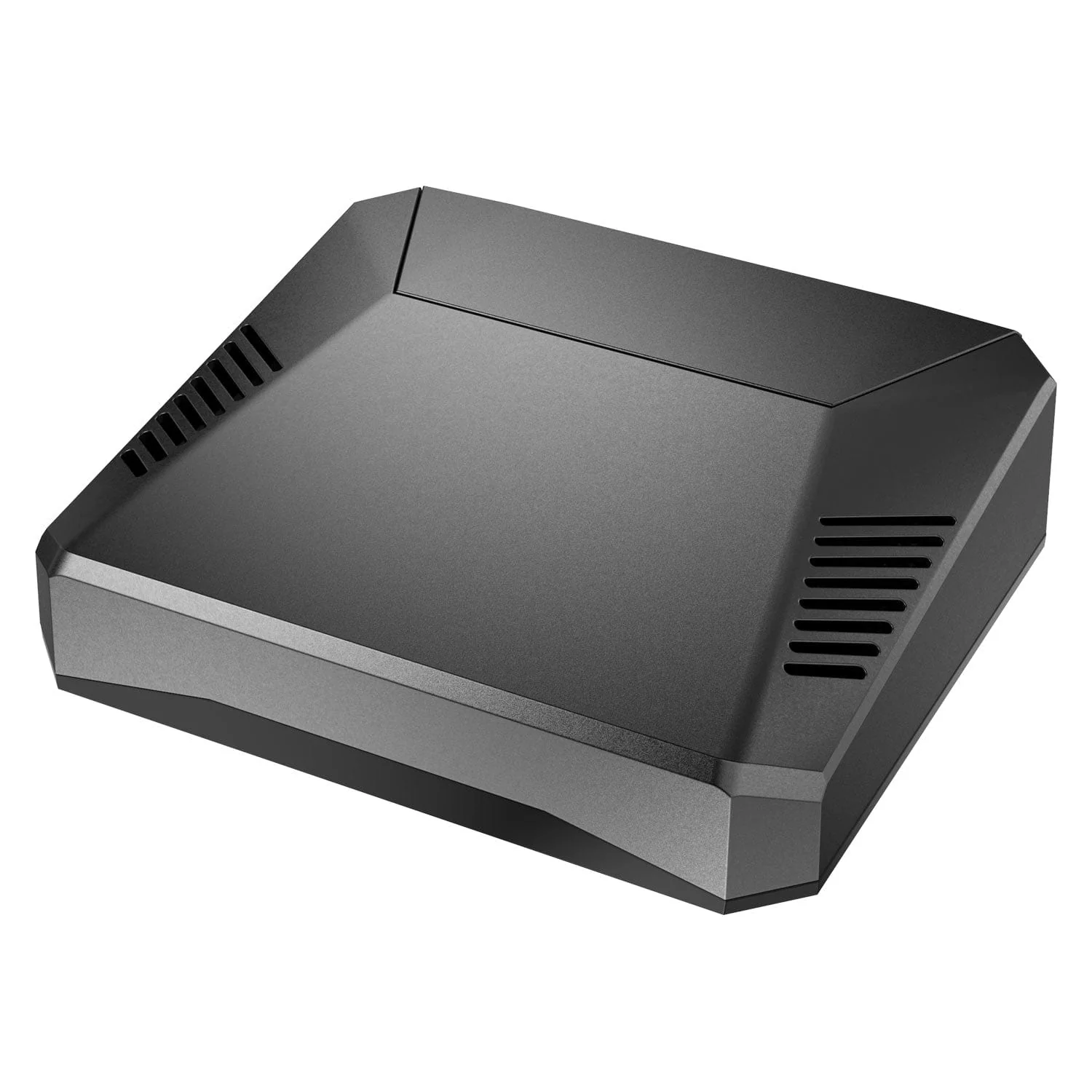

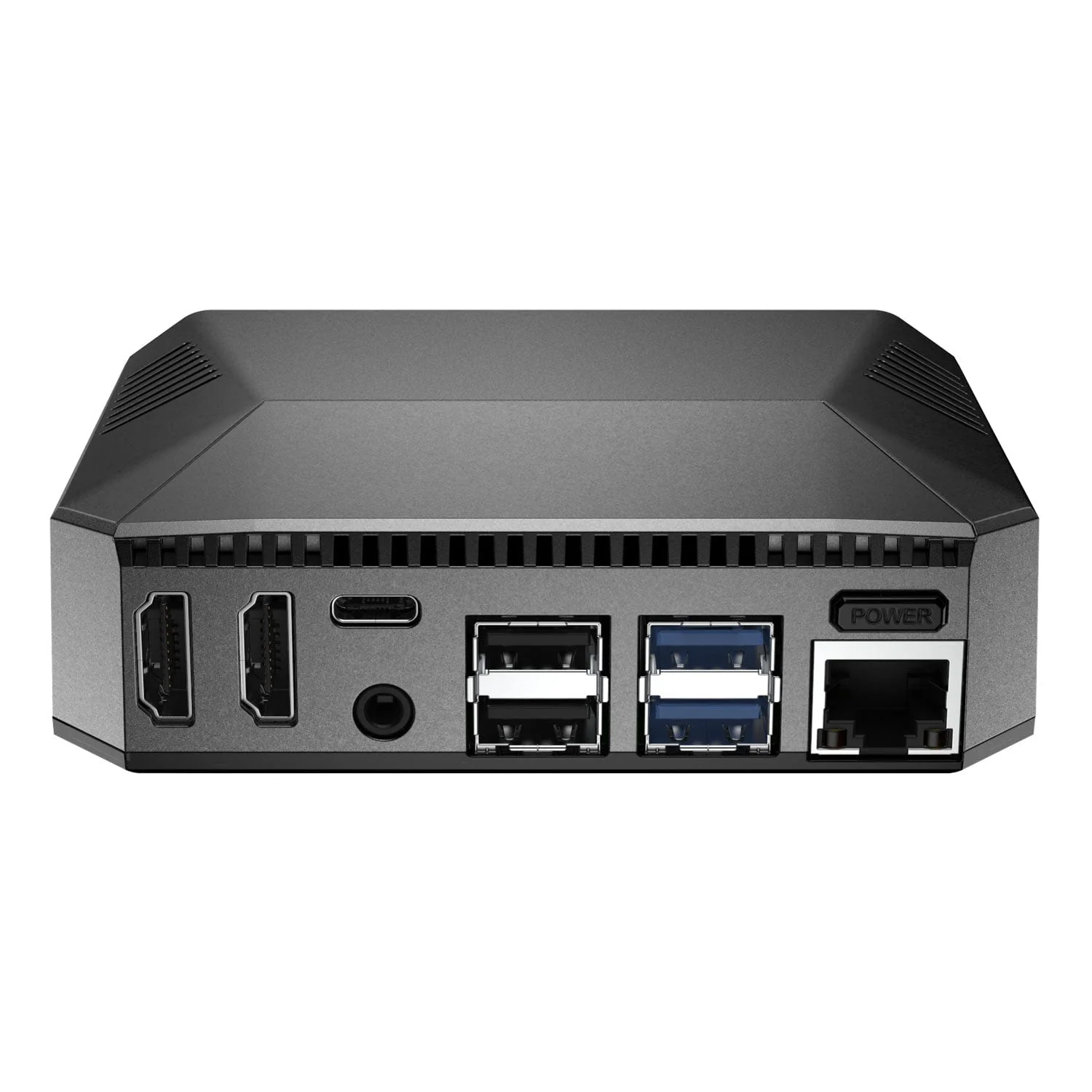

Argon ONE V2 Raspberry Pi 4 Case

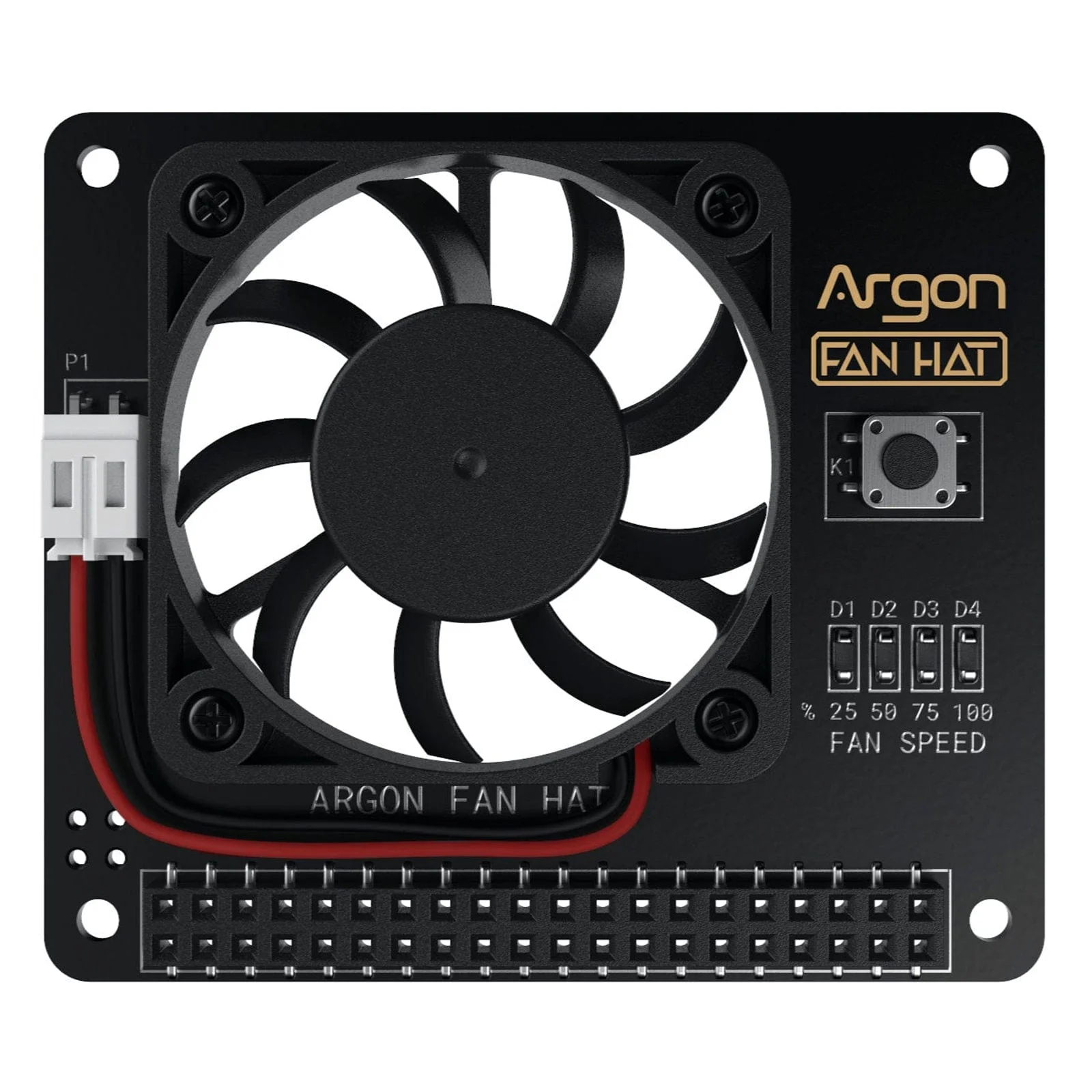

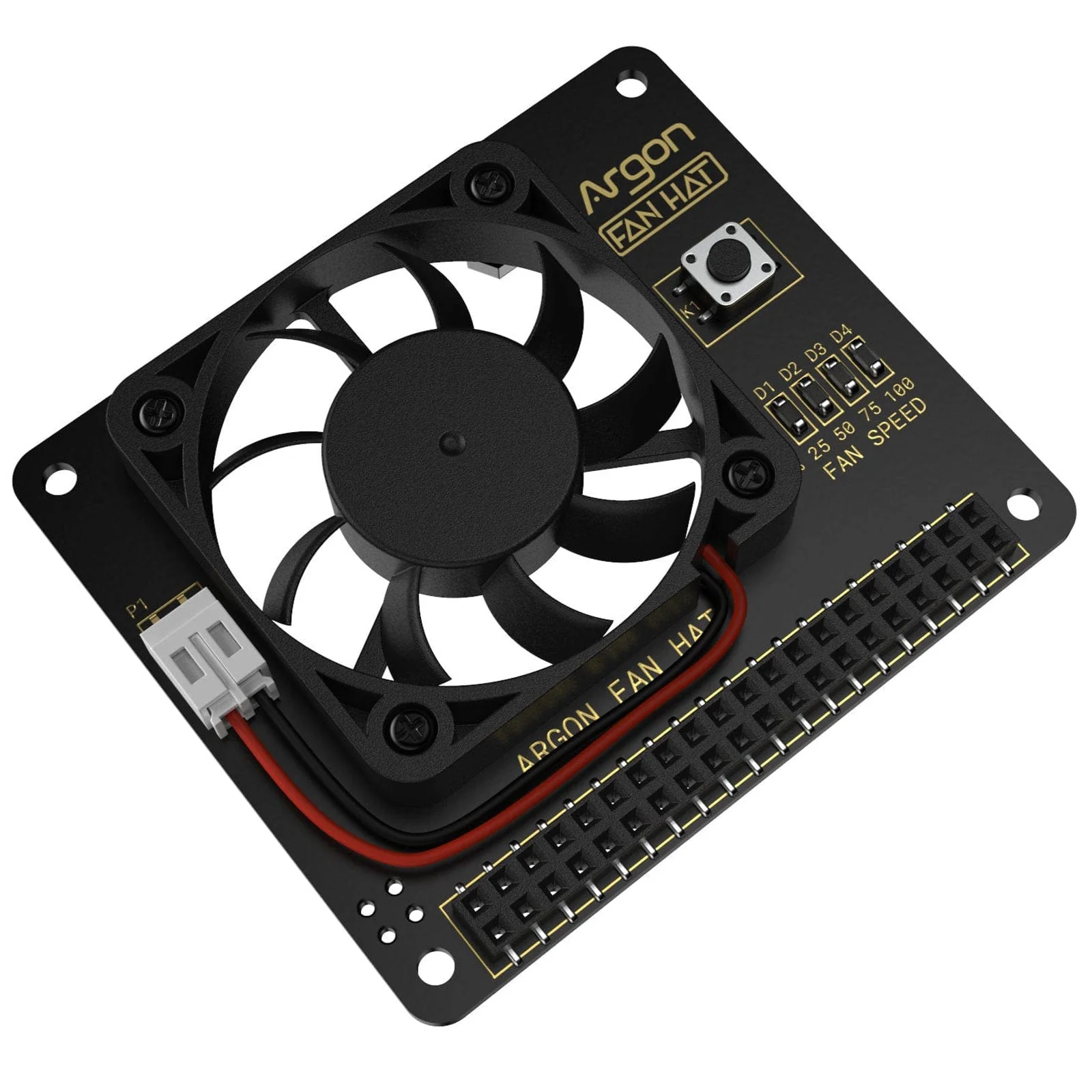

Argon Fan HAT

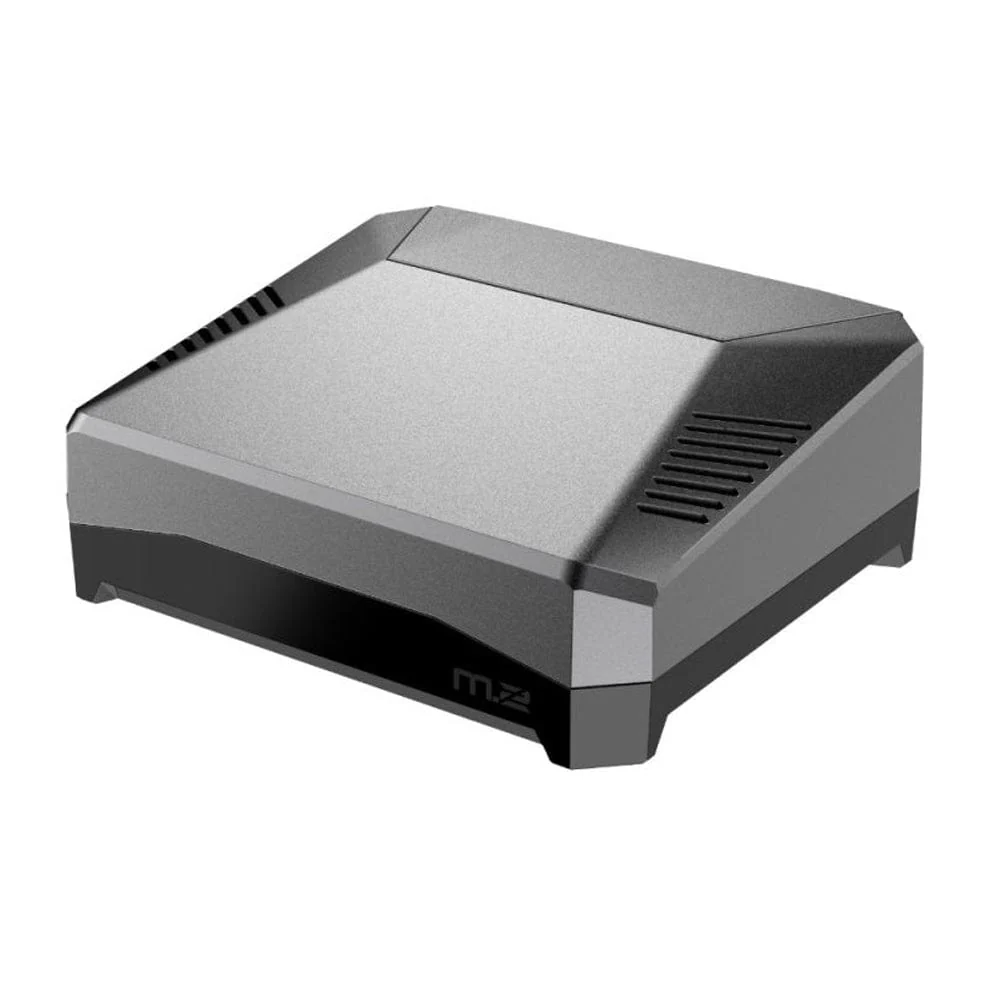

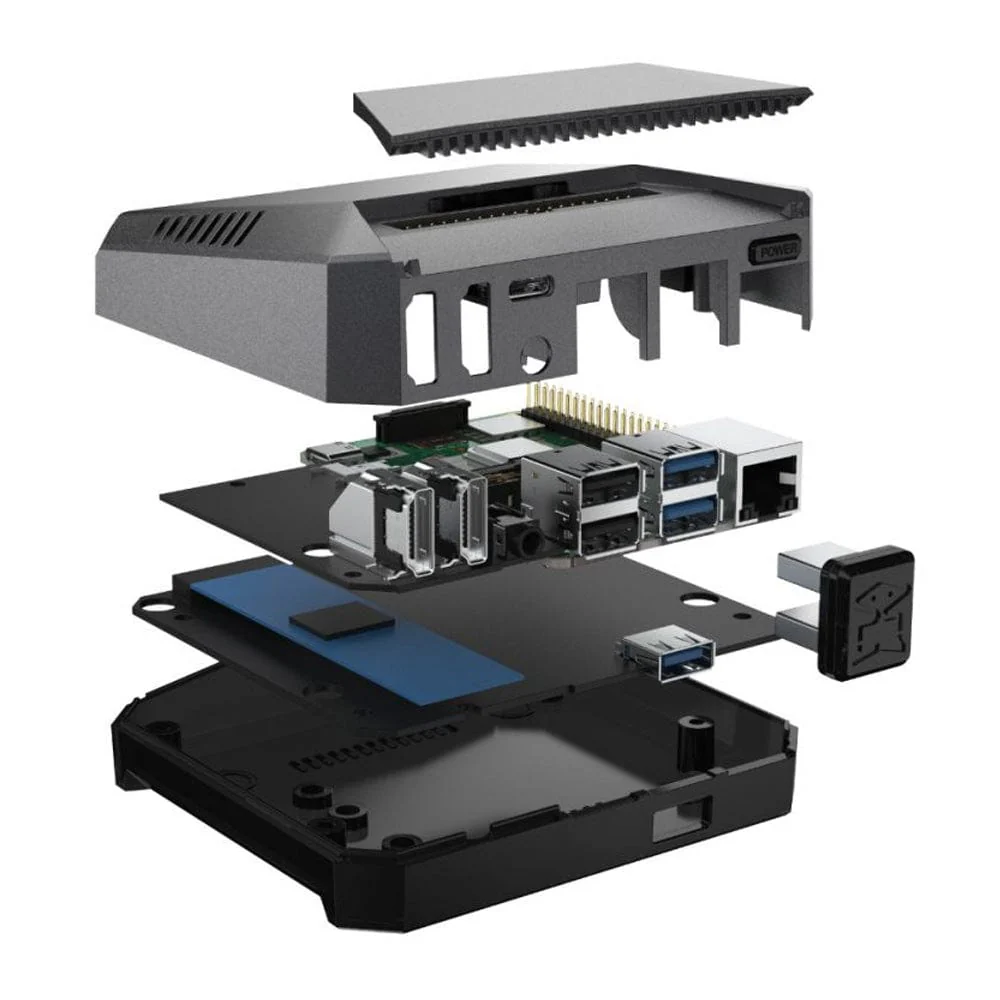

Argon ONE M.2 Raspberry Pi 4 Case

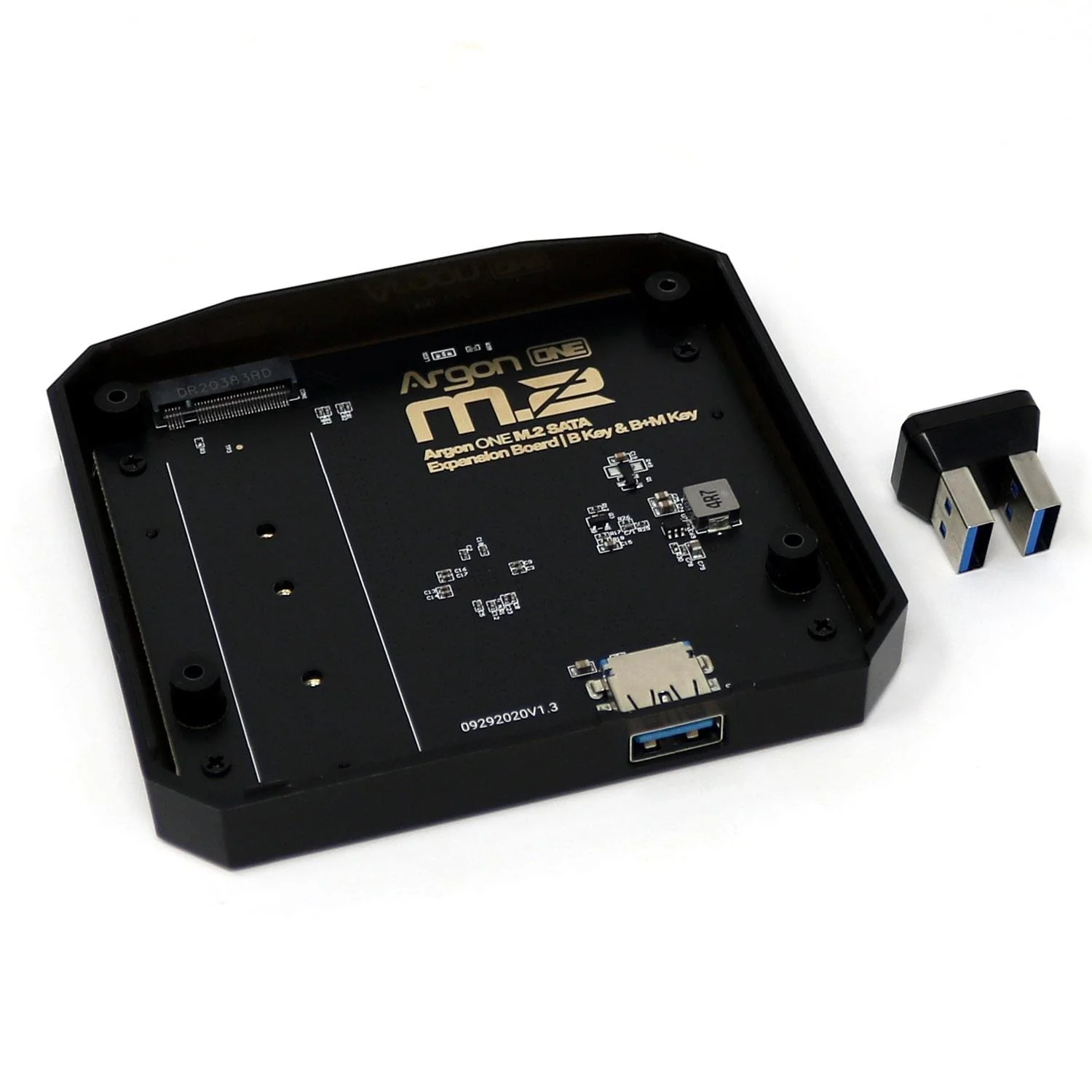

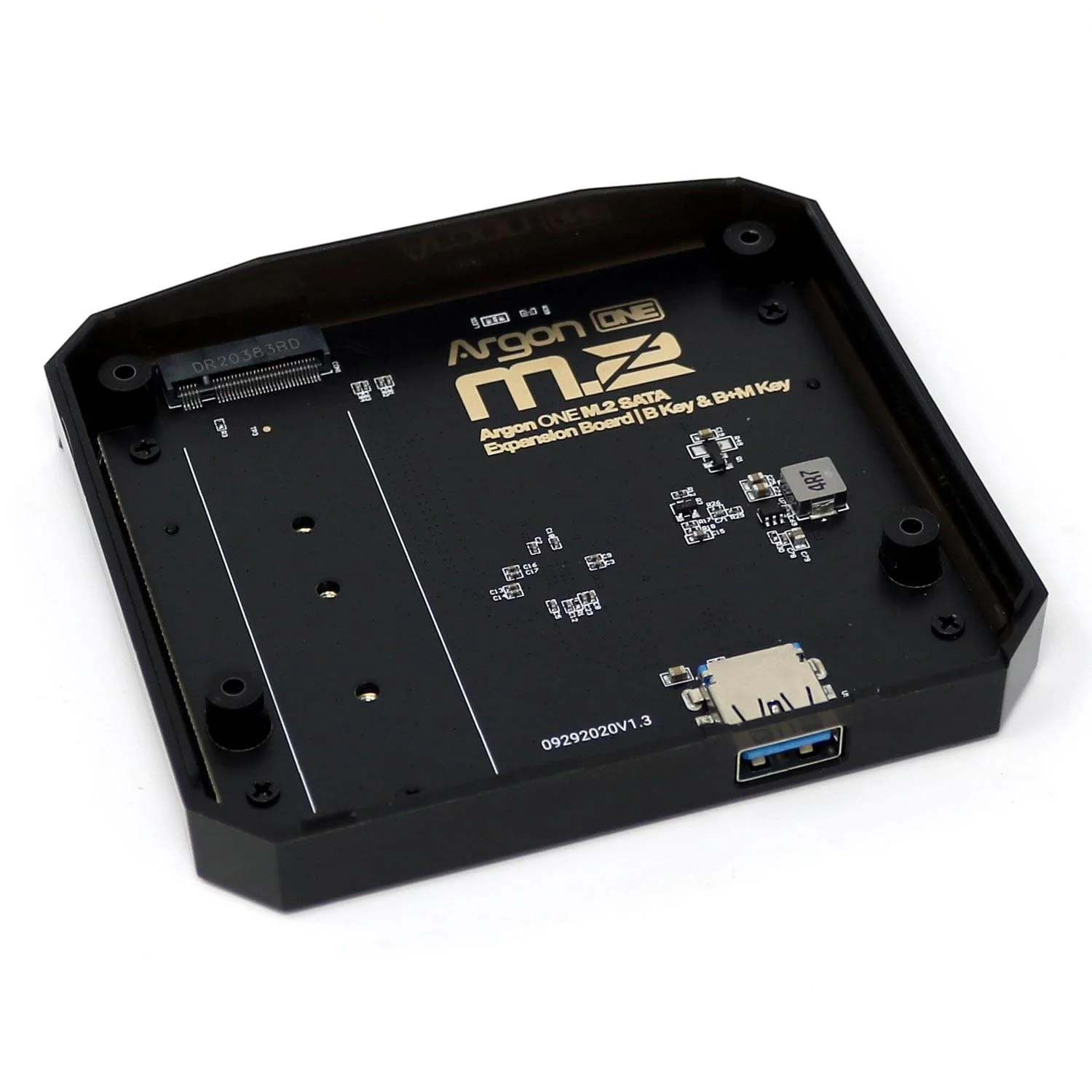

M.2 SATA Expansion Board for Argon ONE V2

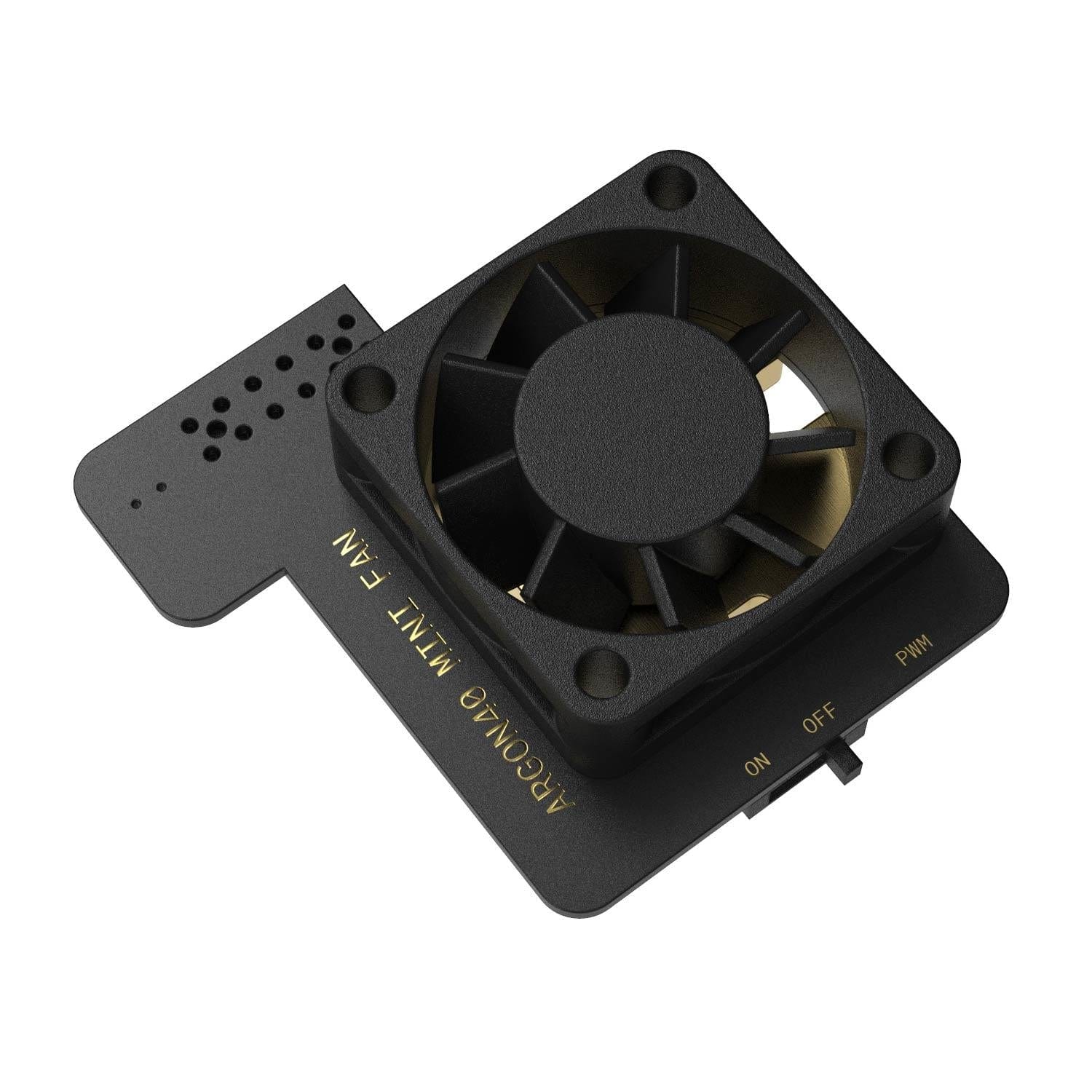

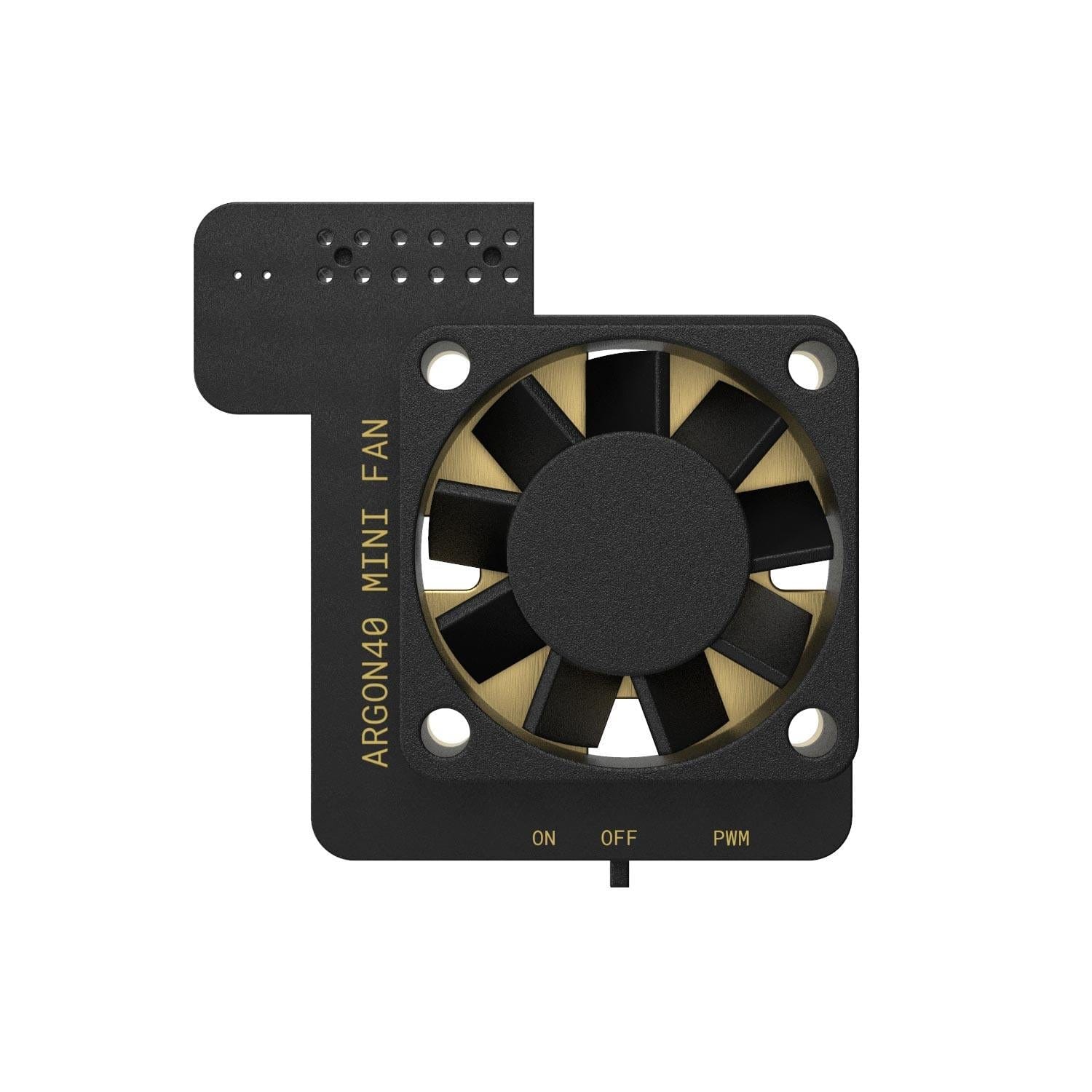

Argon Mini Fan

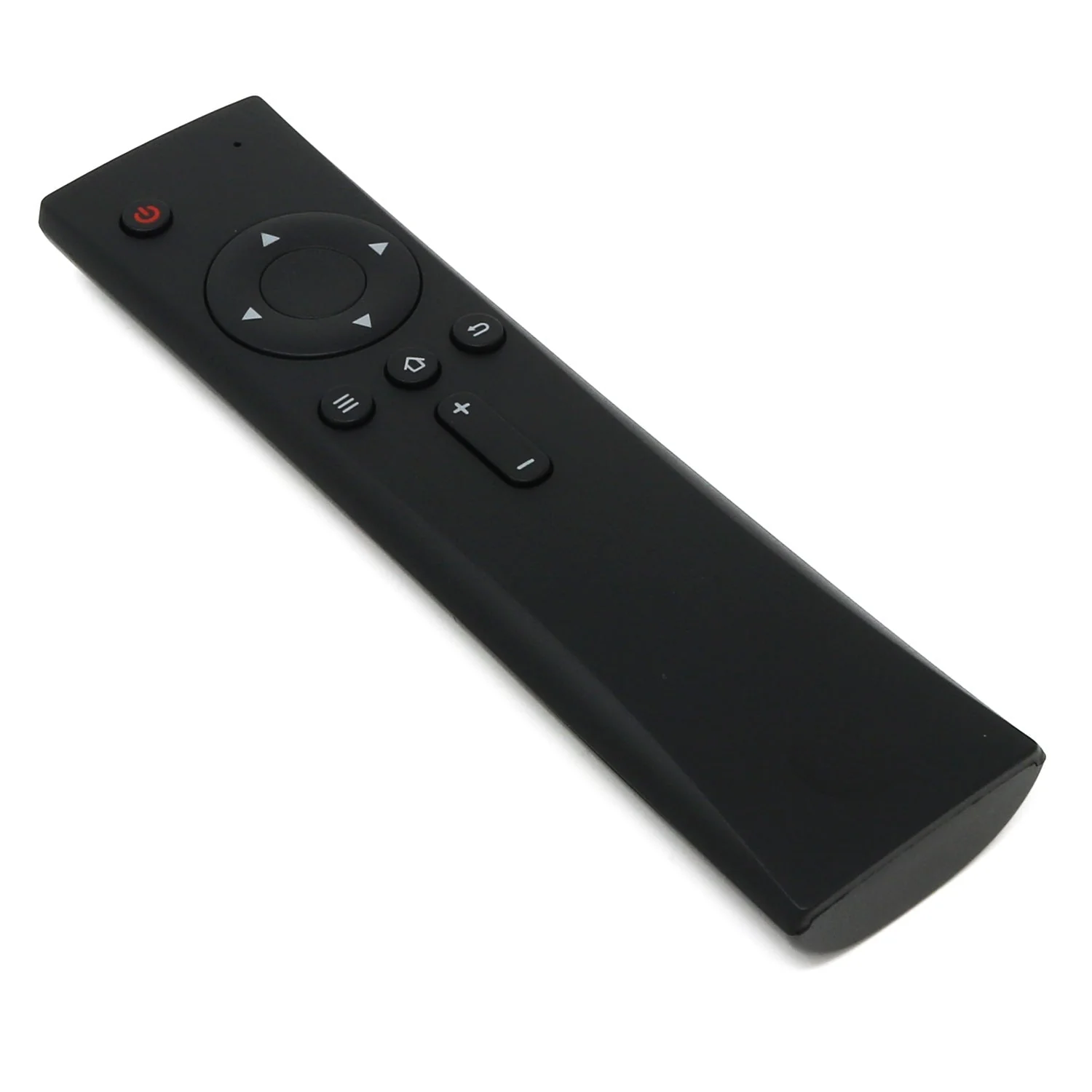

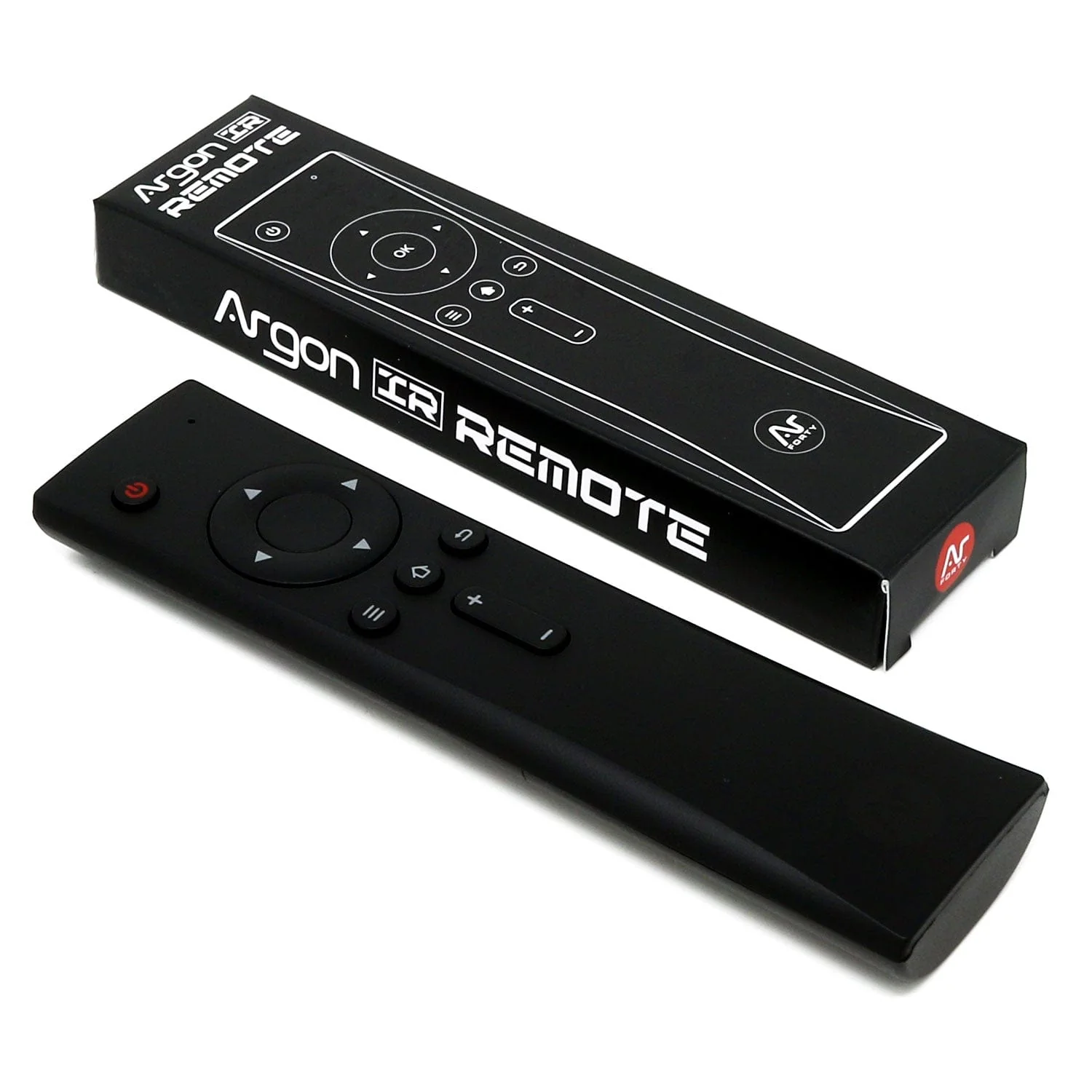

Argon IR Remote

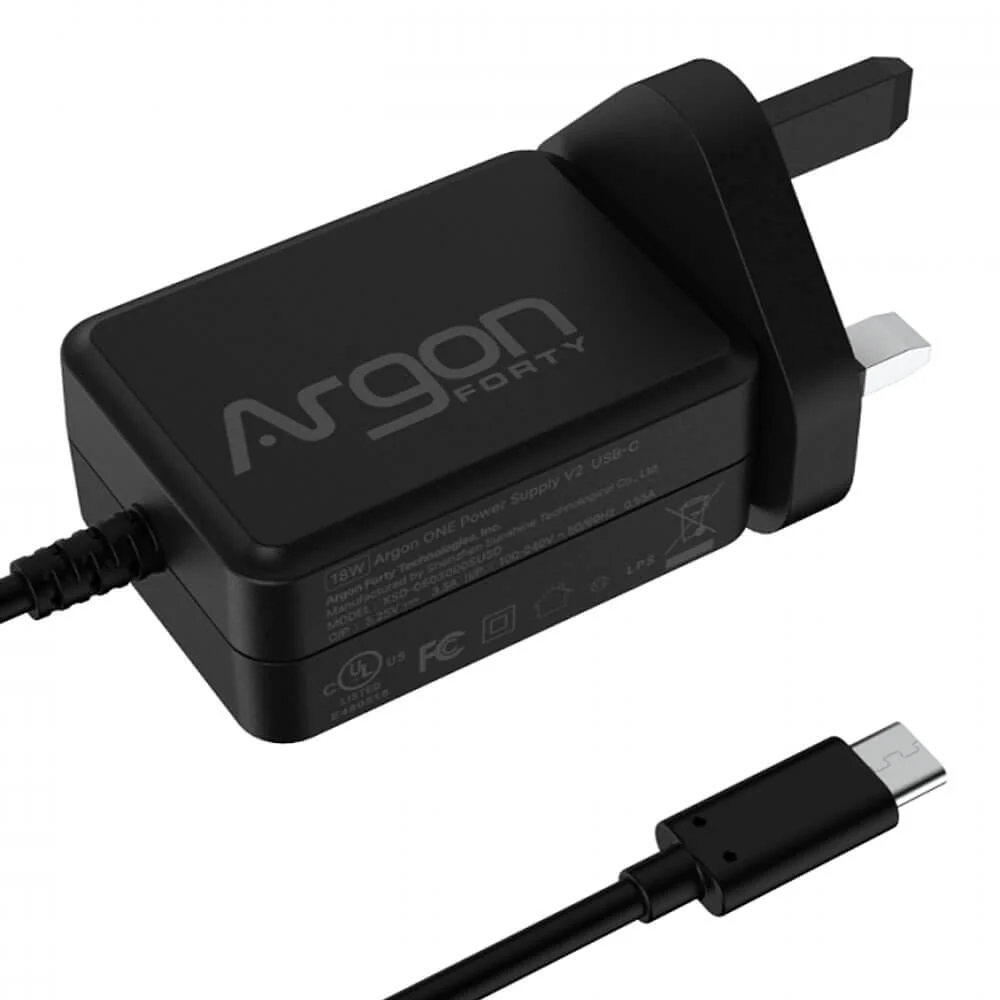

Argon ONE Raspberry Pi 4 UK Power Supply (5.25V 3.5A)

Argon EON - NAS Enclosure for Raspberry Pi 4

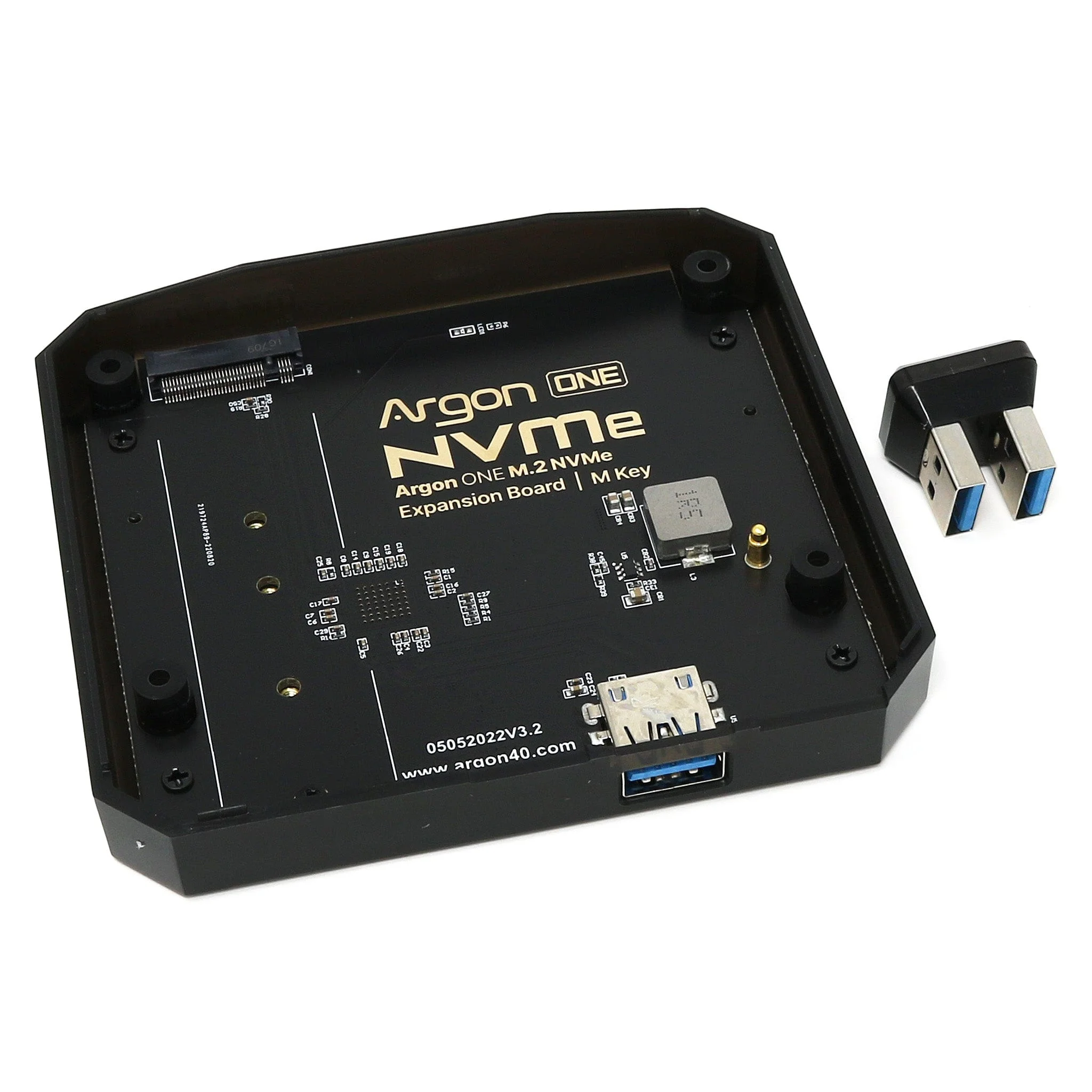

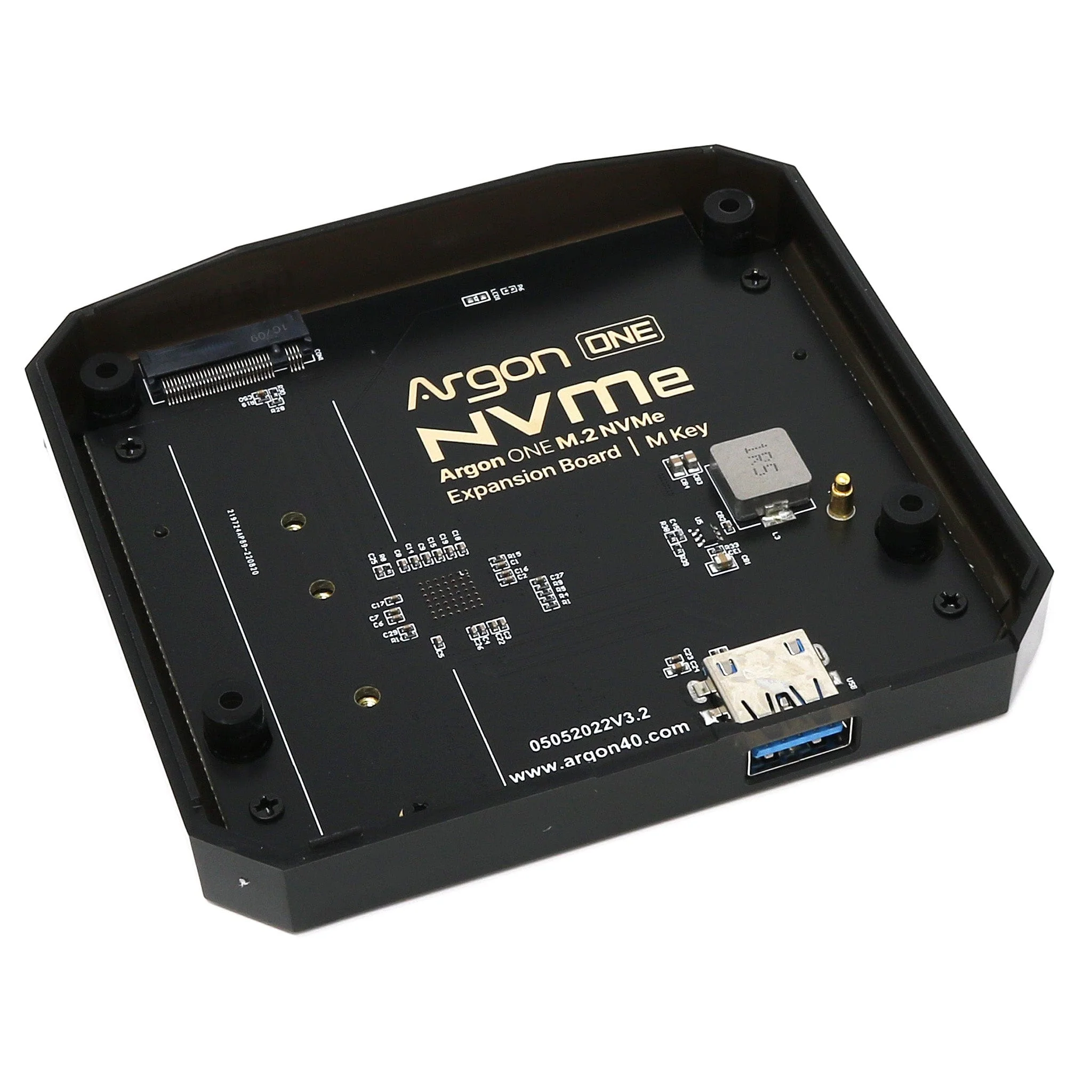

M.2 NVMe Expansion Board for Argon ONE V2

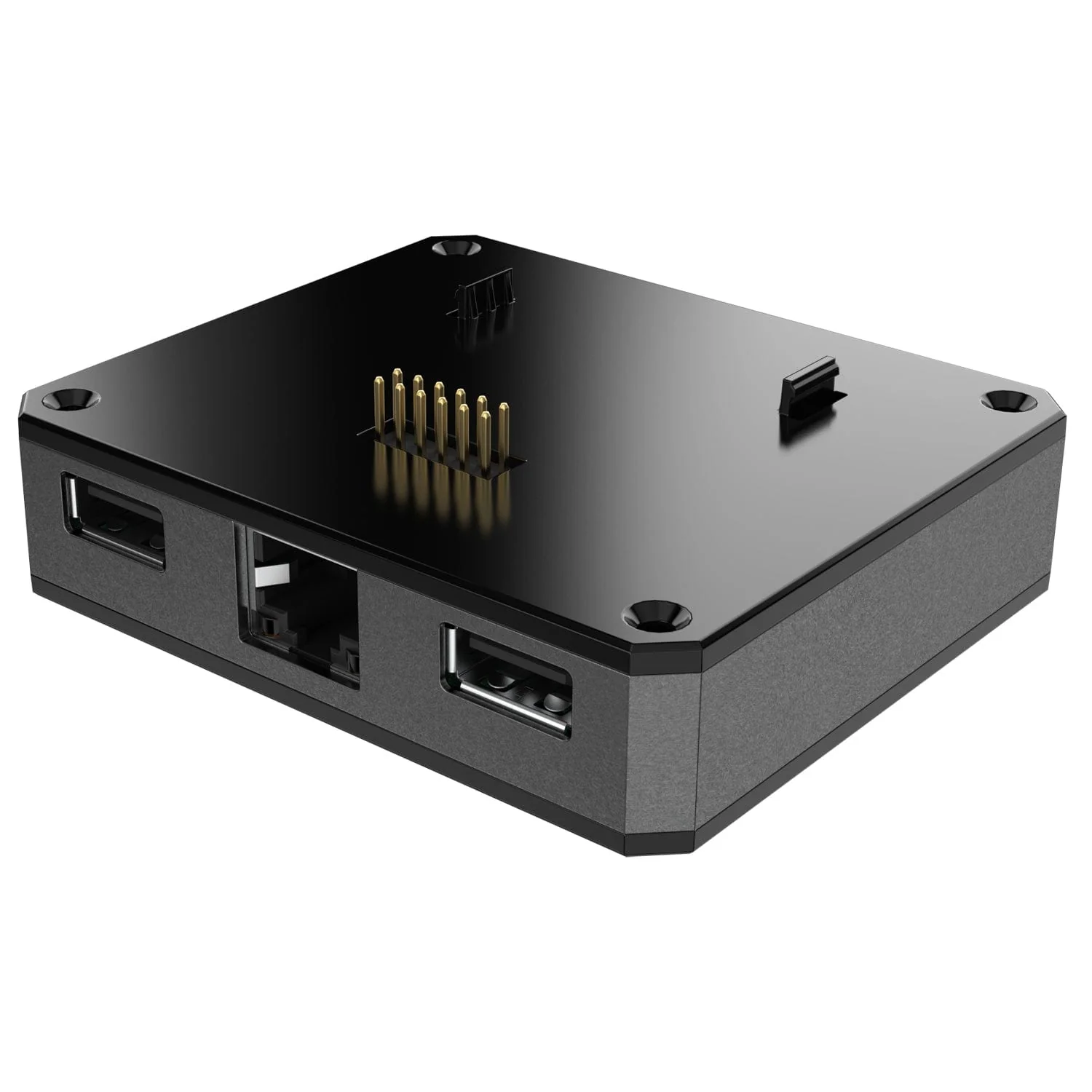

Argon POD USB LAN Module

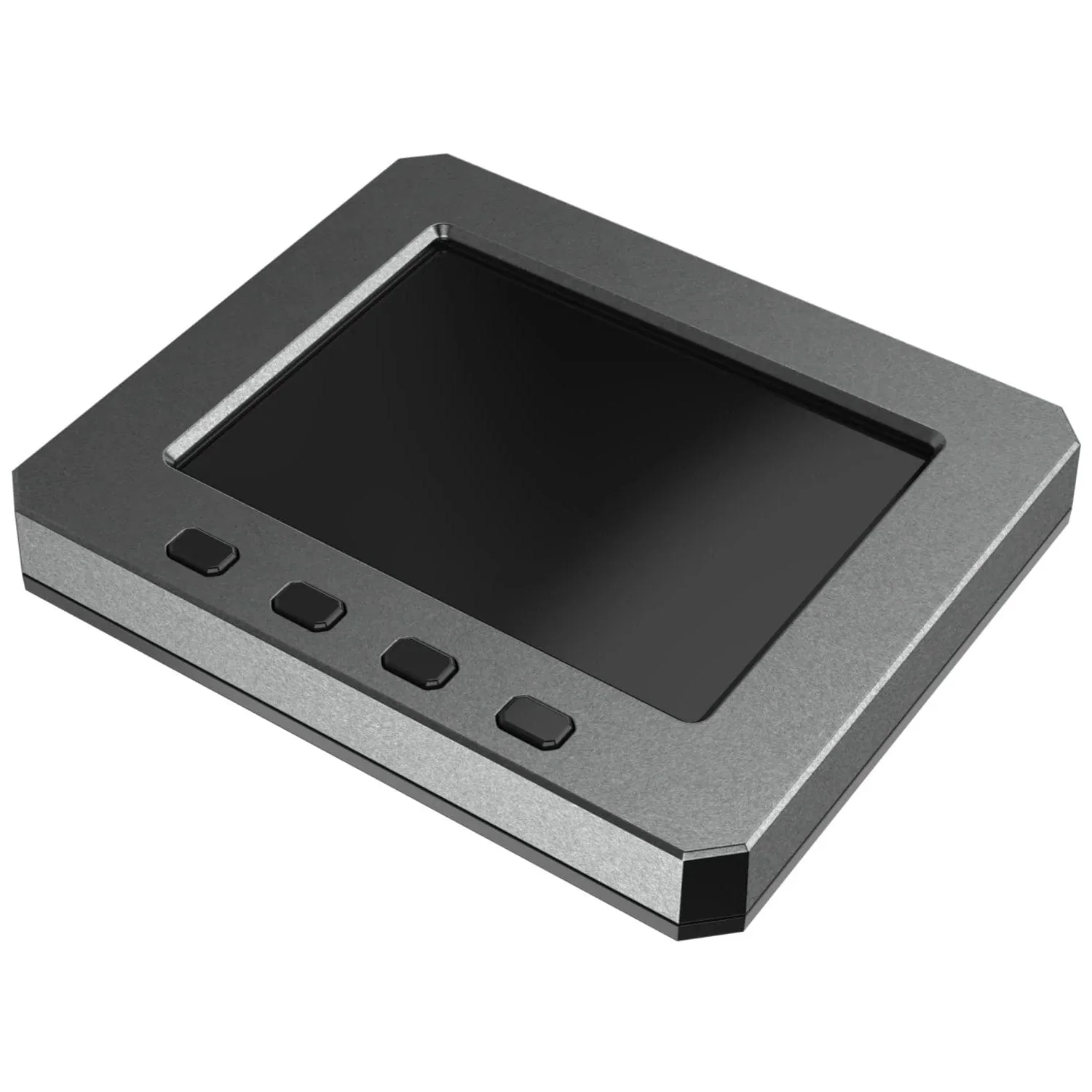

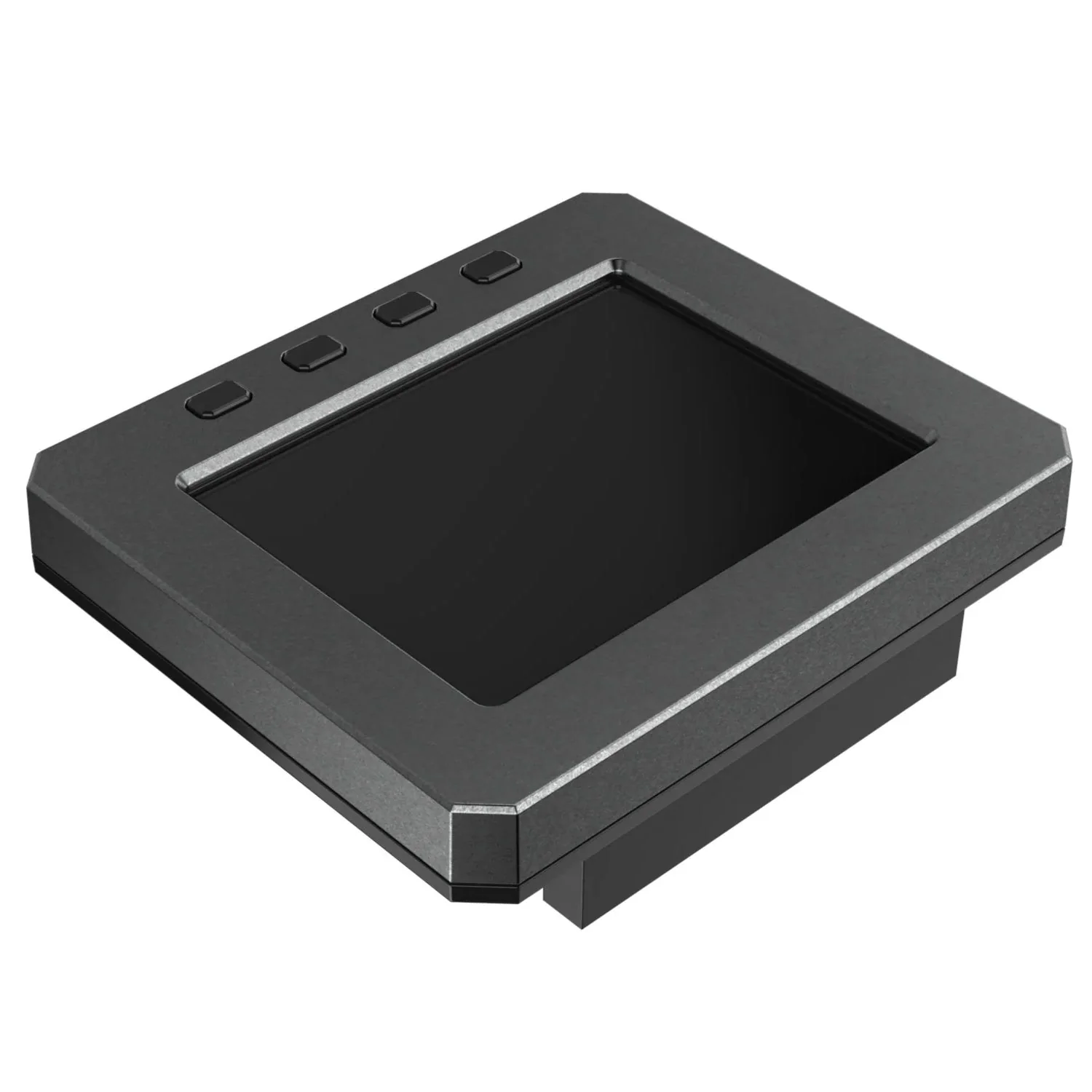

Argon POD 2.8" Capacitive Touch Display Module
